0700L 7" Touchscreen Monitor Non-Touch (Discontinued)
Overview
The Elo 0700L 7-inch widescreen monitor is designed to serve as a multi-functional unit with cost and space savings in mind. Whether used as a stand-alone or secondary display attached to a larger device, the 0700L can be applied to any environment, especially where a small screen is required. The 0700L is available with a non-touch display.

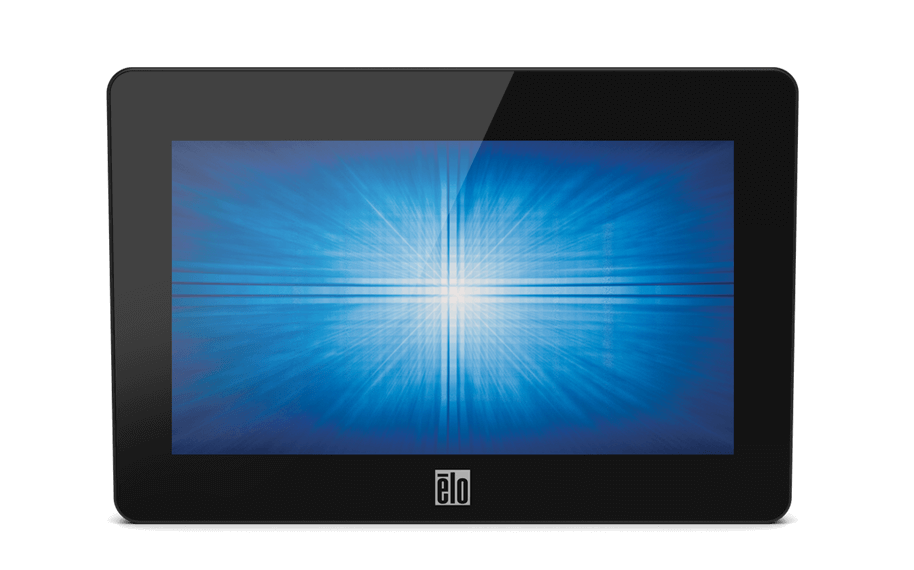

Streamlined functionality.The 7-inch display utilizes DisplayLink™ technology that allows for power, video and touch signal through a single USB cable. |
 |
 |

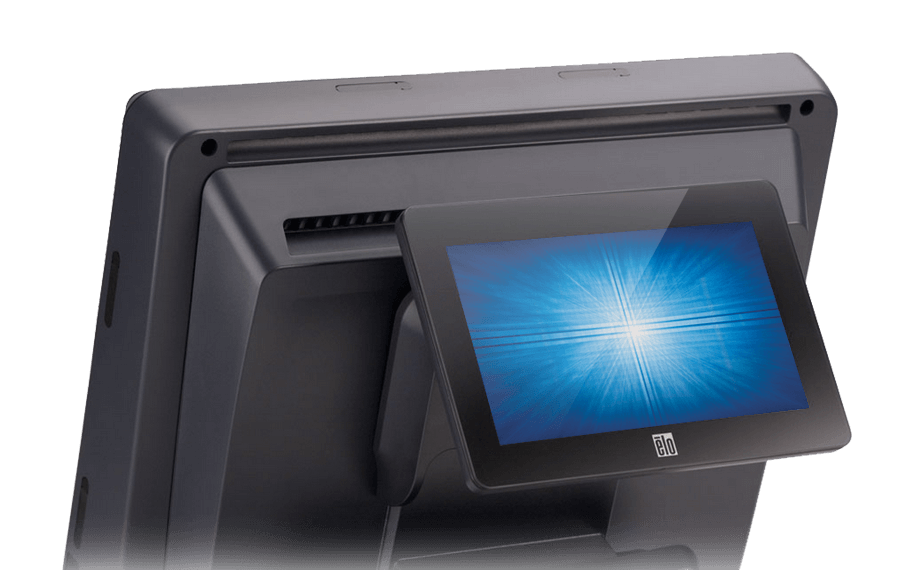

Endless options.The small format 0700L can serve as a second customer-facing display in retail environments, a main display for applications requiring a small screen or an end-cap shelf display, or as a personal gaming screen that is part of a larger interactive gaming table. |

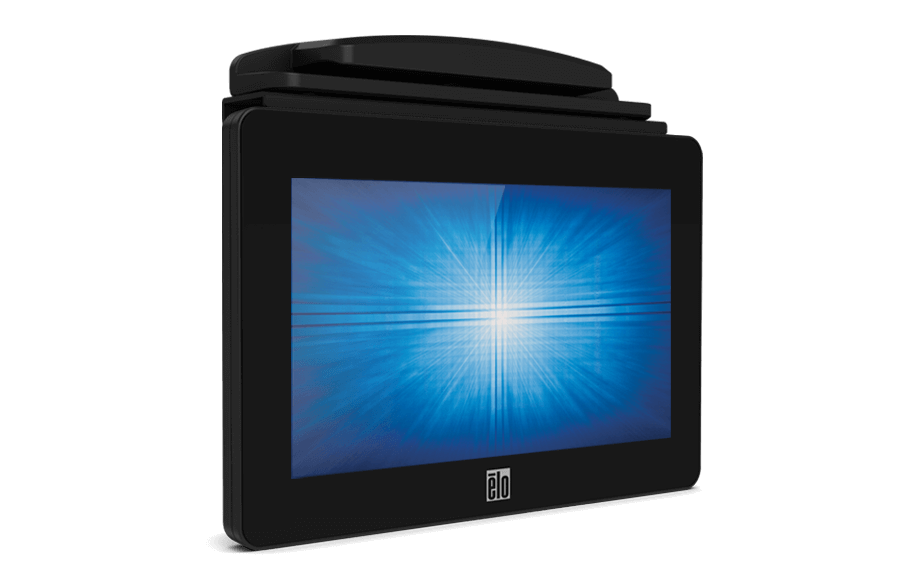

Retail ready.The optional web camera or three-track magnetic stripe reader (MSR), programmable to either HID or keyboard emulation (USB only) offer easy installation by the user, providing an elegant, integrated solution. |
 |
 |

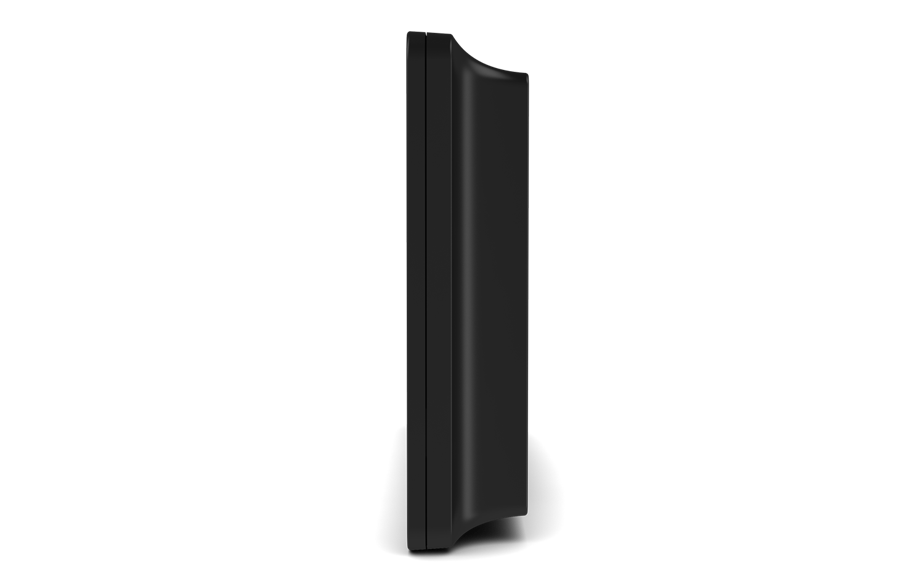

Commercial grade.The 7-inch monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
Other features.
- DisplayLink™ technology allows for power, video and touch signal through only one USB cable
- USB cable
- Up to 800 x 480 60 Hz
- VESA mounting option
- Factory sealed against dirt and dust
- Worldwide agency approvals
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
Non-Touch (Worldwide) - E807955
Enclosure Color
Black
Touch Technology & Capacity
Non-Touch
Diagonal Size
7'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
6.0" x 3.4" / 154mm x 87mm
Resolution
800 x 480 60 Hz
Viewing Angle
Horizontal: ±70° or 140° total / Vertical: -60°/+50° or 110° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 200 nits
Non-Touch: 180 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
500:1
Speakers
No Speakers
Input Video Format
USB on Mini-B receptacle
Input Video Frequency
Horizontal: 30KHz
Vertical: 60 HzPower Consumption (Typical)
Monitor Only
ON: 4.5W
SLEEP: 2.59W
OFF (backlight off): 2.59WPower Supply
DC (through USB)
Input Voltage
Monitor: 5 V ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
Monitor Dimensions (without Stand)
7.4" x 4.9" x 1.2" / 189mm x 126mm x 31mm
Shipping Box Dimensions
8.5" x 6.4" x 3.1" / 225mm x 165mm x 80mm
Weight (without stand)
1.3 lb / 0.59 kg
Weight (Packaged)
1.9 lb / 0.87 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F)
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
MTBF
50,000 hours demonstrated
Mounting Options

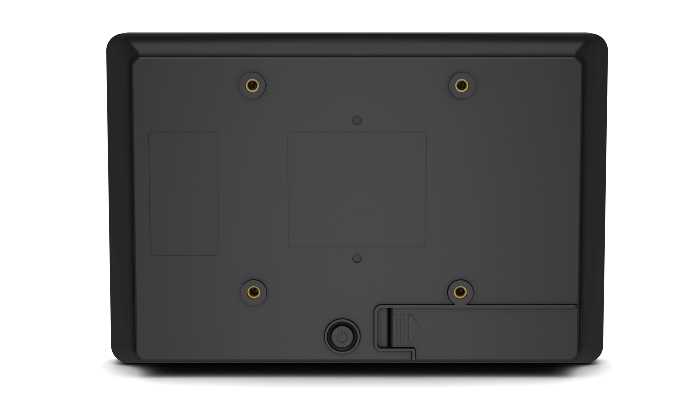

VESA 4-hole 75mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
UL, cUL, FCC, IC, CE, VCCI, KCC, CoC, CB, RoHS, RCM, WEEE, BSMI
What's in the Box
USB Mini-B receptacle, User Manual CD, Quick Install Guide
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E039290
Stands, Mounts & Kits
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Desktop Stand - Elo p/n: E548382
Bracket Kit for MSR or Webcam - Elo p/n: E412148
Mounting Bracket for Display compatible with B- and C-Series Touchcomputers - Elo p/n: E750095
Mounting Bracket for Display compatible with D-Series Touchcomputer - Elo p/n: E835074
Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
Cable Kit (2.5 Meter) Y-Cable for 0700L - Elo p/n: E075614
