1215L 12.1" Touchscreen Monitor (Discontinued June 2017)
Overview

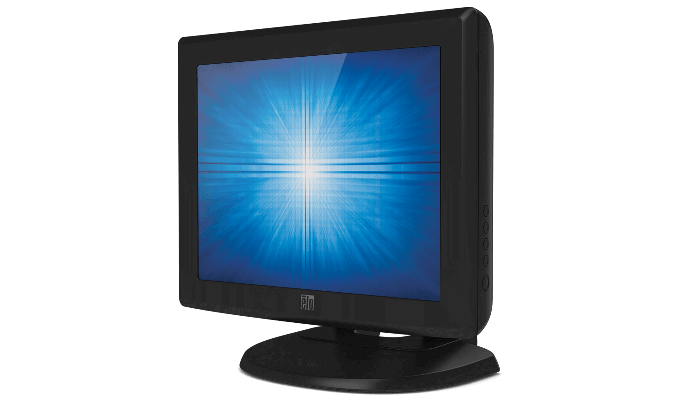

The Elo 1215L 12-inch standard format touchscreen monitor is designed for touch with proven Elo expertise and reliability built in. Aimed at resolving the constant flux with terminals in the retail POS and hospitality markets, the compact 1215L was developed to offer longer-lasting product availability as the design and tooling are controlled by Elo specifications. Elo touchscreen monitors offer the most cost-effective touch solutions for system integrators and VARs.
Flexible mounting.The Elo 1215L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |
 |
 |
Integrated touch.The 1215L touchscreen monitor is available with two touch technology options. Both offer a sleek bezel design with responsive single touch capability. AccuTouch® Five-Wire Resistive technology, the most widely used for retail applications, supports touch sensitivity for fingernails, gloves, credit cards, or any stylus enabling you to capture signatures or touch with precision. IntelliTouch® surface acoustic wave (SAW) delivers superior image quality and support for finger or glove touch modes. |
Commercial grade.The 12-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
 |
Other features.
- Small footprint with a 12-inch LCD
- Economical and reliable
- Up to 800 x 600 resolution at 75 Hz
- Touchscreen sealed against dirt, dust and liquids
- Dual serial/USB interface

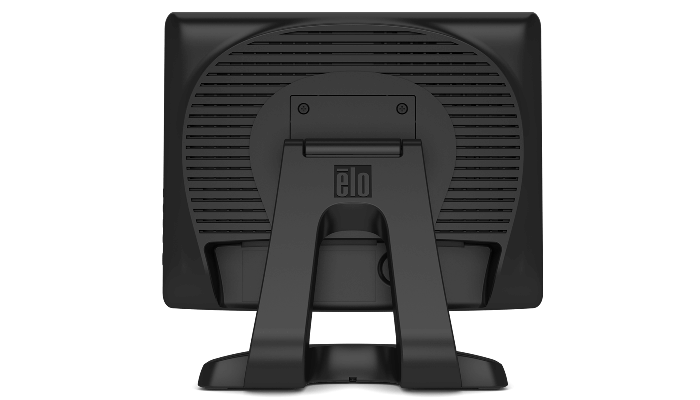

- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security

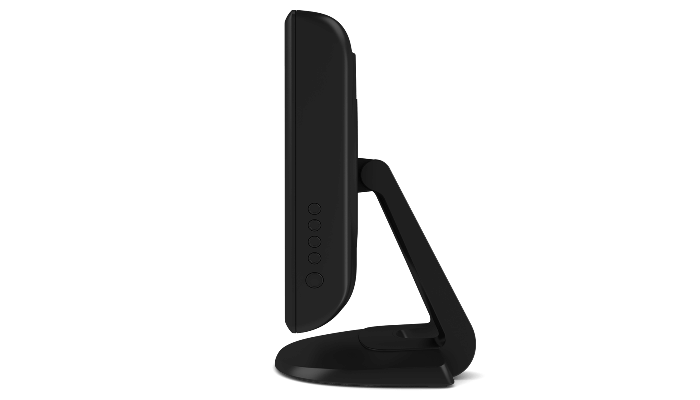

- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E991639
AccuTouch (Worldwide) - E432532
AccuTouch (China) - E109921
Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
12.1'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
9.7" x 7.3" / 246mm x 185mm
Resolution
800 x 600 at 60 Hz
Other Supported Resolutions
800 x 600 at 56, 60, 72 or 75 Hz
640 x 480 at 60, 66 Hz, 72 or 75 HzViewing Angle
Horizontal: ±70° or 140° total / Vertical: ±50° or 100° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 200 nits
AccuTouch: 164 nits
IntelliTouch: 184 nitsResponse Time-total (typical)
35 msec
Contrast Ratio
500:1
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 85-265 VAC, 47–63 Hz / DC: 12.0 V ± 0.75V
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz
Power Consumption (Typical)
16W
Speakers
No Speakers
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, recall default, RGB (color temp), OSD exit, clock, phase, sharpness, OSD H/V position, OSD time, auto adjust, input select
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsMonitor Dimensions (with Stand)
11.9" x 6.6" x 11.3" / 301mm x 168mm x 286mm
Shipping Box Dimensions
14.77" x 10.24" x 14.38" / 375mm x 260mm x 365mm
Weight (Unpackaged)
8.2lb / 3.7 kg
Weight (Packaged)
13.6 lb / 6.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
UL, cUL, CE, FCC, IC, VCCI, RCM Class B, TUV- Bauart
Power Cables
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.
What's in the Box
QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord(s), USB cable
Replacement DC Power Supply
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.
AC Power Cable
AC power cables for power brick are also available at additional cost:
United States: E042259
Europe: E690013
United Kingdom: E235317Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
