1229L 12" Touchscreen Monitor (Discontinued August 2009)
How to Buy

Overview

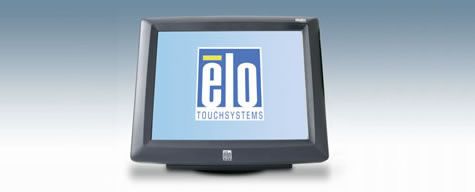

The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.

Other features.
  • Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
  • "Designed for touch" features such as a stable tilt stand
  • Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology or Surface Capacitive Technology
  • Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
  • Optional rear-facing customer display
  • Optional biometric fingerprint recognition device
  • Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Dual serial/USB, Antiglare) - E742732
    AccuTouch (Serial, Antiglare) - E984449
    AccuTouch (Serial, Antiglare) - E015811
    AccuTouch (USB, Antiglare) - E607817
    AccuTouch (USB, Antiglare) - E518641
    AccuTouch (USB, Antiglare) - E263847
    AccuTouch (USB, Antiglare) - E187592
    AccuTouch (USB, Antiglare) - E927973
    IntelliTouch (Dual serial/USB, Antiglare) - E943243
    IntelliTouch (Serial, Antiglare) - E384663
    IntelliTouch (Serial, Antiglare) - E437198
    IntelliTouch (Serial, Antiglare) - E213793
    IntelliTouch (USB, Antiglare) - E193472
    IntelliTouch (USB, Antiglare) - E329070
    IntelliTouch (USB, Antiglare) - E811391
    IntelliTouch (USB, Antiglare) - E948271
    IntelliTouch (USB, Antiglare) - E907330
    IntelliTouch (USB, Antiglare) - E488431
    IntelliTouch (USB, Antiglare) - E363364
    IntelliTouch (USB, Antiglare) - E737600
    Surface capacitive (Dual serial/USB, Antiglare) - E118276
    Surface capacitive (USB, Antiglare) - E826528

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Surface Capacitive (SCAP) - Single Touch

    Diagonal Size

    12.1'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    9.7" x 7.3" / 246 mm x 185 mm

    Resolution

    800 x 600 at 60 Hz

    Other Supported Resolutions

    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 350 nits
    AccuTouch: 287 nits
    IntelliTouch: 322 nits
    Surface capacitive: 294 nits

    Response Time-total (typical)

    45 msec

    Contrast Ratio

    450:1

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Touch Interface

    Dual serial/USB: E742732, E943243, E118276
    Serial: E984449, E015811, E384663, E437198, E213793
    USB: E607817, E518641, E263847, E187592, E927973, E193472, E329070, E811391, E948271, E907330, E488431, E363364, E737600, E826528

    Power Supply

    External DC (power brick)

    Input Voltage

    DC: 12 VDC at 4.0 amps max.

    Input Connector

    DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz

    Power Consumption (Typical)

    Monitor: 20 W
    VFD customer display: 3 W
    USB fingerprint reader: 0.5 W
    USB magnetic stripe reader: 0.5 W
    2 USB external ports power when loaded: 5 W
    Total with all possible accessories: 29 W

    Speakers

    Two watt/channel speakers located in display head

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Monitor Dimensions (with Stand)

    13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm

    Shipping Box Dimensions

    18.50" x 18.50" x 13.00" / 470mm x 470mm x 330mm

    Weight (with stand)

    11.9 lbs / 5.4 kg

    Shipping Weight (With stand)

    19.8 lbs / 9.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Stand Options

    Tilt, removable

    Mounting Options

    75 mm VESA mount
    Optional stability plate

    Other Features

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Backlight lamp life

    Typical 50,000 hours to half brightness

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick

    Power Cables

    A North American power cable and a European power cable are included.

    For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.

    Replacement DC Power Supply

    Elo p/n: E137360, available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability - Elo p/n: C41696-000, available at additional cost.
