1229L 12" Touchscreen Monitor (Discontinued July 2008)
How to Buy

Overview

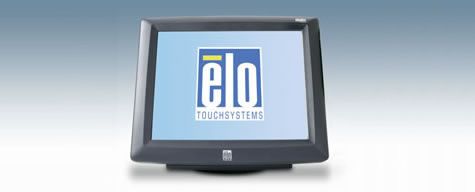

The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.

Other features.
  • Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
  • "Designed for touch" features such as a stable tilt base
  • Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology, Surface Capacitive Technology or CarrollTouch Infrared Technology
  • Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
  • Optional rear-facing customer display
  • Optional biometric fingerprint recognition device
  • Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on base bottom for tabletop security
  • Base removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    CarrollTouch (Serial, Antiglare, Worldwide) - C45157-000
    CarrollTouch (Dual serial/USB, Antiglare, Worldwide) - E956597
    CarrollTouch (Serial, Antiglare, Worldwide) - E247923
    CarrollTouch (USB, Antiglare, Worldwide) - E892505
    CarrollTouch (Serial, Antiglare, Worldwide) - E215701
    CarrollTouch (USB, Antiglare, Worldwide) - E065290
    CarrollTouch (USB, Antiglare, Worldwide) - E595314
    CarrollTouch (USB, Antiglare, Worldwide) - E843380
    CarrollTouch (Serial, Antiglare, Worldwide) - E840031
    CarrollTouch (USB, Antiglare, Worldwide) - E055715
    CarrollTouch (USB, Antiglare, Worldwide) - E695598
    CarrollTouch (USB, Antiglare, Worldwide) - E436880
    CarrollTouch (USB, Antiglare, Worldwide) - E007064

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    CarrollTouch Infrared Technology

    Diagonal Size

    12.1'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    9.69" x 7.27" / 246 mm x 184.5 mm

    Resolution

    800 x 600 at 60 Hz

    Other Supported Resolutions

    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total

    Number of Colors

    16.2 million with dithering (6 bit)

    Brightness (typical)

    LCD panel: 350 nits
    CarrollTouch: 322 nits

    Response Time-total (typical)

    45 msec

    Contrast Ratio

    450:1

    Touch Interface

    Dual serial/USB: E956597
    Serial: C45157-000, E247923, E215701, E840031
    USB: E892505, E065290, E595314, E843380, E055715, E695598, E436880, E007064

    On Screen Display

    OSD lockouts for power and user controls

    User Controls

    OSD control menu: menu, up, down, select, power
    OSD controls: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
    OSD languages: English, French, German, Spanish, Japanese
    OSD disable/enable: power, OSD menu

    Speakers

    Two watt/channel speakers located in display head

    Input Video Format

    RGB analog

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Consumption (Typical)

    Monitor: 20 W typical, 25 W max.
    VFD customer display: 3 W typical, 6 W max.
    USB fingerprint reader: 0.5 W typical, 1 W max.
    USB magnetic stripe reader: 0.5 W typical, 1 W max.
    2 USB external ports power when loaded: 5 W typical, 7 W max.
    Total with all possible accessories: 29 W typical, 40 W max.

    Power Supply

    External brick

    Input Voltage

    100-240 VAC, 50-60 Hz

    Input Frequency

    Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz

    Monitor Dimensions (with Stand)

    13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm

    Weight (Unpackaged)

    11.9 lbs / 5.4 kg

    Weight (Packaged)

    19.8 lbs / 9 kg

    Operating Temperature

    0°C to 40°C

    Storage Temperature

    -20°C to 60°C

    Humidity

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Removable base
    Optional stability plate

    Other Features

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Warranty

    3-year

    Backlight lamp life

    Min 50,000 hours to half brightness

    Regulatory approvals and declarations

    UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick

    Power Cables

    A North American power cable and a European power cable are included.

    For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.

    Optional Power Supply Brick

    Elo p/n: E137360, available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability. Elo p/n: C41696-000, available at additional cost.
