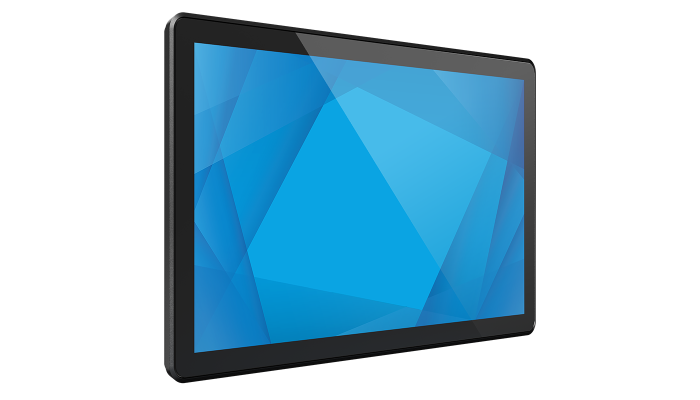

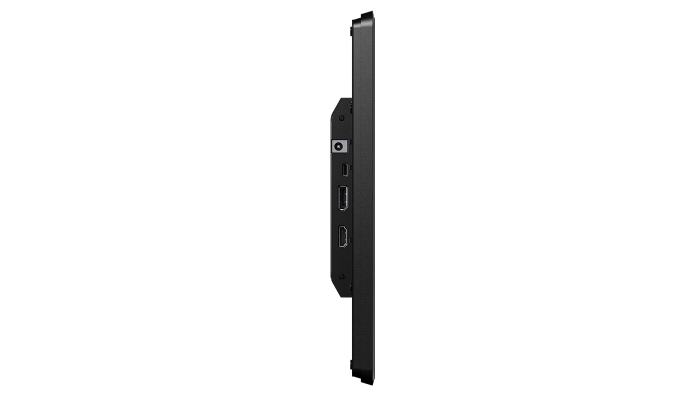

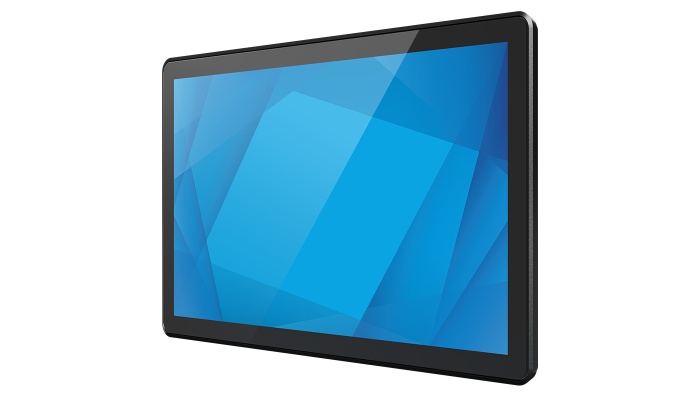

1564L 15-inch
Industrial‑Grade
Open Frame
Touch Display
Elo's 1564L 15-inch HD open-frame delivers a
brilliant, industrial-grade
touchscreen
monitor designed for easy
integration into enclosures. With
sleek, narrow borders and a
modern form factor,
the 1564L is well-suited
for industrial controls, HMI, warehouse
automation, gaming and more.
Brilliant, optically-bonded
TouchPro® PCAP display.
The 15-inch 1564L optically-bonded display offers an
enhanced, 10-touch
tablet-like experience with the durability, touch
performance and
premium
optics required for industrial and commercial
applications.
Enable power, video and touch
with a single USB‑C cable.
Durable, energy
efficient touchscreen.
UL62368 & IK08
compliance
Chemically-
strengthened
glass
Ready for
24/7
use
Wide operaing
voltage range
(12V‑24V)
Energy Star
8.0 certified
Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display
(OSD) controls –
Now you can use the touchscreen or the controls you are used
to on the rear
side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or
protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability.
With
touch thru technology, the display can be mounted behind a front layer
of glass up
to 6 mm or plastic up
to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 15-inch touchscreen monitor can be mounted in
landscape, portrait and
upward facing orientations, providing optimal
flexibility for integrating in
any
counter, kiosk or cabinet design. Whether
viewing up close or from a
distance, our
optically bonded display offers what
you need while
maintaining optimal clarity for
the viewing experience.
Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade
Android compute
engine that can easily connect to the display with a single
USB-C. Boasting a
small
footprint in both size and weight, the Elo Backpack can
secure inside any kiosk
with
the built-in VESA mount. Scaling Elo’s commercial
Android platform across
sizes and
form factors has never been easier.
Get peace of mind
with EloCare.℠
From advance unit replacement
to extended
warranties, EloCare
delivers service and support
from
the people who know your Elo
products best.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Quality that
is built to last.
We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.
Specifications
-
Technical
Part Number(s)
TouchPro PCAP - E971256
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru
TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.
Touch Interface
USB 2.0
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
On screen OSD with menu and power buttons on the back of the unit.
Supported Touch gestures include:
1. Call out the OSD menu.
2. lock/unlock the OSD button function.
3. lock/unlock the power button function.
Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerAspect Ratio
16:9
Active Area
13.55" x 7.62" / 344.16 mm x 193.59 mm
Resolution
1920 x 1080
Other Supported Resolutions
640x480 60Hz
720x400 70Hz
800x500 60Hz
800x600 56, 60Hz
1024x768 60Hz
1280x800 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 50Hz, 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 450 nits
TouchPro PCAP: 405 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
1000:1
Video_1
HDMI V1.4 Type A receptacle for HDMI input
DisplayPort V1.2 - Supports later versions of Display Port video input
USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues
Input Video Horizontal Sync frequency range: 30 – 80K KHz
Input Video Vertical Sync (frame rate) frequency range: 50-75HzPower
Option1:
External DC - Optional power brick (sold separately)
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input power signal specifications: 12V – 24V DC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Option 2:
USB Type-C Input range:
5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35AMaximum Operating Time
24/7
Power Consumption (Typical)
ON (Default - 80% Brightness): 9.36W
ON (Typical - 100% Brightness): 12.95W
SLEEP (monitor + adapter): 0.45W
OFF (monitor + adapter): 0.25WDimensions
14.76" x 8.83" x 1.24" / 375.0 mm x 224.4 mm x 31.6 mm
Shipping Box Dimensions
17.72" x 11.89" x 5.55" / 450 mm x 302 mm x 141 mm
Weight (Unpackaged)
4.91 lbs / 2.23 kg
Weight (Packaged)
9.09 lbs / 4.12 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
IPX1 for front side
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC
Europe CE, TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NoM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEECompliance
GLI 27 kV air / 8 kV contact ESD compliance
UL62368 ball-drop compliant
IK08 impact compliant
TUV Rheinland (Low Blue Light)
Power collection function via DDCCIEnergy Star
Energy Star 8.0

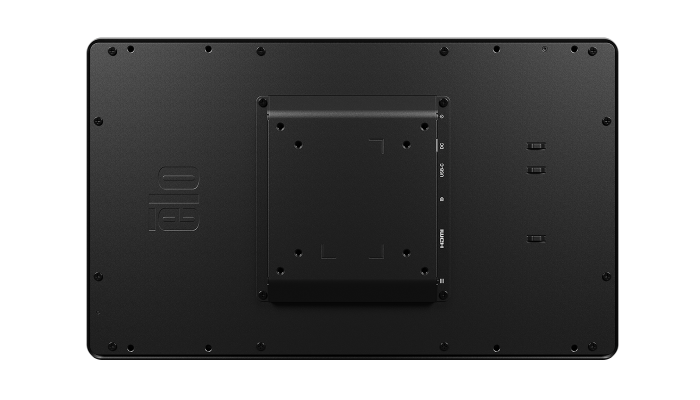

Mounting Options
75 mm and 100mm VESA mount
Mounting interface on all 4 sides
Flush mount with included brackets
See dimensional drawings for detailsWhat's in the Box
1564L
HDMI cable
Touch USB Cable (USB-A to USB-C)
Flush Mount Brackets w/Screws
Quick Install Guide
EEI LabelOptions / Peripherals / Upgrades
Cable Kit DVI-D to HDMI – Elo P/N: E538507
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Optional PCAP Stylus Pen - Elo P/N: E066148
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
