1502L 15" Touchscreen Monitor (Rev A - Replaced by new 1502L)
This version has been discontinued. Please see the replacement model - 1502L.
Overview

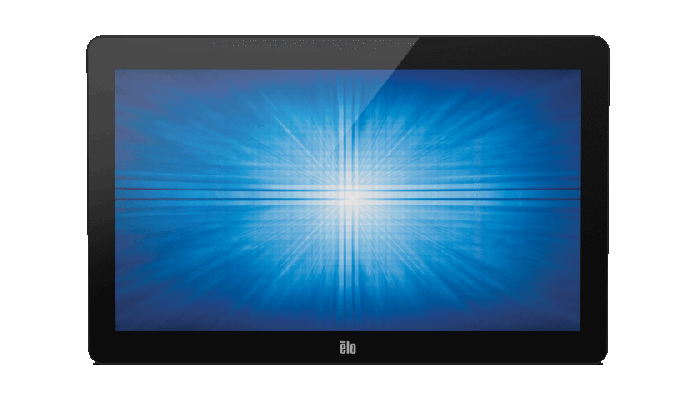

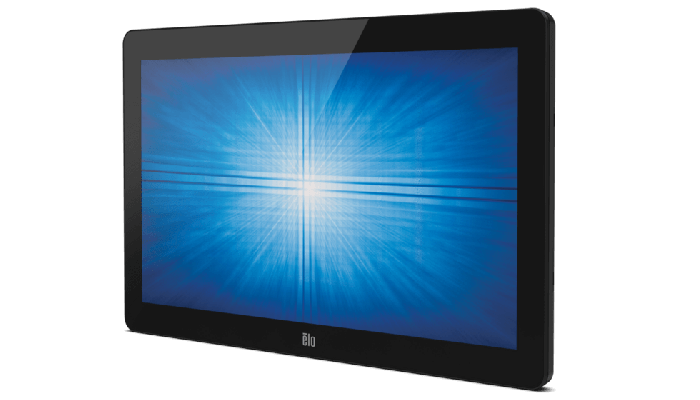

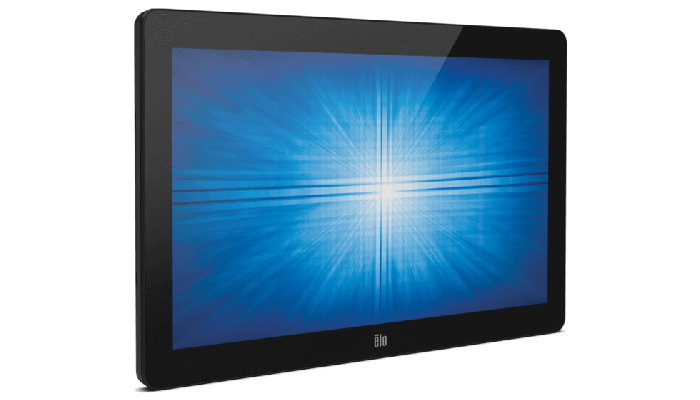

The Elo M-Series 1502L 15-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro® PCAP technology. The sleek, low-profile, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 1502L well suited for high traffic environments.
Installation flexibility.The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. |
 |
 |

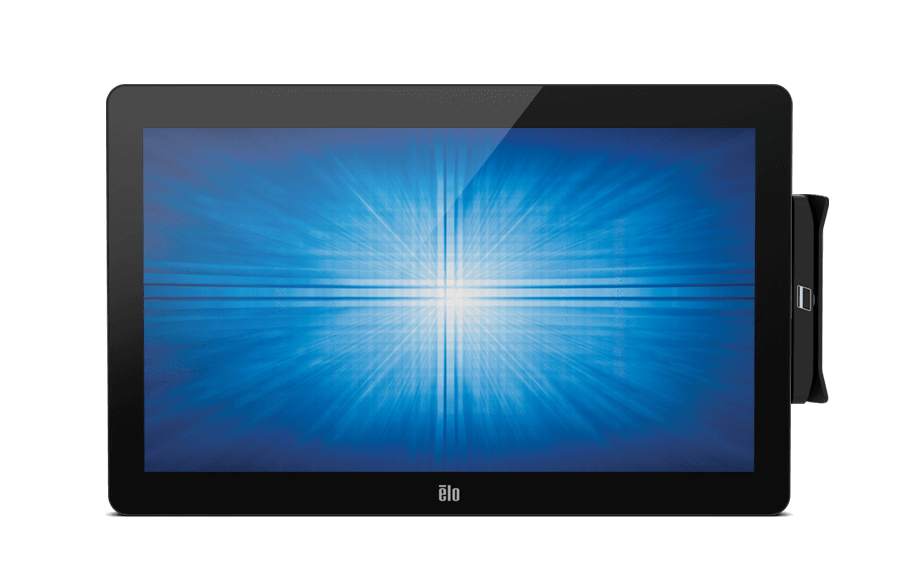

POS ready.The 1502L offers optional retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications. |

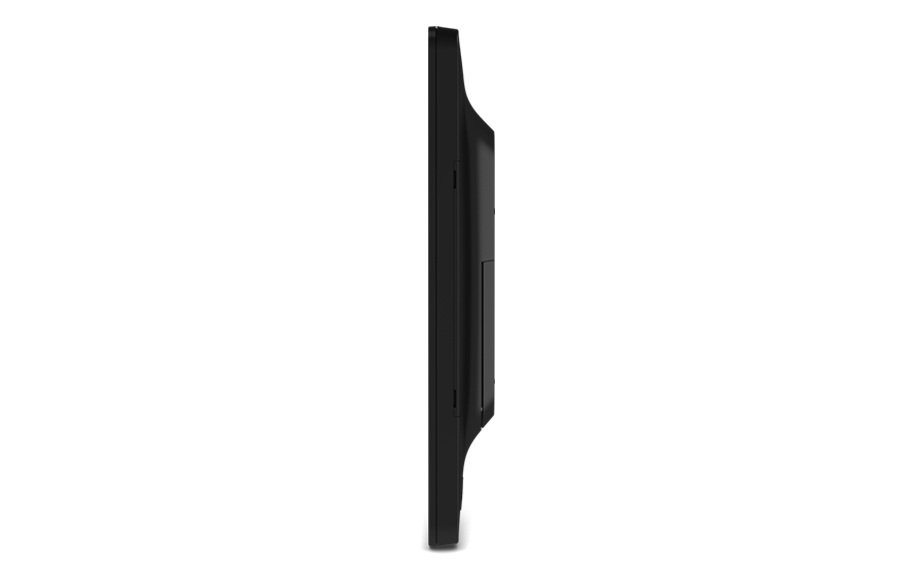

Commercial grade.The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
 |
Other features.
- Sleek and modern widescreen design with built-for-touch reliability
- Energy savings using LED technology
- Edge-to-edge glass display with anti-glare for retail interiors
- The full HD model (1920x1080) provides best of class resolution
- Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand
- Typical power consumption: 8.7W
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
PCAP Full HD (Worldwide) - E045538
Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)

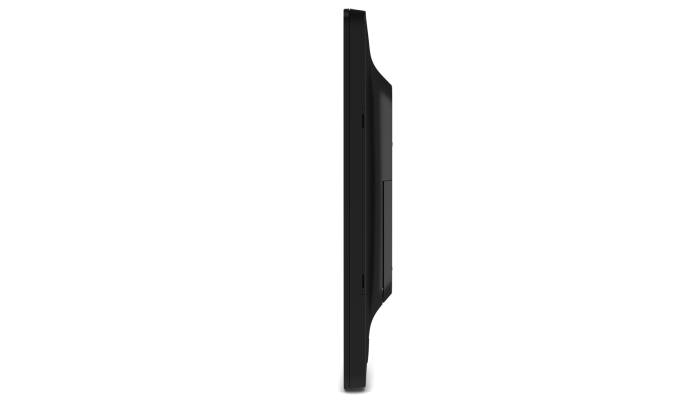

Monitor Thickness
1.29" / 33mm panel depth
Aspect Ratio
16:9
Active Area
13.59" x 7.66" / 345.2mm x 194.6mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 @ 60Hz; 640 x 400 @ 70Hz; 720 x 576 @ 50Hz; 720 x 400 @ 70Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 50, 60Hz; 1280 x 800 @ 60, 60RB Hz; 1280 x 960 @ 60Hz;1280 x 1024 @ 60Hz; 1360 x 768 @ 60Hz; 1366 x 768 @ 60Hz, 60Hz RB; 1440 x 900 @ 60Hz, 60Hz RB; 1680 x 1050 @ 60Hz, 60Hz RB; 1920 x 1080 @ 50, 60Hz
Viewing Angle
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Number of Colors
262,000
Brightness (typical)
LCD Panel: 300 nits
PCAP: 270 nitsResponse Time-total (typical)
35 ms
Contrast Ratio
700:1
HD Model Contrast Ratio
600:1
Touch Interface
USB
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerInput Video Format
Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Input Video Frequency
Horizontal: 31.5 - 60 KHz
Vertical: 60 HzPower Consumption (Typical)
Monitor +AC/DC adapter
ON: 8.7WInput Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor Dimensions (without Stand)
15.24" x 9.62" x 1.29" / 387mm x 244.4mm x 32.9mm
Shipping Box Dimensions
17.99" x 13.66" x 7.13" / 457mm x 347mm x 181mm
Weight (with stand)
6.72 lbs / 3.05 kg
Weight (without stand)
6.64 lbs / 3.0 kg
Weight (Packaged)
11.2 lbs / 5.08 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options

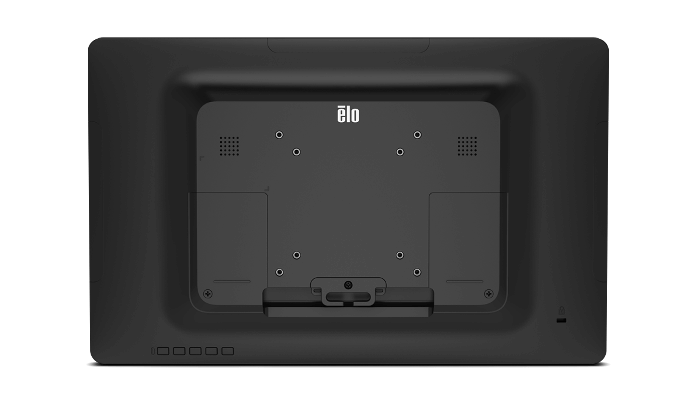

VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Other Features
Optional wall-, pole-, shelf mount kits available , see Accessories tab
2 x 2W internal speakers
Kensington lock slotWarranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
UL, cUL, FCC, IC, CE, VCCI, CCC
What's in the Box
QIG, Japan Class-B TM info sheet, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps
Cable Kit for Replacement Cables
Includes HDMI, mini-VGA to VGA, USB and audio. Part number E210789 for 1.8m cables. Part number E210606 for 3m cables.
Optional Power Supply Brick
Includes clipped-in plugs for US/Europe/UK. Part number E211174 for 1.8m power cable. Part number E210973 for 3m power cable.
Optional PCAP Stylus Pen
E066148
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002

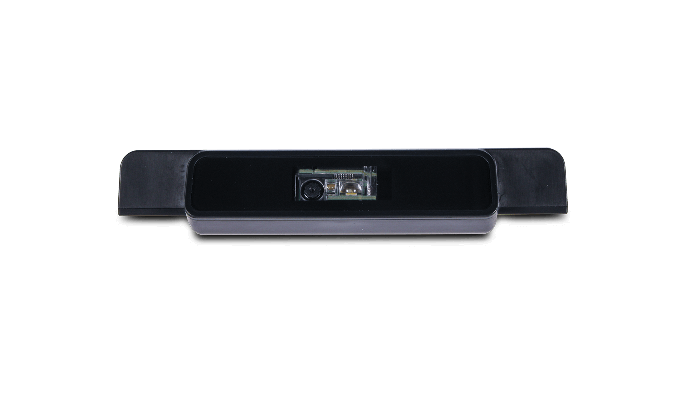

Barcode Reader (BCR) – Elo P/N: E093433
Customer Display (2x20 VFD) – Elo P/N: E001003
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789
3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606
Power Brick Kit – 1.8m Power Cable (includes clipped-in plugs for US, EU, UK, KR, AU and CH) - Elo P/N: E211174
Power Brick Kit – 3m Power Cable (includes clipped-in plugs for US, EU, UK, KR, AU and CH) - Elo P/N: E210973
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302
Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E763022
