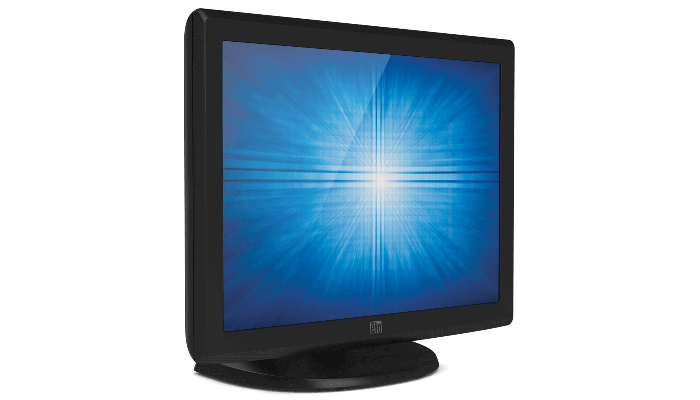

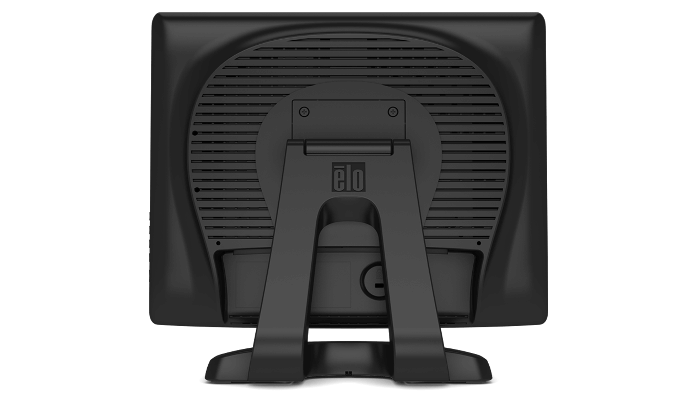

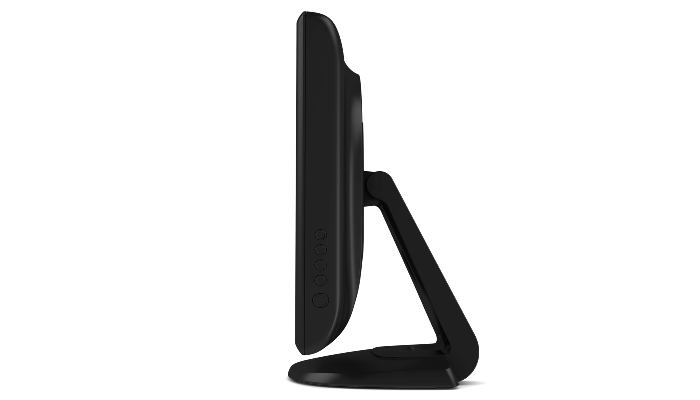

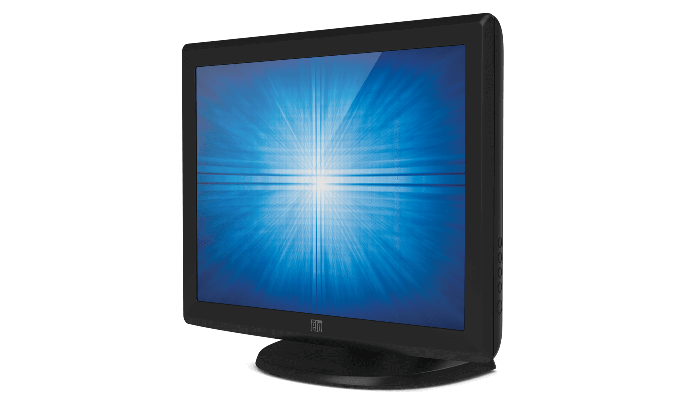

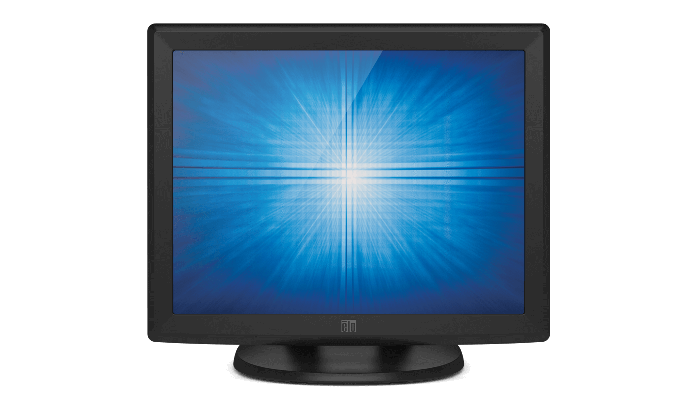

1515L 15" Touchscreen monitor (Discontinued September 2017)
How to Buy

Overview

The Elo 1515L 15-inch standard format touchscreen monitor delivers professional-grade built for touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1515L offers flexibility for mounting and two touch technology options.

Integrated touch.

The 15-inch touchscreen monitor features AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.
MSR ready.

The optional ergonomic three-track mag stripe reader (MSR), is easily installed providing an elegant, integrated solution. The MSR is available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
Flexible mounting.

The Elo 1515L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.
Commercial grade.

The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Economical and reliable
  • Energy-saving LED backlights
  • Up to 1024 x 768 resolution at 75 Hz
  • Touchscreen sealed against dirt, dust and liquids
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Digital on-screen display (OSD)
  • Both Internal power and optional external 12VDC power supply
  • Worldwide agency approvals
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Asia) - E183106
    AccuTouch (Japan) - E813593
    IntelliTouch (China) - E110290

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304mm x 228mm

    Resolution

    1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)

    Other Supported Resolutions

    640 x 350 70 Hz
    640 x 480 60, 72, 75 Hz
    640 x 480 66 Hz (Mac)
    720 x 400 at 70 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    1024 x 768 65 Hz (Sun)
    1024 x 768 60, 70, 75 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Response Time-total (typical)

    11.7 msec

    Contrast Ratio

    700:1

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

    Input Connector

    AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Power Consumption (Typical)

    13W

    Speakers

    No Speakers

    On Screen Display

    Controls (side): menu, up, down, select, power

    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall

    Languages: English, German, Spanish, Japanese, French

    Lockouts: power, user controls

    Monitor Dimensions (with Stand)

    13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm

    Shipping Box Dimensions

    17.52" x 14.96" x 10.24" / 445mm x 380mm x 260mm

    Weight (with stand)

    10.6 lb / 4.8 kg

    Weight (without stand)

    7.3 lb / 3.3 kg

    Shipping Weight (With stand)

    15.4 lb / 7.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Threaded-through mounting holes, under stand

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty - Elo P/N: 758588-000
    2 Year Extended Warranty - Elo P/N: 930057-000
    Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

    Regulatory approvals and declarations

    North America/Worldwide: UL, cUL, FCC, CE, Semko or Demko, VCCI, IC, RCM, Argentina S-Mark
    Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, CCC, KC, RCM, BSMI, China RoHS, Argentina S-Mark

    What's in the Box

    QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord, USB cable

    Replacement DC Power Supply

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.

    AC Power Cable

    A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at at additional cost:

    United States: E042259
    Europe: E690013
    United Kingdom: E235317

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    USB touch cable and VGA video cable are included.

    Optional Peripherals

    Magnetic Stripe Reader (Dark Grey MSR) – Elo P/N: E177037

    Optional Stand

    Part number E245090, available at additional cost.
