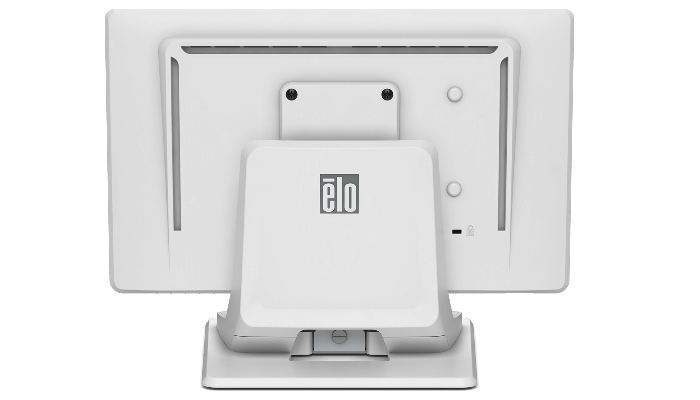

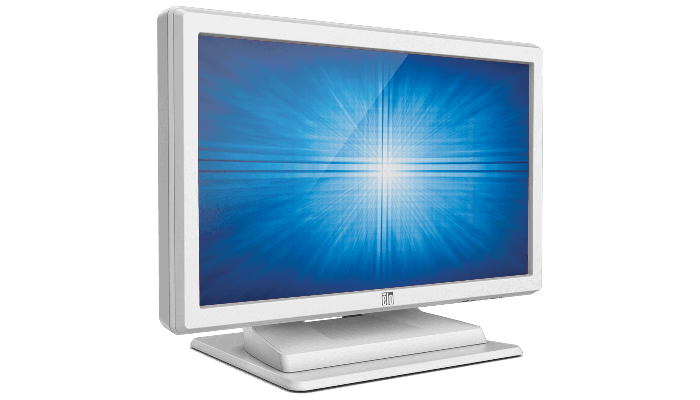

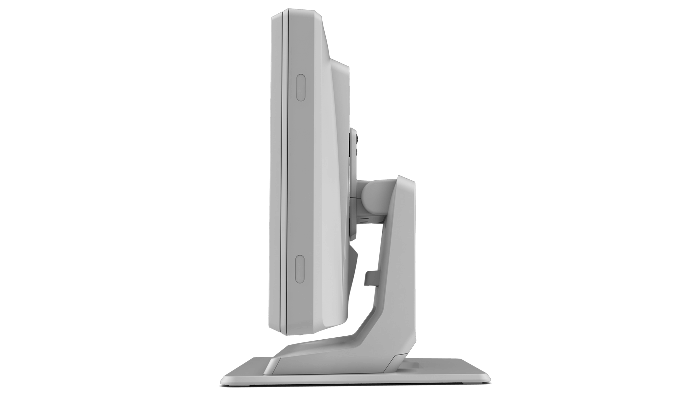

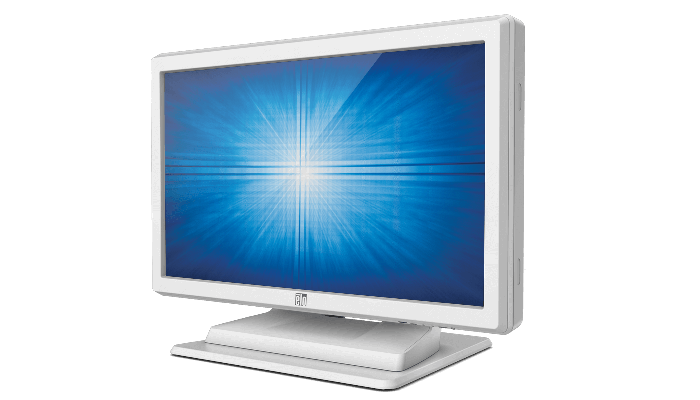

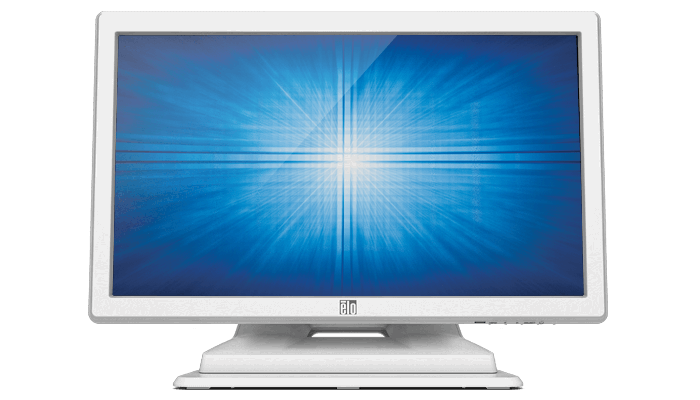

1519LM 15.6" Touchscreen Monitor (Discontinued September 2017)
How to Buy

Overview

The feature-rich, health care-ready 1519LM 15-inch touchscreen monitor offers professional-grade, best-in-class optical performance with Elo’s industry-leading touch technologies. Compliant with multiple safety and electrical certifications, the clean white design of the 1519LM offers a dual serial/USB touch controller, DVI, VGA and built-in speakers. The touchscreen monitor provides multiple mounting options to support most application uses, such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self-check-in/registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.

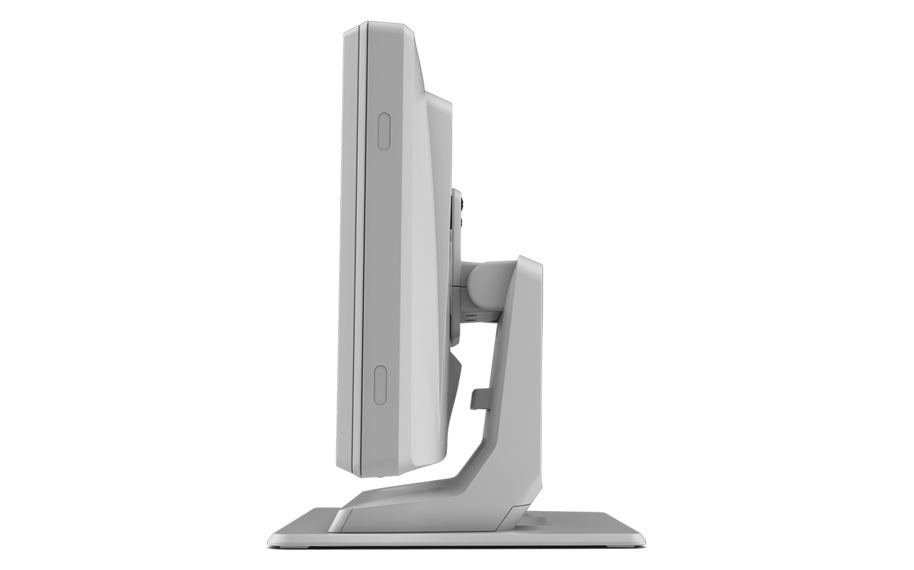

Healthcare-grade.

The 1519LM is compliant with multiple safety and electrical certification standards, including IEC/EN 60950-1 and IEC/EN 60601-1 for safety and EN 55011, EN 55022, EN 55024 and IEC/EN 60601-1-2 (3rd Edition) for EMC. Equipped with an LED backlit state-of-the-art LCD panel, the monitor is environmentally friendly with reduced power consumption.
Value-added.

The healthcare-grade 1519LM touchscreen monitor provides an economical and reliable touchscreen sealed from dirt, dust and liquid, making it an effective solution for system integrators, value-added resellers and software developers to consider integrating into their health care applications.
Integrated touch.

The 1519LM features your choice of three touchscreen technologies: single touch options include AccuTouch® Five-Wire Resistive technology (activated with fingernails, gloves, credit cards, or any stylus) or IntelliTouch® surface acoustic wave (SAW) for superior image quality (activated with finger or glove). For a 10-touch tablet-like experience, our TouchPro™ PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Other features.
  • Economical and reliable
  • Support input video up to 1366 x768 at 60Hz
  • Optional ergonomic three stripe MSR available in USB with keyboard emulation
  • Sealed touchscreen
  • Dual serial/USB touch interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Energy savings by using LED technology
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (North America) - E561587
    AccuTouch (North America) - E019027
    PCAP (Americas) - E277603

    Enclosure Color

    White

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.5" x 7.6" / 344mm x 194mm

    Resolution

    1366 x 768 at 60 Hz

    Other Supported Resolutions

    720 x 350 at 70Hz
    720 x 400 at 70Hz
    640 x 480 at 60, 72, 75Hz
    800 x 600 at 56, 60, 72, 75Hz
    832 x 624 at 75Hz
    1024 x 768 at 60, 70, 75Hz
    1280 x 800 at 60Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60, 75Hz
    1360 x 768 at 60Hz
    1366 x 768 at 60Hz
    1440 x 900 at 60Hz
    1600 x 1200 at 60Hz
    1680 x 1050 at 60Hz

    Viewing Angle

    Horizontal: ±45° or 90° total / Vertical: 20°/45° or 65° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits
    PCAP: 215 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    500:1

    Input Video Format

    Analog VGA on Female DE-15 connector Digital DVI on Female DVI-D connector

    Input Video Frequency

    Horizontal: 30 - 83 kHz
    Vertical: 50 - 75 Hz

    Audio Input Connector

    3.5mm TRS jack

    Headphone Output Connector

    Two 3.5mm TRS jacks

    Power Supply

    DC (external power adapter included with unit)

    Input Voltage

    +12VDC ±5%

    Input Connector

    Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)

    Adapter Input Connector

    IEC 60320 C14

    Adapter Input Voltage Range

    100-240 VAC, 50 - 60 Hz

    Power Consumption (Typical)

    Monitor and AC/DC adapter: 18.4W

    Speakers

    Two x 2W internal speakers

    On Screen Display

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Phase, Clock, H-Position, V-Position, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Monitor Dimensions (with Stand)

    13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm

    Shipping Box Dimensions

    16.54" x 14.96" x 10.24" / 420mm x 380mm x 260mm)

    Weight (with stand)

    11.5 lb / 5.2 kg

    Shipping Weight (With stand)

    16.5 lb / 7.5 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tiltable and removable

    Mounting Options

    75 mm VESA mount
    Threaded-through mounting holes, under stand

    Warranty

    3-year

    Regulatory approvals and declarations

    North America: UL 60601-1 (3rd Edition), CSA C22.2 No. 60601-1 (medical), FCC CFR 47 Part 18 Subpart B (medical), USA UL 60950, CSA C22.2 No. 60950-1-03, Mexico NOM, USA FCC, ICES

    EMEA: IEC/EN 60601-1:1988+A1+A2 2nd Edition (medical), IEC/EN 60601-1-2:2005, IEC/EN 55011 (medical), IEC/EN 60950-1 including all CB scheme member country deviations, C-tick, CE mark

    Japan: VCCI

    South America: Argentina S-mark

    Replacement DC Power Supply

    Replacement Medical Power Brick Kits:

    United States: E179789
    Europe: E050243
    United Kingdom: E287753
    Japan: E970286

    Optional PCAP Stylus Pen

    E066148

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002

    Optional Stand

    E194784 (White) - available at additional cost

Configurations

(3)

Refine your search:
Compare Compare
Image of item
E019027 (North America)
  • White
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
Compare Compare
Image of item
E561587 (North America)
  • White
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
Compare Compare
Image of item
E277603 (Americas)
  • White
  • USB
  • No-Bezel
  • clear
  • Projected Capacitive
No Configurations found.
