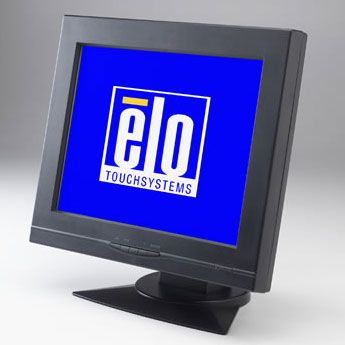

1524L 15" Touchscreen Monitor (Discontinued November 2004)
Overview
The 1524L touchmonitors are designed to provide a single-source selection of entry-level LCD monitors, aimed at the fast-changing consumer retail/POS and hospitality/POS markets. While offered at a lower price-point, they still provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The 1524L features Elo AccuTouch® five-wire resistive touch technology.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- AccuTouch Five-Wire Resistive Technology with serial interface
- Touch can be activated with fingernails, gloves, credit cards, or any stylus
- Sealed touchscreen
- Removable base and VESA mounting option
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
AccuTouch (Serial, Antiglare, Worldwide) - D20932-000
Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
12.0" x 9.0" / 304mm x 228mm
Resolution
1024 x 768 at 75 Hz
Other Supported Resolutions
1024 x 768 at 60, 66 Hz (Sun), 70, or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72, or 75 HzViewing Angle
Horizontal: ±60° or 120° total / Vertical: 45°/55° or 100° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 205 nits (typical)Response Time-total (typical)
40 msec
Contrast Ratio
350:1
Input Video Format
RGB analog
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Touch Interface
Serial: D20932-000
Power Supply
Type: Internal
Input Voltage
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
On Screen Display
Multilingual OSD with lock-out capability
User Controls
Controls (side): auto, enter, -, +, menu/exit
OSD: brightness, contrast, phase auto adjust, H-position, V-position, clock, YUV (saturation, hue and flesh tones), RGB (red, green and blue color temperatures), information OSD H-position, OSD V-position, OSD time, recall defaults, exit
Languages: English, French, Japanese, Deutsch, and SpanishMonitor Dimensions (with Stand)
15.0" x 14.5" x 7.6" / 381mm x 370mm x 194mm
Weight (Unpackaged)
12.0 lbs / 5.4 kg
Weight (Packaged)
16.5 lbs / 7.5 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingMounting Options
Removable base
75 mm VESA mountBacklight lamp life
Min 50,000 hours to half brightness
Regulatory approvals and declarations
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick, MPR II
Power Cables
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo P/N: 276875-000.Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
