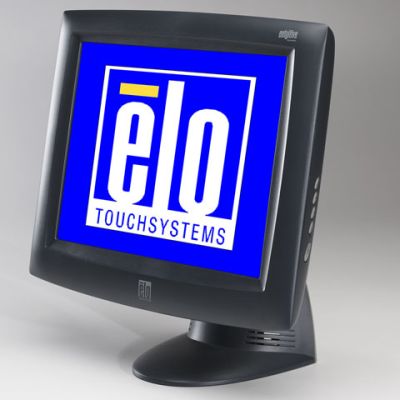

1525L 15" Hi-Bright Touchscreen Monitor (Discontinued October 2005)
Overview
The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Built-in speakers located in display head
- Available with surface capacitive touch technology
- Dual serial/USB interface
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Internal power supply
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
Surface capacitive (Dual serial/USB, Antiglare, Worldwide) - E074047
Enclosure Color
Dark Gray
Touch Technology & Capacity
Surface Capacitive (SCAP) - Single Touch
Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
11.9" x 8.9" / 304 mm x 228 mm
Resolution
1024 x 768 at 60, 70 or 75 Hz
Viewing Angle
Horizontal: ±70° or 140° total / Vertical: 65°/60° or 125° total
Number of Colors
16.2 million with dithering (6 bit)
Brightness (typical)
LCD panel: 400 nits
Surface Capacitive: 316 nitsResponse Time-total (typical)
16 msec
Contrast Ratio
500:1
Input Video Format
Analog (no proprietary video card needed)
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Touch Interface
Dual serial/USB
Power Supply
Type: Internal power supply
Input Voltage
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 31.5-60 kHz / Vertical: 56-75 Hz
Speakers
Two built-in, rear-facing 1W speakers in display head
On Screen Display
Digital OSD
User Controls
Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuMonitor Dimensions (with Stand)
15.37" x 15.40" x 8.2" / 390mm x 391mm x 208mm
Weight (Unpackaged)
14.7 lbs / 6.67 kg
Weight (Packaged)
20.45 lbs / 9.28 kg
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC
