1528L 15" Touchscreen Monitor (Discontinued March 2015)
Overview

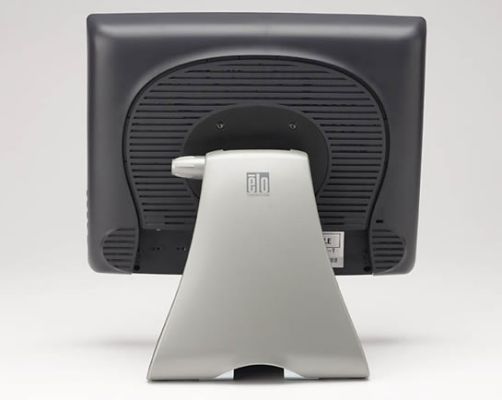

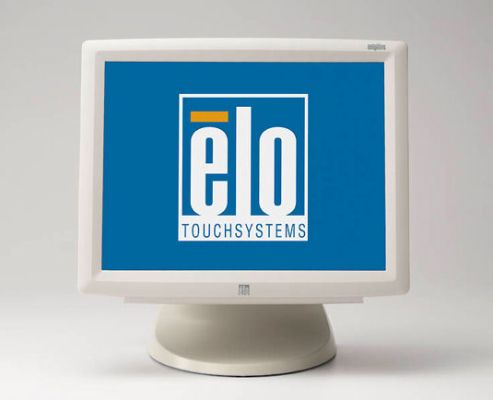

The 1528L 15" LCD medical desktop touchmonitor is an integrated solution for medical equipment OEMs and healthcare system integrators seeking a reliable, durable and cost-effective touchmonitor. Typical applications include patient self-service, nurse station and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchmonitor’s innovative IPX1 enclosure design, coupled with the addition of a special gasket, sheds water and resists liquid drops and spills.
The 1528L is available with IntelliTouch surface wave touch technology or AccuTouch five-wire resistive touch technology. AccuTouch is the most widely used technology for medical equipment applications. AccuTouch touchscreens can be activated with a gloved hand or any stylus – an important feature for medical applications.
Other features.
- IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- Touchscreen sealed from the factory to resist against dirt and dust
- Analog and digital (DVI-D) video inputs
- Multiple mounting options including VESA mounting option
- On screen display controls on the side rather than the front, plus lockout function for public use
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface-Wave Technology
- Combination controller (both Serial and USB)
Specifications
-
Technical
Part Number(s)
AccuTouch (Antiglare) - E606958 (Americas, EMEA)
AccuTouch (Antiglare) - E338457 (Americas, EMEA)
IntelliTouch (Antiglare) - E491199 (Americas)
IntelliTouch (Antiglare) - E372869 (Americas)Enclosure Color
Dark Gray or Beige
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
12.0" x 9.0" / 304mm x 228mm
Resolution
1024 x 768 at 60 Hz
Other Supported Resolutions
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzViewing Angle
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 350 nits
AccuTouch: 287 nits
IntelliTouch: 322 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
400:1
Touch Interface
Dual serial/USB
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, V-position, H-position, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsSpeakers
Two watt/channel speakers located in display head
Input Video Format
Analog VGA, DVI-D

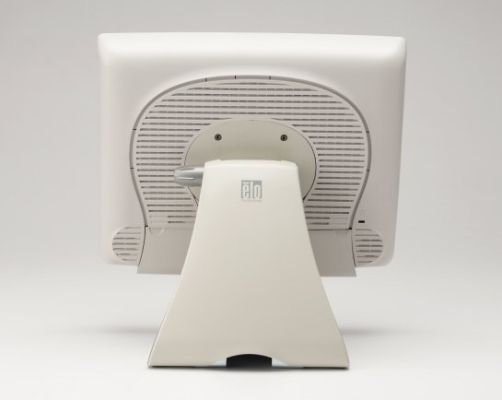

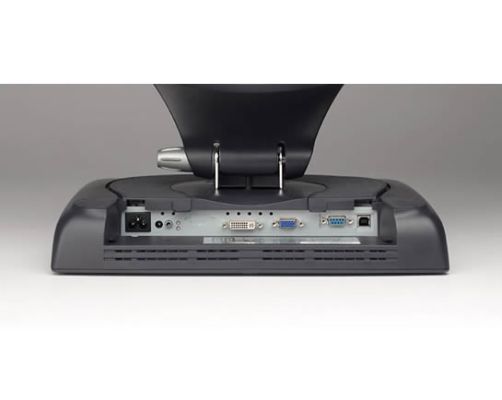

Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
Power Consumption (Typical)
48W
Power Supply
External DC (power brick); Hospital-grade power cord for US/Canada; European power cord.
Input Voltage
AC: 100–240 VAC, 50/60 Hz; DC: 12.0 V±0.75 V
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Input Frequency
Horizontal: 31–60 kHz / Vertical: 56–75 Hz
Monitor Dimensions (with Stand)
14.0" x 13.8" x 8.0" / 355mm x 350mm x 203mm
Shipping Box Dimensions
18.50" x 10.43" x 18.11" / 470mm x 265mm x 460mm
Weight (without stand)
10.8 lbs / 4.8 kg
Weight (Unpackaged)
With power adapter: 16.1 lbs / 8.3 kg; Without power adapter: 15.3 lbs / 6.9 kg
Weight (Packaged)
22.2 lbs / 10.1 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 5%-95%
noncondensingSealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Stand Options
Tilt, remove
Mounting Options
75 mm VESA mount
Other Features
Energy save mode (less than 6 watts)
2 stage DPMS
VESA DDC, Plug & Play
Security lock receptacleWarranty
3-year
Regulatory approvals and declarations
FCC, IC, C-Tick Class B, UL, cUL Medical UL 60601-1(formerly 2601-1), C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only). Includes EMC requirements EN, IEC 60601-1-2
AC Power Cable
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E450339
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317Optional Power Supply Brick
Replacement Medical Grade Power Supply Brick and Cable Elo p/n: E539821, available at additional cost.
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
