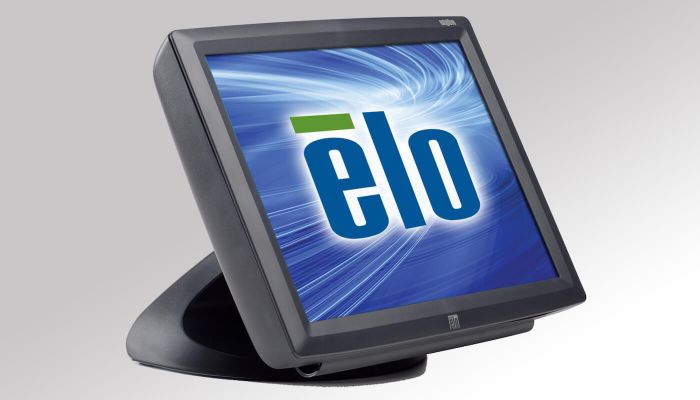

1529L 15" Touchcomputer (Discontinued April 2008)
How to Buy

Overview

The 1529L touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions. The silent, fanless 1529L integrates an all-in-one touchcomputer within the footprint of a 15" LCD monitor. The retail-rugged 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short stable tilt base that is removable or reversible for wall mounting, and a choice of Elo touch technology as well as color. The Microsoft Windows 2000 and XP Professional versions of the 1529L touchcomputer include a hard drive; the Windows XP Embedded versions have solid-state components with no moving parts. Options include a magnetic stripe reader (MSR) and rear-facing customer display. The 1529L offers a wide range of connectivity, including USB and legacy serial ports. Applications for the new all-in-one touchcomputer include loyalty systems, kiosk information systems, POS, casino management, cash systems, and Internet access points such as those for Web surfing and hotel reservations. The 1529L is also available without the integrated computer

Features
  • Space saving, integrated, all-in-one touchcomputer with the footprint of a standard 15" LCD display
  • Silent, fanless design
  • Available as a solid-state embedded system or with an integrated hard drive
  • Choice of Microsoft Windows XP Professional, Microsoft Windows XP Embedded, or Microsoft Windows 2000 (not available in Europe) operating systems
  • Functions as desktop or wall-mountable system
  • Optional integrated MSR and/or rear-facing customer display
  • Available with AccuTouch® Five-Wire Resistive, CarrollTouch Infrared or IntelliTouch® Surface-Wave touch technology
  • "Designed for touch" from the ground-up; stable tilt base; cables hidden from user's view; controls on the side rather than the front, plus lockout function for public use
  • Base removable, plus VESA mounting option
  • Connectivity includes two serial, four USB 1.1, Ethernet, PCMCIA, PS/2 mouse, and keyboard ports
  • Built-in speakers located in display head
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Worldwide) - E997301
    AccuTouch (Antiglare, Worldwide) - E812229
    AccuTouch (Antiglare, Worldwide) - E804814
    AccuTouch (Antiglare, Worldwide) - E145229
    AccuTouch (Antiglare, Worldwide) - E934301
    AccuTouch (Antiglare, Worldwide) - E071845
    CarrollTouch (Antiglare, Worldwide) - E998829
    CarrollTouch (Antiglare, Worldwide) - E700965
    IntelliTouch (Antiglare, Worldwide) - E897594
    IntelliTouch (Antiglare, Worldwide) - E910583
    IntelliTouch (Antiglare, Worldwide) - E770939
    IntelliTouch (Antiglare, Worldwide) - E763179
    IntelliTouch (Antiglare, Worldwide) - E202923
    IntelliTouch (Antiglare, Worldwide) - E723341
    IntelliTouch (Antiglare, Worldwide) - E074661
    IntelliTouch (Antiglare, Worldwide) - E224159
    IntelliTouch (Antiglare, Worldwide) - E782747
    IntelliTouch (Antiglare, Worldwide) - E624617
    IntelliTouch (Antiglare, Worldwide) - E037419

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    CarrollTouch Infrared Technology

    Processor

    Via Eden 1 GHz CPU or equivalent

    Memory (RAM)

    512 MB

    Hard Disk Drive

    XP/2000: 30 GB HDD (minimum)
    XP Embedded: Optional 30 GB HDD (minimum) or 1 GB Compact Flash

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    11.98" x 8.98" / 304.1 mm x 228 mm

    Resolution

    1024 x 768 at 60 Hz

    Number of Colors

    16.2 million with dithering (6 bit)

    Brightness (typical)

    LCD panel: 350 nits
    AccuTouch: 287 nits
    CarrollTouch: 322 nits
    IntelliTouch: 322 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    400:1

    Viewing Angle

    Horizontal: ±75° or 150° total / Vertical: 50°/75° or 125° total

    USB Ports

    Four external

    Serial Ports

    Two external

    Ethernet Port

    TCP/IP 10/100 Base-T RJ45 port

    Wireless

    Capable through PCMCIA

    Speakers

    Two-watt/channel speakers in display head

    OS

    Windows XP Professional 3
    Windows XP Embedded 4
    Windows 2000 (not available in Europe)

    Languages

    Windows 7 - 35 Language groups

    Power Supply

    Type: External brick
    Input (line) voltage: 100-240 VAC, 50-60 Hz
    Output voltage/current: 12 V at 5.0 amps max.

    Input Voltage

    100-240 VAC, 50-60 Hz

    Power Consumption (Typical)

    30 W

    Max Touchcomputer Dimensions With Stand

    13.99" x 11.27" x 10.44" / 355 mm x 286 mm x 265 mm

    Weight (Unpackaged)

    17.38 lbs / 7.88 kg

    Weight (Packaged)

    22.66 lbs / 10.26 kg

    Operating Temperature

    0°C to 35°C

    Storage Temperature

    -20°C to 60°C

    Humidity

    Operating: 20%-80%
    Storage: 5%-95%
    noncondensing

    Regulatory approvals and declarations

    UL/cUL (recognized component), FCC, TÜV-GS, CE, VCCI, C-Tick

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Removable base

    Warranty

    1-year

    Sealability

    Touchscreen sealed to bezel and LCD

    Power Cables

    A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317

    Other Features

    Energy save mode (less than 2 watts)
    Touchscreen sealed to bezel and LCD
    Security lock receptacle

    Upgrade Options

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    E-Series AC Power Cables Ordering Information

    North America p/n: E042259

    Stands, Mounts & Kits

    Short Desktop stand (Dark gray) - Elo p/n: E252977
    Tall Desktop stand (Dark gray) - Elo p/n: E930466
    Short Desktop stand (Beige) - Elo p/n: E819036
    Tall Desktop stand (Beige) - Elo p/n: E024520
    1529L VESA Plate – Elo p/n: E295293
