1529L 15" Touchscreen Monitor (Discontinued December 2013)
Overview

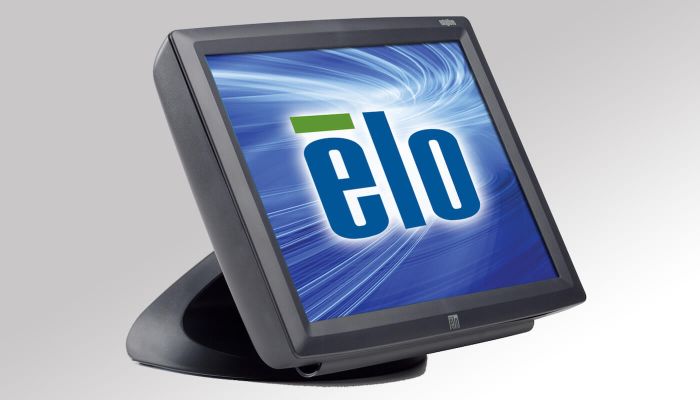

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt stand that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove).
- Optional ergonomic 3 stripe MSR Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
AccuTouch - E582772
AccuTouch - E785333
AccuTouch - E619005
AccuTouch - E587776
AccuTouch - E659634
IntelliTouch - E101984
IntelliTouch - E641269
IntelliTouch - E926109
IntelliTouch - E229149
IntelliTouch - E273617
IntelliTouch - E733714Enclosure Color
Dark Gray or Beige
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
12.0" x 9.0" / 304mm x 228mm
Resolution
1024 x 768 at 60 Hz
Other Supported Resolutions
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzNumber of Colors
16.2 million
Brightness (typical)
LCD panel: 350 nits
AccuTouch: 280 nits
IntelliTouch: 315 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
500:1
Touch Interface
Serial/USB: E582772, E785333, E619005, E587776, E101984, E641269, E926109, E229149
USB: E659634, E273617, E733714On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsSpeakers
Two watt/channel speakers located in display head
Input Video Format
Analog VGA, DVI-D
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
Power Consumption (Typical)
Monitor: 20 W
USB magnetic stripe reader: 0.5 W
2 USB external ports power when loaded: 5 W
Total with all possible accessories: 31 WPower Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
Input Connector
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31-60 kHz / Vertical: 56-75 Hz
Monitor Dimensions (with Stand)
14.0" x 10.4" x 11.3" / 355mm x 265mm x 286mm
Shipping Box Dimensions
Tall stand: 21.65" x 11.02" x 19.69" / 550mm x 280mm x 500mm
Short stand with scanner: 21.65" x 16.73" x 13.58" / 550mm x 425mm x 345mm
Short stand: 19.09" x 16.73" x 13.00" / 485mm x 425mm x 330mmWeight (with stand)
Short stand: 14.4 lbs / 6.6 kg
Weight (without stand)
10.6 lbs / 4.8 kg
Shipping Weight (With stand)
Short stand: 21.2 lbs / 9.6 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20-80%
Storage: 5-95%
noncondensingSealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, removable, reverse (wall mount), short or tall stand
Mounting Options
75mm VESA mount
Other Features
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle
Two external USB portsWarranty
3-year
AC Power Cable
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n - E042259
Europe: Elo p/n - E690013
United Kingdom: Elo p/n - E235317Optional Power Supply Brick
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E137360, is available at additional cost.
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.
Touch/Video/Audio/Accessory Cables:
All appropriate cables are included and are detachable.
Stands, Mounts & Kits
Short Desktop stand (Dark gray) - Elo p/n: E252977
Tall Desktop stand (Dark gray) - Elo p/n: E930466
Short Desktop stand (Beige) - Elo p/n: E819036
Tall Desktop stand (Beige) - Elo p/n: E024520
1529L VESA Plate – Elo p/n: E295293
