1717L 17" Touchscreen Monitor (Discontinued December 2018)
Overview

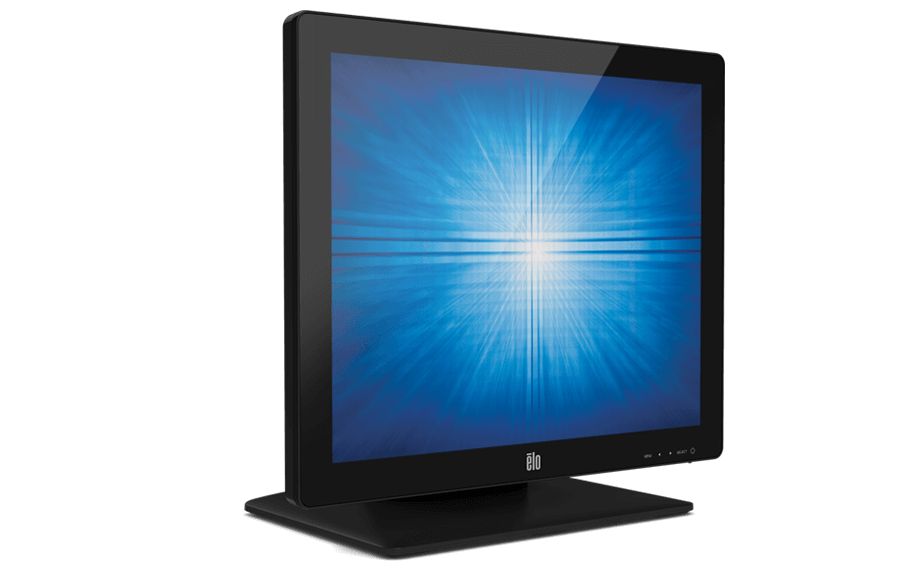

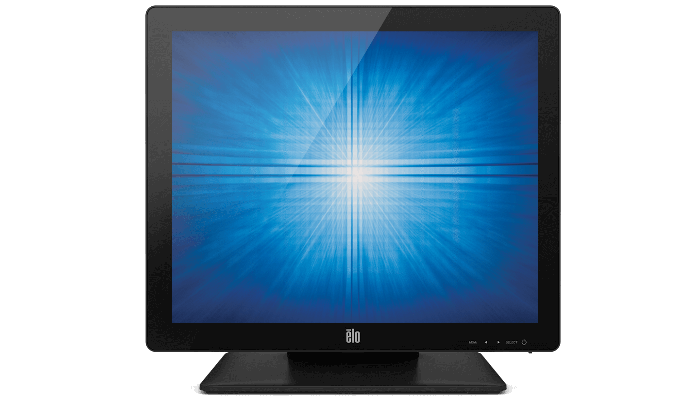

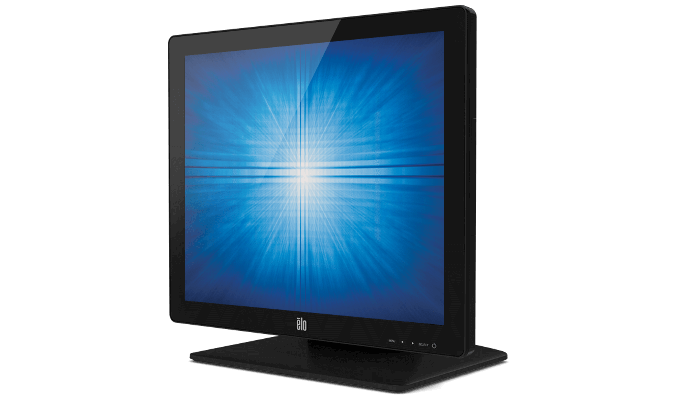

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

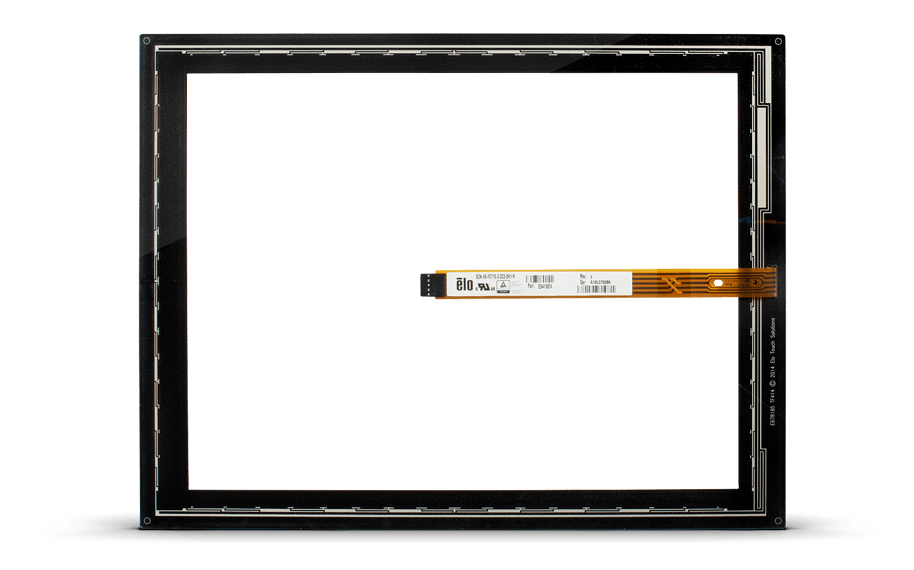

Integrated touch.The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. |
 |
 |
MSR ready.The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |

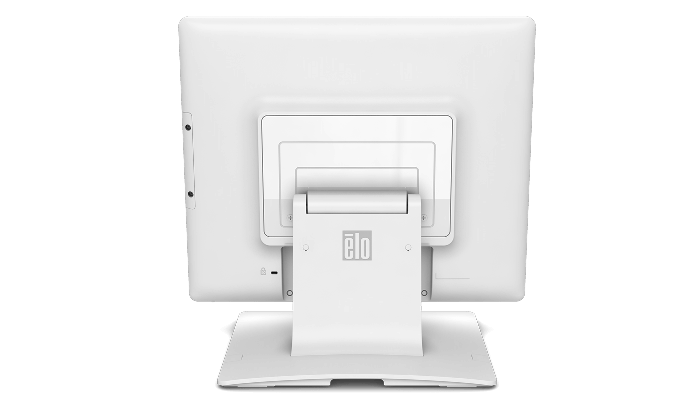

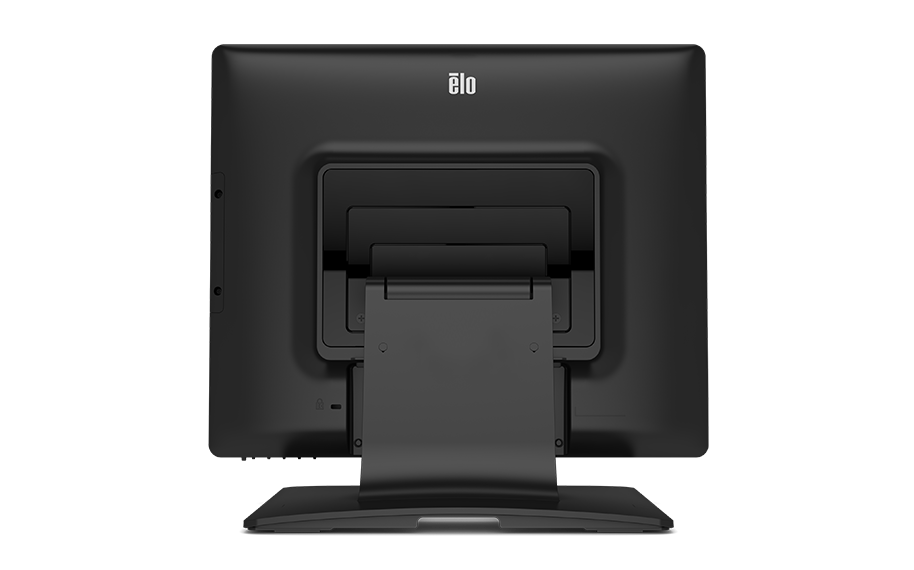

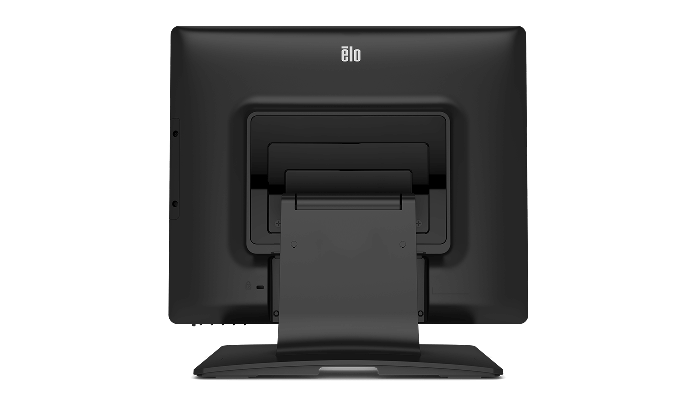

Flexible mounting.The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security. |
 |
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 20W, internal and external power options
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
PCAP Black (Asia-Pacific & Japan) - E824217

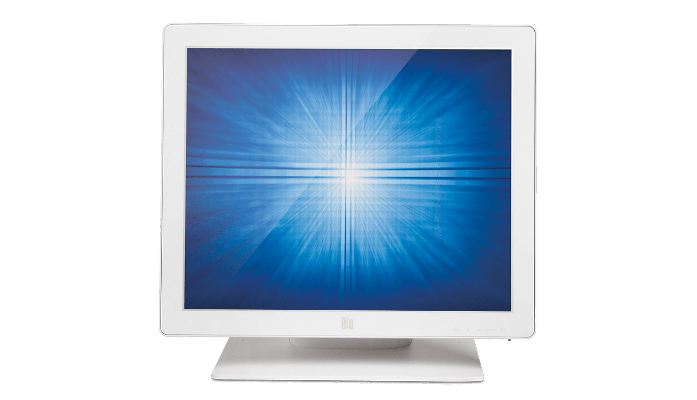

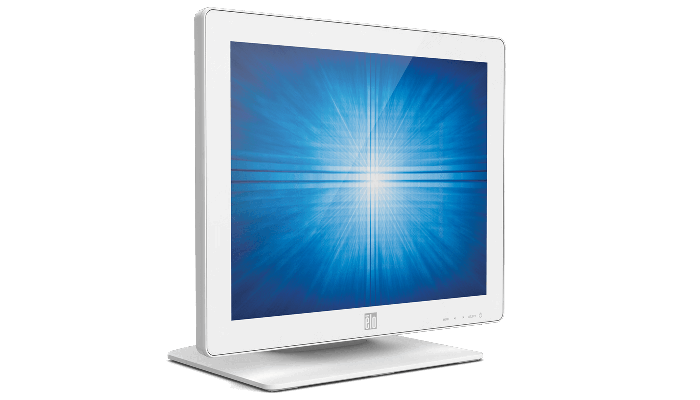

Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
17'' diagonal, Active matrix TFT LCD (LED)

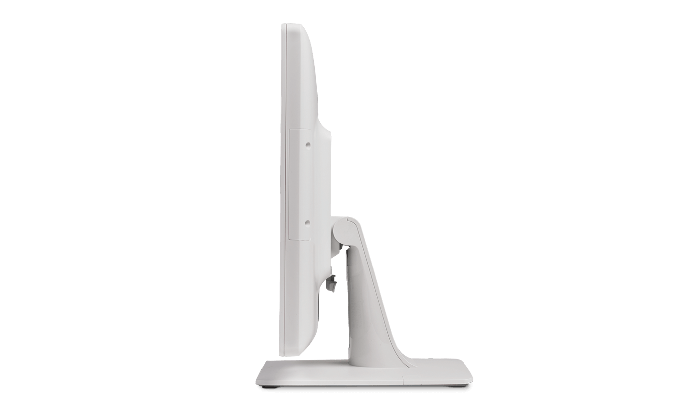

Monitor Thickness
1.7" / 43mm panel depth
Aspect Ratio
5:4
Active Area
13.3" x 10.64" / 337.92mm x 270.34mm
Resolution
1280 x 1024
Other Supported Resolutions
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
1280 x 1024 @ 60Hz, 75HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
PCAP: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Touch Interface
Serial (RS232) and USB
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerInput Video Format
Analog VGA on Female DB-15 connector
Input Video Frequency
Horizontal: 31.5-80 kHz
Vertical: 56-75 HzPower Consumption (Typical)
Monitor Only
ON: 16W
SLEEP: 3.0W
OFF: 0.5WInput Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60Hz
Monitor Dimensions (with Stand)
15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm
Shipping Box Dimensions
20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm
Weight (Unpackaged)
11.9 lbs / 5.4 Kg
Weight (Packaged)
18.3 lbs / 8.3 Kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Capped through-mount holesOther Features
Security lock receptacle
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AURÂ - Elo P/N:Â E898648
4 year warranty coverage + AURÂ - Elo P/N:Â E894921
5 year warranty coverage + AURÂ - Elo P/N:Â E895125Regulatory approvals and declarations
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
What's in the Box
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate
Replacement DC Power Supply
The monitor may be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost.
AC Power Cable
North American & EU power cables included. UK AC power cables included with P/Ns available for EMEA.
China: E030476
Japan: E849156 (3-pin to 2-pin adapter: E351985
UK: E235317
Taiwan: E637694Optional PCAP Stylus Pen
E066148
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Peripherals
Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356
Stands, Mounts & Kits
1717L VESA Mount Plate (Black) - Elo P/N: E000405
Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
1717L Replacement Stand (White) - Elo P/N: E061177
1717L Replacement Stand (Black) - Elo P/N: E904304
