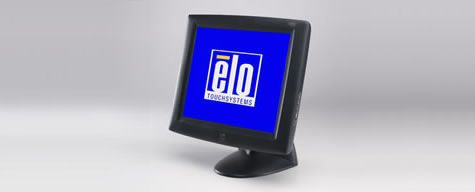

1725L 17" Touchscreen Monitor (Discontinued November 2005)
How to Buy

Overview

The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.

Other features.
  • High quality panel with 140°x140° viewing angle
  • Analog and digital (DVI-D) video inputs
  • "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
  • Cables hidden from user's view
  • Mounting holes on base bottom for tabletop security
  • Base removable or reversible for wall mounting, plus VESA mounting option
  • Built-in speakers located in display head
  • Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology
  • Serial or USB touch interface; dual serial/USB interface for surface capacitive technology
  • Sealed touchscreen
  • Controls on the side rather than the front, plus lockout function for public use
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Long-lasting product cycle
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Worldwide) - 954174-001
    AccuTouch (Antiglare, Worldwide) - 069914-001
    IntelliTouch (Antiglare, Worldwide) - D00405-001
    IntelliTouch (Antiglare, Worldwide) - 442072-001

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338mm x 270mm

    Resolution

    1280 x 1024

    Other Supported Resolutions

    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical:67/63° or 130° total

    Number of Colors

    16.2 million with dithering (6 bit)

    Brightness (typical)

    LCD panel: 260 nits
    AccuTouch: 213 nits
    IntelliTouch: 239 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    450:1

    Input Video Format

    Analog (no proprietary video card needed); Digital Video Input (DVI-D)

    Input Video Signal Connector

    Mini D-Sub 15-Pin; DVI-D

    Touch Interface

    Serial: 954174-001, D00405-001; USB: 069914-001, 442072-001

    Power Supply

    External power supply, 100-240 VAC, 50-60 Hz

    Input Voltage

    11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.

    Input Frequency

    Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

    Sync Types

    Separate horizontal and vertical sync, composite sync and sync-on-green

    Power Consumption (Typical)

    50 W max.

    Speakers

    Two watt/channel speakers located in display head

    On Screen Display

    OSD lockouts for power and user controls
    OSD extras include volume, treble, bass, balance

    User Controls

    Side: menu, up, down, select, power
    OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
    Languages: English, German, Spanish, Japanese, French
    OSD disable/enable: power, volume, and/or OSD menu

    Monitor Dimensions (with Stand)

    17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

    Weight (without stand)

    15.08 lb / 6.84 kg

    Weight (Unpackaged)

    20.92 lbs / 9.49 kg

    Weight (Packaged)

    27.42 lbs / 12.44 kg

    Operating Temperature

    0°C to 40°C

    Storage Temperature

    -20°C to 60°C

    Humidity

    Operating: 20%-80%; Storage: 10%-90%; noncondensing

    Mounting Options

    100 mm or 75 mm M4 VESA mount
    100 mm M5 threaded holes on base bottom for table top security
    Removable base
    Reversible stand for wall mounting
    Stand rotates from -5° (from vertical) to 90° (horizontal)
    Optional stability plate

    Backlight lamp life

    Typical 40,000 hours to half brightness

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II

    Power Cables

    A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
    Elo p/n: 276875-000.

    Optional Power Supply Brick

    Elo p/n: E54714-000. Available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Stability Plate

    Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
