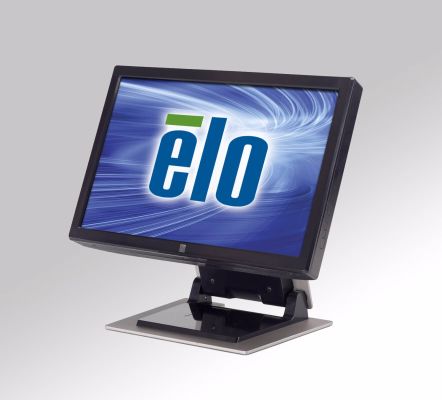

1900L 19" Touchscreen Monitor (Discontinued August 2009)
How to Buy

Overview

Consisting only of a glass overlay mounted in front of the LCD panel, the 1900L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face.

The 1900L is available in both zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, and standard-bezel IntelliTouch surface acoustic wave touch technologies.

Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.

Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Other features.
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • Uninterrupted surface area and easy-to-clean true-flat surface on the zero-bezel APR touchmonitor
  • "Designed for touch" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display – designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (EMEA models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration

Specifications

  • Technical

    Part Number(s)

    Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E270148
    Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E745317
    IntelliTouch (Dual serial/USB, Antiglare, EMEA) - E775327
    IntelliTouch (Dual serial/USB, Antiglare, EMEA) - E857476

    Enclosure Color

    Dark Gray or Beige

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch

    Diagonal Size

    19'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:10

    Active Area

    16.1" x 10.1" / 408mm x 255mm

    Resolution

    1440 x 900 at 60 Hz

    Other Supported Resolutions

    1680 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1366 x 768 at 60 Hz
    1360 x 768 at 60 Hz
    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1280 x 768 at 65 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 72 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60 or 72 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 or 72 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 300 nits
    Acoustic Pulse Recognition: 270 nits
    IntelliTouch: 270 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Touch Interface

    USB: E270148, E745317
    Dual serial/USB: E775327, E857476

    User Controls

    Controls (side): menu, up, down, select, power
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Audio Input Connector

    3.5mm TRS jack

    Headphone Output Signal

    3.5mm TRS jack

    Speakers

    Two 2W internal speakers

    Input Video Format

    Analog VGA, DVI video (EMEA and Asia/Pacific models without DVI)

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Consumption (Typical)

    70W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)

    Input Frequency

    Horizontal: 30-83 kHz / Vertical: 56-76 Hz

    Monitor Dimensions (with Stand)

    17.7" x 15.0" x 11.8" / 449mm x 380mm x 300mm

    Shipping Box Dimensions

    19.75" x 10.06 x 23.63" / 500mm x 255mm x 600mm

    Weight (with stand)

    19.9 lbs / 9.0 kg

    Weight (without stand)

    13.2 lbs / 6.0 kg

    Shipping Weight (With stand)

    26.8 lbs / 12.2 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removable, adjust height, pivot (landscape/portrait mode)

    Mounting Options

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Backlight lamp life

    Typical 40,000 hours to half brightness

    Regulatory approvals and declarations

    North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
    South America: Argentina S-mark
    EMEA: Russia PCT, Germany GS
    Asia: Australia C-Tick, China CCC, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
    Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

    AC Power Cable

    For touchmonitors being shipped to the Americas, a North American AC power cable is included.
    For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
    For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.

    Cable Kit for Replacement Cables

    Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology.
    Elo p/n: D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch, audio, power and video cables are included.

    Optional Accessories/Peripherals

    Desktop Stand (Dark gray) - Elo p/n: E647647
    Desktop Stand (Beige) - Elo p/n: E830716
