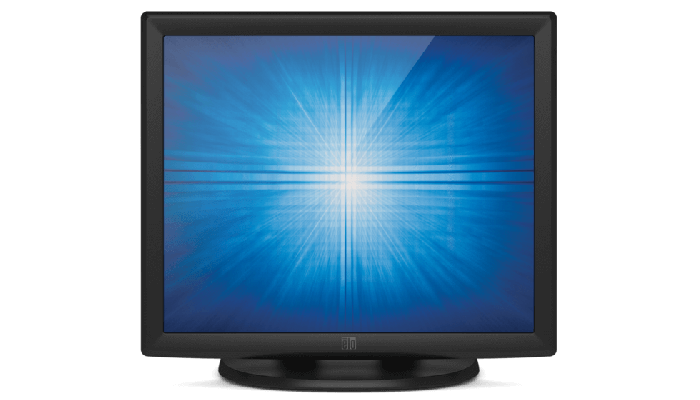

1915L 19" Touchscreen Monitor (Discontinued June 2013)
Overview
The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Available with IntelliTouch Surface Wave Technology, AccuTouch Five-Wire Resistive Technology or Acoustic Pulse Recognition Technology
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
Acoustic Pulse Recognition (USB, Antiglare, Americas / EMEA) - E437227
Enclosure Color
Dark Gray
Touch Technology & Capacity
Acoustic Pulse Recognition - Single Touch
Diagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.8" x 11.9" / 376.3mm x 301.1mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzViewing Angle
Horizontal: ±80° or 160° total / Vertical: 80°/75° or 155° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
Acoustic Pulse Recognition: 270 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Touch Interface
USB
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsInput Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Consumption (Typical)
50 W
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 85-265 VAC, 47–63 Hz; DC: 12.0 VDC ±0.75V
Input Connector
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Monitor Dimensions (with Stand)
16.9" x 14.9" x 8.2" / 429mm x 379mm x 207mm
Shipping Box Dimensions
21.28" x 11.23" x 19.50" / 540mm x 285mm x 495mm
Weight (Unpackaged)
17.4 lbs / 7.9 kg
Weight (Packaged)
25.8 lbs / 11.7 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingSealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, removable
Mounting Options
100 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Regulatory approvals and declarations
North America/Worldwide: UL, cUL, MPR II, CE, FCC, VCCI, C-Tick Class B
Asia: BSMI, CCC, MIC, China RoHSAC Power Cable
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E042259
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317Optional Power Supply Brick
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E785134, is available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Stand
Stand (Beige) - Elo p/n: E668438
Stand (Dark Grey) - Elo p/n: E335194
