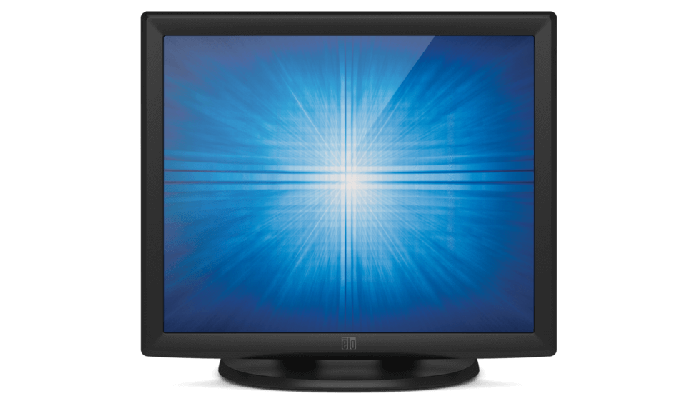

1915L 19" Touchscreen Monitor (Discontinued June 2015)
How to Buy

Overview

The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. This compact touchmonitor is "designed for touch" from the ground up, with Elo expertise and reliability built in-not added by altering an existing monitor. The 1915L desktop LCD touchmonitor is available with a choice of Elo's AccuTouch® five-wire resistive, or IntelliTouch® surface wave touch technologies, plus a dual serial/ USB touch interface. The monitor is factory sealed against dust, dirt, and liquid splashes. The 1915L can be used in a wide variety of environments because it registers input from a finger, gloved hand or soft stylus with a fast and accurate response.

Other features.
  • Entry-level monitor with Elo quality
  • "Designed for touch" features such as a stable tilt stand
  • Long-lasting product cycle
  • Available with IntelliTouch Surface Wave Technology, or AccuTouch Five-Wire Resistive Technology
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare) - E142981 (Asia/Pacific)
    IntelliTouch (Antiglare) - E966732 (Asia/Pacific)

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    19'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    14.8" x 11.9" / 376.3mm x 301.1mm

    Resolution

    1280 x 1024

    Other Supported Resolutions

    1280 x 1024 at 60 or 75 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66, 72 or 75 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 187 nits
    IntelliTouch: 225 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Touch Interface

    Dual serial/USB

    User Controls

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
    Languages: English, German, Spanish, Japanese, French
    Lockouts: power, user controls

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Consumption (Typical)

    23 W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 85-265 VAC, 47–63 Hz; DC: 12.0 VDC ±0.75V

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

    Monitor Dimensions (with Stand)

    16.9" x 14.9" x 8.2" / 429mm x 379mm x 207mm

    Shipping Box Dimensions

    21.28" x 19.50" x 11.23" / 540mm x 495mm x 285mm

    Weight (Unpackaged)

    17.4 lbs / 7.9 kg

    Weight (Packaged)

    25.8 lbs / 11.7 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removable

    Mounting Options

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Regulatory approvals and declarations

    North America/Worldwide: UL, cUL, MPR II, CE, FCC, VCCI, C-Tick Class B
    Asia: BSMI, CCC, MIC, China RoHS

    AC Power Cable

    North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.

    AC power cables for power brick are also available at additional cost:
    United States - Elo p/n: E042259
    Europe - Elo p/n: E690013
    United Kingdom - Elo p/n: E235317

    Optional Power Supply Brick

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E005277, is available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Stand

    Stand (Beige) - Elo p/n: E668438
    Stand (Dark Grey) - Elo p/n: E335194
