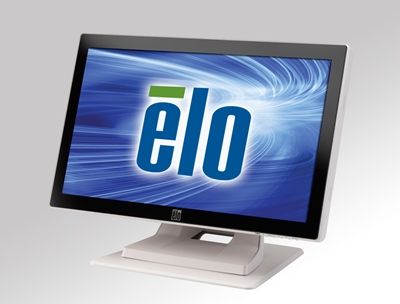

1919LM 19" Touchscreen Monitor (Discontinued November 2015)
How to Buy

Overview

The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive and projected capacitive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

The 1919LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 1919LM meets RoHS compliance. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.

The Elo 1919LM touchmonitor is an effective solution for System Integrators, Value-Added Resellers and Software Developers to consider integrating into their healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point–of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.

Other features.
  • Economical and reliable
  • Support input video up to 1680 x 1050 at 60Hz
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), or Projected Capacitive (PCAP) multi-touch technology in zero-bezel design
  • Optional ergonomic 3 stripe MSR
  • Sealed touchscreen
  • Dual serial/USB touch interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Dual serial/USB, Antiglare, Europe) - E120415
    AccuTouch (Dual serial/USB, Antiglare, North America) - E093466
    AccuTouch (Dual serial/USB, Antiglare, Japan) - E966131
    IntelliTouch (Dual serial/USB, Antiglare, North America) - E872193
    IntelliTouch (Dual serial/USB, Antiglare, Europe) - E803857
    IntelliTouch (Dual serial/USB, Antiglare, Japan) - E214864
    PCAP (USB, Clear, Worldwide) - E849623

    Enclosure Color

    White

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    18.5'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    16.1" x 9.1" / 410 mm x 230mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    720 x 350 at 70Hz
    720 x 400 at 70Hz
    640 x 480 at 60, 72, 75Hz
    800 x 600 at 56, 60, 72, 75Hz
    832 x 624 at 75Hz
    1024 x 768 at 60, 70, 75Hz
    1280 x 800 at 60Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60, 75Hz
    1360 x 768 at 60Hz
    1366 x 768 at 60Hz
    1440 x 900 at 60Hz
    1600 x 1200 at 60Hz
    1680 x 1050 at 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 270 nits
    Projected Capacitive: 270 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Touch Interface

    Dual serial/USB: E120415, E093466, E966131, E872193, E803857, E214864
    USB: E849623

    On Screen Display

    Controls: Menu, Up, Down, Select
    Settings: Brightness, Contrast, Phase, Clock, H-Position, VPosition, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese,Japanese
    Lockouts: OSD, Power

    Audio Input Connector

    3.5mm TRS jack

    Headphone Output Connector

    Two 3.5mm TRS jacks

    Speakers

    Two 2W internal speakers

    Input Video Format

    Analog VGA on Female DE-15 connector
    Digital DVI on Female DVI-D connector

    Power Consumption (Typical)

    21.8W (monitor and AC/DC adapter)

    Power Supply

    DC (external power adapter included with unit)

    Input Voltage

    AC/DC Adapter: 100-240 VAC, 50/60 Hz; Monitor: +12VDC ±5%

    Input Connector

    AC/DC Adapter: IEC 60320 C14; Monitor: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 30-83KHz / Vertical: 50-75 Hz

    Monitor Dimensions (with Stand)

    13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm

    Shipping Box Dimensions

    22.44" x 14.96" x 8.86" / 570mm x 415mm x 225mm

    Weight (Unpackaged)

    15.2 lbs / 6.9 kg

    Weight (Packaged)

    21.6 lbs / 9.8 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tiltable and removable

    Mounting Options

    100 mm VESA mount
    Interface on rear of unit; 4-hole mounting interface on stand baseplate.

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Regulatory approvals and declarations

    North America: USA UL 60601-1 (3rd Edition), CSA C22.2 No. 60601-1 (medical), USA FCC CFR 47 Part 18 Subpart B (medical), UL 60950, CSA C22.2 No. 60950-1-03, Mexico NOM, FCC, ICES
    EMEA: Europe IEC, EN 60601-1:1988+A1+A2 2nd Edition (medical), Europe IEC, EN 60601-1-2:2005, IEC, EN 55011 (medical), Europe IEC, EN 60950-1 including all CB scheme member country deviations, C-tick, CE mark
    Japan: VCCI
    South America: Argentina S-mark

    Cable Kit for Replacement Cables

    Elo p/n: E378229, available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Accessories/Peripherals

    Replacement Medical Power Brick Kits:
    United States: Elo p/n: E179789
    Europe: Elo p/n: E050243
    United Kingdom: Elo p/n: E287753
    Japan: Elo p/n: E970286

    Optional Stand

    Elo p/n: E990099, available at additional cost.
