1928L 19" Touchscreen Monitor (Discontinued June 2015)
Overview

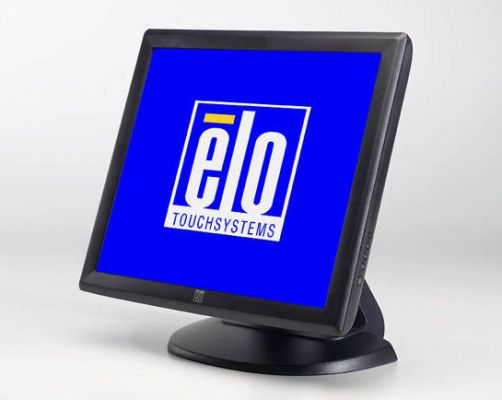

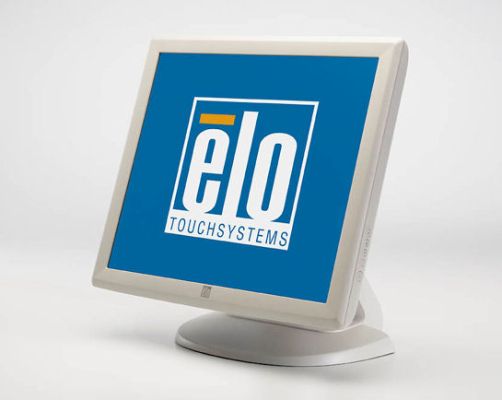

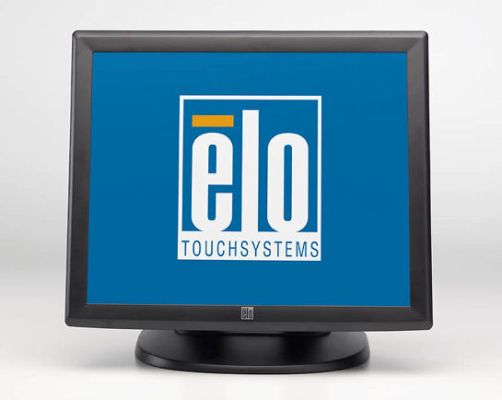

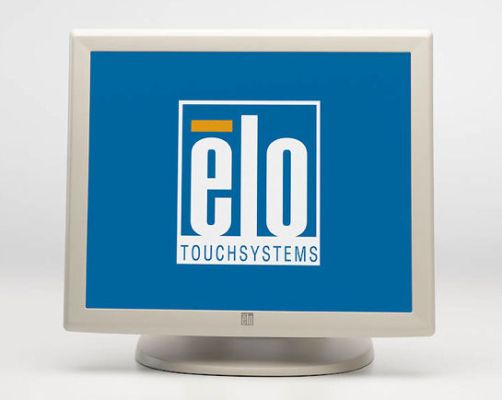

The fully featured 1928L touchmonitor offers best in class optical performance mated to the leading touch technologies–IntelliTouch® surface acoustical wave and AccuTouch® five-wire resistive–along with a combination touch controller, DVI, VGA and built-in speakers. The product can be ordered in beige or gray color, touch and non-touch enabled versions.
The 1928L carries a wide array of certifications and includes an innovative IPX1 enclosure design which ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. As a result the 1928L is an excellent fit for any application benefiting from DVI-D input, speakers and best in class image performance.
Other features.
- IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- 5-second power down delay (prevents accidental power shut down)
- Leading edge optical performance
- 178° x 178° viewing angle
- 1300:1 contrast ratio
- 300-nit brightness
- Analog and digital (DVI-D) video inputs
- Built in speakers located in the display head

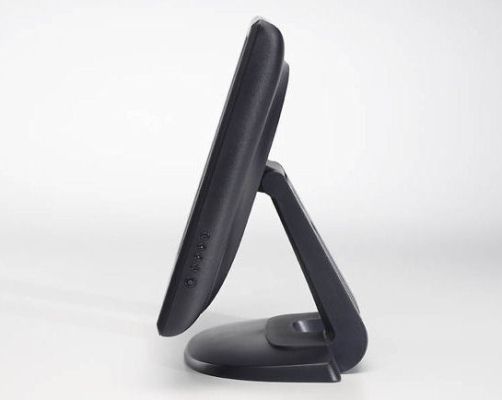

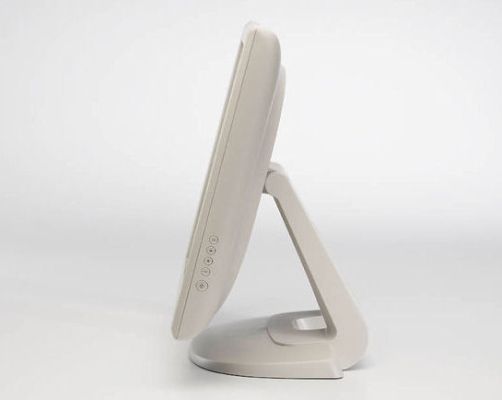

- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology, and as non-touch enabled version
- Combination controller (both Serial and USB)
Specifications
-
Technical
Part Number(s)
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E935808
AccuTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E522556
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E686117
AccuTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E139551
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E897317
IntelliTouch (Dual serial/USB, Antiglare, Americas, EMEA) - E188117
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E746115
IntelliTouch (Dual serial/USB, Antiglare, Asia/Pacific) - E499616
Non-touch (Antiglare, Americas, EMEA) - E939583
Non-touch (Antiglare, Americas, EMEA) - E586024
Non-touch (Antiglare, Asia/Pacific) - E205676
Non-touch (Antiglare, Asia/Pacific) - E266366Enclosure Color
Dark Gray or Beige
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Non-TouchDiagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.8" x 11.9" / 376mm x 301mm
Resolution
1280 x 1024 at 60 Hz
Other Supported Resolutions
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsResponse Time-total (typical)
20 msec
Contrast Ratio
1300:1
Touch Interface
Dual serial/USB: E935808, E522556, E897317, E188117, E686117, E139551, E746115, E499616
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, H-position, V-position, recall default, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD timeout, auto adjust, input select
Languages: English, French, Dutch, Spanish, Swedish, Italian, Chinese, Polish, Japanese
Lockouts: power, user controlsSpeakers
2 watt/channel speakers located in display head
Input Video Format
Analog VGA, DVI-D
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
Power Consumption (Typical)
48W
Power Supply
External power adapter; efficiency rating: CAT: V
Input Voltage
DC: 12.0 V ± 0.60 V
Input Connector
DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Input Frequency
Horizontal: 31.5–80 kHz / Vertical: 56.3–75 Hz
Monitor Dimensions (with Stand)
16.9" x 15.4" x 8.3" / 429mm x 390mm x 212mm
Shipping Box Dimensions
21.27" x 20.09" x 11.23" / 540mm x 510mm x 315mm
Weight (with stand)
17.7 lbs / 8.0 kg
Weight (without stand)
13.5 lbs / 6.1 kg
Shipping Weight (With stand)
26.1 lbs / 11.8 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingSealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, removable
Mounting Options
100 mm VESA mount
Threaded-through mounting holes, under standOther Features
2 stage DPMS
VESA DDC, Plug & Play
Five-second power down delay function
Security lock receptacleWarranty
3-year
Regulatory approvals and declarations
North America/Worldwide: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), Argentina S, IEC, EN61000-4-3
Asia: UL, cUL, CB, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), Argentina S, MIC, eK, CCC, China RoHS, IEC, EN61000-4-3Power Cables
Hospital-grade power cord for US/Canada; European power cord.
Replacement DC Power Supply
Hospital-grade power cord for US/Canada; European power cord.
AC Power Cable
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E450339
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Optional Power Supply Brick
Elo p/n: E448370, available at additional cost.
Optional IntelliTouch Stylus Pen
D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Accessories/Peripherals
Stand (Beige) - Elo p/n: E668438
Stand (Dark Grey) - Elo p/n: E335194
