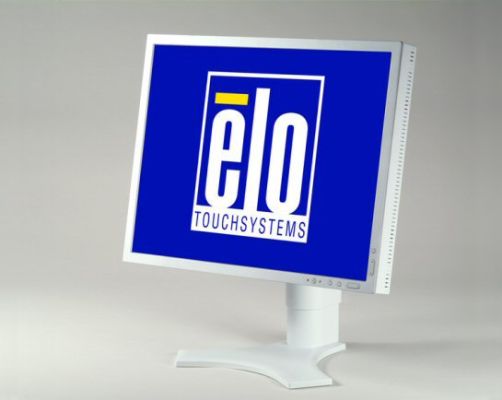

2020L 20" Touchscreen Monitor (Discontinued January 2007)
Overview
The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.
Other features.
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- High quality panel with 178° viewing angle
- Available in black or beige
- Can be used in portrait mode
- Adjustable height
- Carrying handle for easy transport
- Quick release stand
- Desktop stand can be removed or reversed for wall mounting option
- VESA mounting option
- Sealed touchscreen
- Controls on the side rather than the front
- Digital on-screen display (OSD)
Specifications
-
Technical
Part Number(s)
AccuTouch (USB, Antiglare, Worldwide) - E418308
AccuTouch (Serial, Antiglare, Worldwide) - E854384
AccuTouch (USB, Antiglare, Worldwide) - E973889
IntelliTouch (USB, Antiglare, Worldwide) - E637315
IntelliTouch (Serial, Antiglare, Worldwide) - E994124
IntelliTouch (USB, Antiglare, Worldwide) - E414923
IntelliTouch (Serial, Antiglare, Worldwide) - E735022Enclosure Color
Black or Beige
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
20.1" diagonal, Active matrix TFT L
Aspect Ratio
4:3
Active Area
16.14" x 12.12" / 409.9mm x 307.8mm
Resolution
1600 x 1200 at 60 Hz
Other Supported Resolutions
1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 280 nits
AccuTouch: 238 nits
IntelliTouch: 266 nitsDot Pitch
0.255 mm
Response Time-total (typical)
16 msec
Contrast Ratio
700:1
Touch Interfaces
Serial: E854384, E994124, E735022
USB: E418308, E973889, E637315, E414923On Screen Display
Digital
Input Video Signal Connector
15pin D-sub, DVI-D, DVI-I and VGA
Power Consumption (Typical)
On: 50W
Power saving mode: < 1WPower Supply
Internal AC
Input Voltage
AC 100–120V; AC 220–240V
Input Frequency
Analog
Horizontal: 31.5–91.1 kHz / Vertical: 50–85 Hz
Digital
Horizontal: 31.5–99.4 kHz / Vertical: 50–85 HzMonitor Dimensions (without Stand)
17.3" x 13.4" x 3.3" / 439.2mm x 340mm x 85mm
Monitor Dimensions (with Stand)
17.3" x 22.3" x 9.7" / 439.2mm x 565.5mm x 247.3mm
Weight (with stand)
21.4 lbs / 9.7 kg
Weight (Unpackaged)
15.4 lbs / 7.0 kg
Operating Temperature
5°C to 35°C / 41°F to 95°F
Storage Temperature
-10°C to 60°C / 14°F to 140°F
Humidity
Operating: 30%-80%
Storage: 10%-85%
noncondensingMTBF
40,000 – 50,000 hours
Mounting Options
100 mm VESA mount
Removable and adjustable base
Wall mountableWarranty
4-years parts and labor, including backlight
Backlight lamp life
40,000 hours until half brightness
Regulatory approvals and declarations
The approved monitor is not submitted for re-certification after touch modification.
