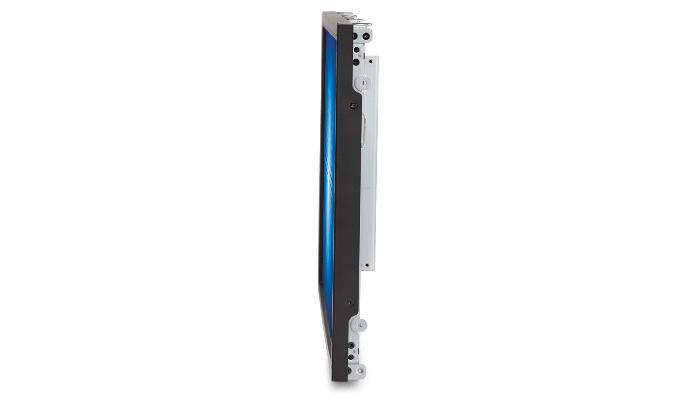

2244L Open Frame Touchscreen (Discontinued)
How to Buy

Overview

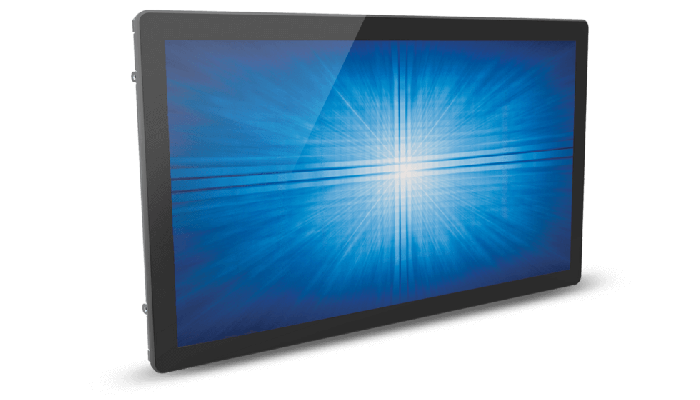

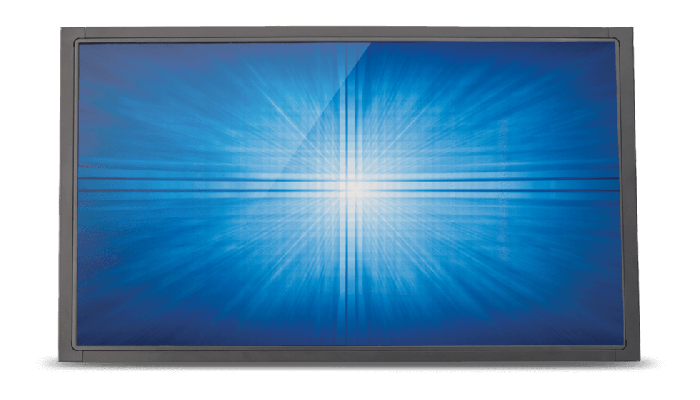

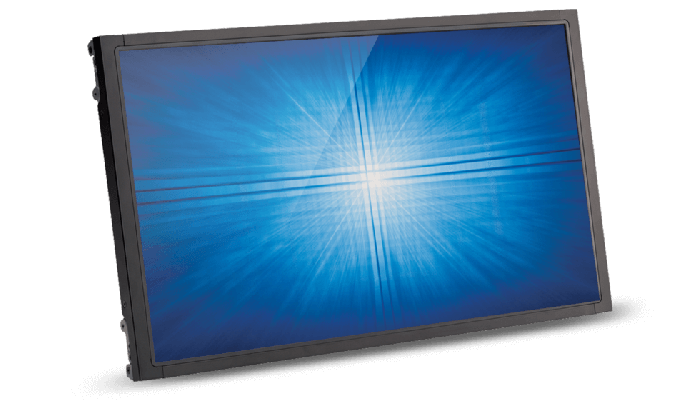

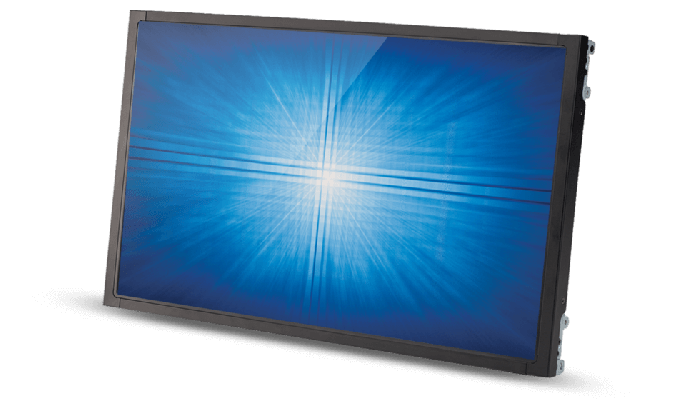

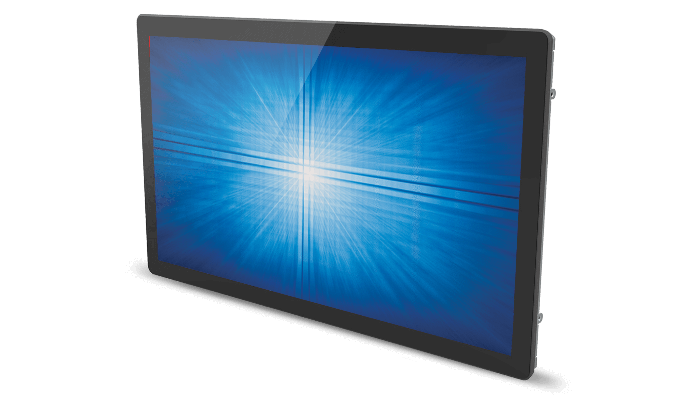

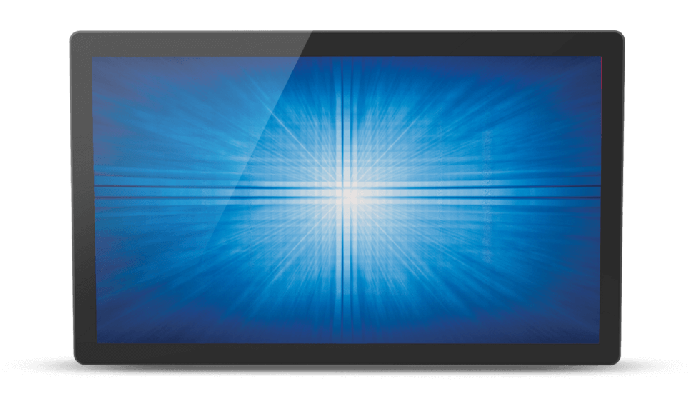

Elo’s 2244L 22-inch wide-aspect open frame touchscreen is designed for touch with proven Elo expertise and reliability built in. The LED backlighting allows for a state-of-the-art slim design while reducing power consumption and generating less heat. With a high-definition cinematic-like experience and compact form factor, the 2244L complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. The touchscreen also features a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The 22-inch touchscreen is available with your choice of touch technologies and multiple mounting options for easy integration.

Easily integrated.

Featuring a compact form factor and optional rack- and front-mount bezels, the 2244L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.

The 2244L provides stable drift-free operation with outstanding image clarity, resolution, and light transmission. Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch versions. The seamless zero-bezel 22-inch display is available with multi-touch (4-touch) projected capacitive (PCAP) technology offering an edge-to-edge glass design with fast and extremely sensitive responses right out of the box. IntelliTouch® provides a standard bezel design with single-touch or dual-touch for the ultimate in optical quality. All 2244L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance with scratch-resistant protection making it nearly impossible to physically wear them out.


Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • Viewing angle of 178° (h) × 178° (v), wider than most 22-inch touchmonitors, allows colors to remain sharp and graphics to retain their integrity in both portrait and landscape modes
  • 16:9 aspect ratio LED panel for a larger display surface and bright vivid images
  • Optimized for use in high-traffic environments
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Worldwide) - E469590
    IntelliTouch Dual Touch (Worldwide) - E056050
    PCAP (Worldwide) - E485927

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    18.7" x 10.5" / 475mm x 267mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 60Hz
    720 x 400 70Hz
    800 x 500, 60Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB
    1920 x 1080 50, 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch: 225 nits
    IntelliTouch DT: 225 nits
    PCAP: 225 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Input Video Format

    Analog VGA, DVI-D

    Input Video Signal Connector

    Analog VGA on Female DE-15 connector
    Digital DVI on Female DVI-D connector

    Input Video Frequency

    Horizontal: 31.5-80 kHz
    Vertical: 50-75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Power connector (Power brick)

    Type: IEC 60320 C14
    Adapter input voltage range: 100-240VAC, 50/60Hz

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2mm pin outer diameter, 6.4mm barrel inner diameter)

    Power Consumption (Typical)

    Monitor: 26 W
    Monitor + Adapter at 230V/50Hz
    ON: 39 W
    SLEEP: 1.5 W
    OFF: 1.0W

    Dimensions

    IntelliTouch: 20.15" x 11.74" x 1.65" / 511.7mm x 298.1mm x 42.6mm
    IntelliTouch DT: 20.7” x 12.49” x 1.59” / 526.9mm x 317.3mm x 40.4mm
    PCAP: 20.31" x 12.24" x 1.5"/ 516mm x 311mm x 38.5mm

    Shipping Box Dimensions

    24.41" x 7.87" x 16.93" / 620mm x 200mm x 430mm

    Weight (Unpackaged)

    10.6 lbs / 4.81 kg

    Weight (Packaged)

    15.3 lbs / 6.95 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, CoC, BSMI, CB, RCM, RoHS, China RoHS, WEEE, IMERC

    Power Cables

    Elo P/N: E378229 (gray), available at additional cost.

    Mounting Options

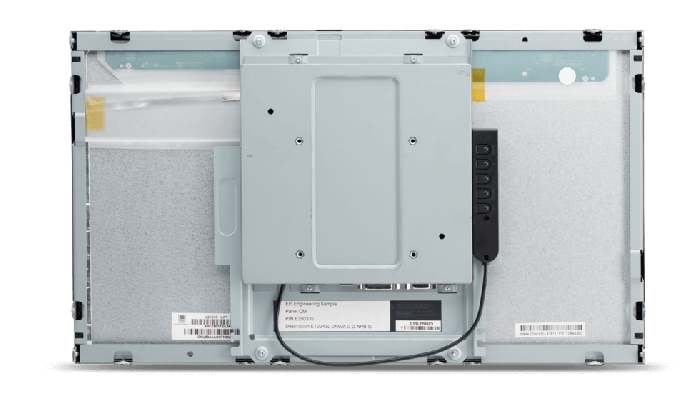

    VESA 4-hole 100mm mounting interface on rear of unit
    2-hole mounting interface on all 4 sides
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    Touch USB Cable
    User Manual CD
    Quick Install Guide
    ZB Models: Flush Mount Brackets w/Screws
    Bezeled Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706

    Optional Accessories

    Replacement Bracket Kit - Elo P/N: E530432
    Replacement OSD Remote - Elo P/N: E483757
    Both available at additional cost

    Optional PCAP Stylus Pen

    E066148

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
