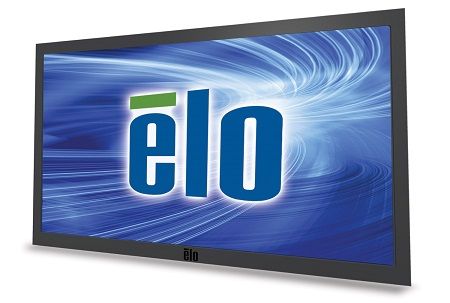

3209L 32" Interactive Digital Signage (Discontinued March 2016)
How to Buy

Overview

Elo's 3209L 32-inch full HD interactive digital signage touchscreen provides smooth dual-touch performance with IntelliTouch® Dual-Touch surface acoustic wave technology. The 3209L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hospitality, healthcare and other commercial markets. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. Narrow borders and a USB touch interface add to the versatility of the 3209L.

The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Other features.
  • 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user attention.
  • IntelliTouch Dual-Touch surface acoustic wave technology provides dual-touch performance.
  • New sleek design: 2.3-inch total thickness; less than 1-inch borders; 13.2kg (29.17 lbs) total weight.
  • LED backlighting reduces power consumption by 60% and generates less heat than traditional CCFL backlights.
  • Commercial durability enabled with UL60950 ball drop glass compliance.
  • Multiple mounting options are available.
  • Worldwide agency approvals and a 3-year standard warranty.

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual-Touch (USB, Clear, Worldwide) - E000732
    IntelliTouch Dual-Touch (USB, Clear, Asia/Pacific) - E000733

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch

    Diagonal Size

    32'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    27.49" x 15.47" / 698.4 mm x 392.85 mm

    Aspect Ratio

    16:9

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 at 60Hz
    800 x 500 at 60Hz
    800 x 600 at 56/60Hz
    1024x768 at 60Hz
    1280 x 720 at 60Hz
    1280x960 at 60 Hz
    1280x1024 at 60Hz
    1360x768 at 60 Hz
    1366x768 at 60 Hz
    1440x900 at 60 Hz
    1600x1200 at 60 Hz
    1680x1050 at 60 Hz
    1920x1080 at 60 Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 350 nits
    IntelliTouch Dual-Touch: 315 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    3000:1

    Touch Interface

    USB: E000732, E000733

    On Screen Display

    Accessible through switches on the OSD Control Remote accessory.
    Controls (side): Menu, Up, Down, Select
    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
    Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts : OSD, Power

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)

    Input Video Signal Connector

    Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only),
    Female DVI-D Dual Link Connector (Asian model only)

    Power Supply

    Internal AC

    Input Connector

    AC: IEC 60320 C14

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz

    Input Frequency

    Horizontal: 31-80 kHz / Vertical: 47-63 Hz

    Power Consumption (Typical)

    ON (monitor + AC/DC adapter): 55W
    SLEEP (monitor + AC/DC adapter): 1.4W
    OFF (monitor + AC/DC adapter): 0.3W

    Dimensions

    29.5" x 18" x 2.3" / 749.4 mm x 456 mm x 59 mm

    Shipping Box Dimensions

    39.05" x 26.45" x 11.65" / 992 mm x 672 mm x 296 mm

    Weight (Unpackaged)

    29.17 lbs / 13.2 kg

    Weight (Packaged)

    43.53 lbs / 19.7 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%
    Storage: 10-90%
    noncondensing

    Mounting Options

    400mm x 200mm VESA mount

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI Argentina S-Mark, Australia C-Tick, Canada CUL, IC, China CCC, Europe CE, Japan VCCI, Korea KC, KCC, e-Standby, Mexico CoC, Russia GOST, Taiwan BSMI, United States UL, FCC, International CB, RoHS, China RoHS, WEEE
    IntelliTouch Plus screen: United States UL 60950 ball-drop compliant.

    Power Cables

    Cable Kit for Replacement Cables - E378229

    Optional Accessories/Peripherals

    IntelliTouch SAW Stylus pen with rubber tip - Elo p/n: D82064-000
    Remote On-Screen Display (OSD) - Elo p/n: E483757
