5501LT 55" Interactive Digital Signage (Discontinued September 2017)
How to Buy

Overview

Elo’s 5501LT 55-inch interactive digital signage delivers a professional-grade large format touchscreen in a slim, integrated package. Designed from the bottom up for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial applications, the large widescreen 5501LT offers a bright, 500-nit LED panel, with a high-quality, interactive canvas for attracting and engaging consumers. The 5501LT provides a high-performance solution that is easy to deploy and maintain in public environments.

Thinner & lighter.

At 3.4 inches thin, the 5501LT is compliant with the ADA requirement of less than 4-inch protrusion for wall-mounted products when used with an Elo low-profile mount.

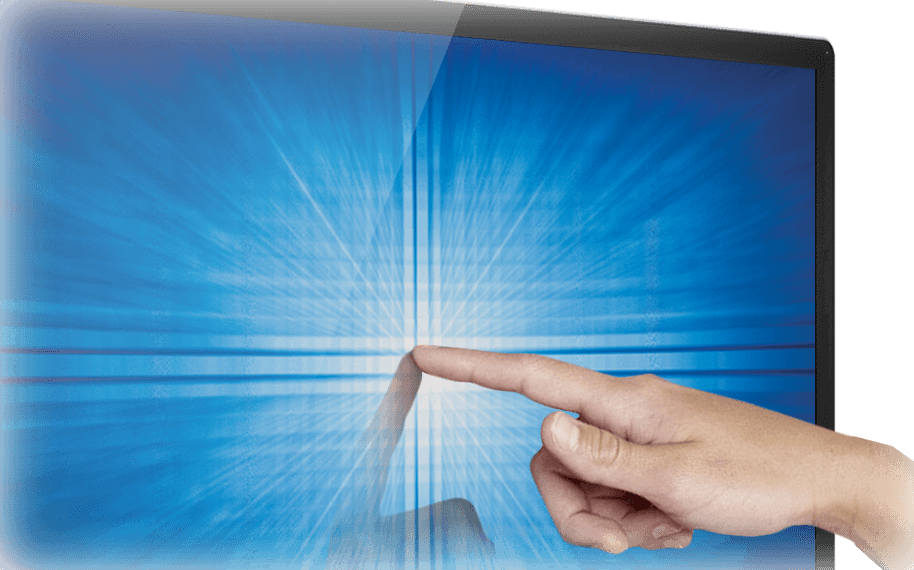

Integrated touch.

Elo’s products are factory-built touch systems with durability built in, not snapped on, preventing any “double bezel” appearance or rattling when touched. The Elo 5501LT is housed in a highly durable steel chassis for a long life of reliable performance with a pure-glass touchscreen designed to deliver crystal-clear images. Available with infrared touchscreen technology with a traditional bezel construction, the 5501LT delivers a sensitive multi-touch response with any input device that can be easily integrated into kiosks.
Processing power.

Optional, high-performance computer modules are available to turn the 5501LT into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. The commercial-grade computer modules, available with Microsoft Windows with Intel Core or Android with Qualcomm Snapdragon (supports EloView®), make the Elo 5501LT IDS display a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.
Other features.
  • Professional-grade hardware with strengthened touchscreen glass to withstand the rigors of public use
  • Three-year standard warranty (worldwide) with on-site exchange (NA only) / two-year extended warranty option available (NA and EMEA only)
  • Remote management capability for device hardware with support for future cloud applications
  • Intel OPS compliant with available adapter kit
  • Flexible mounting in portrait, landscape and table-top orientation

Specifications

  • Technical

    Part Number(s)

    Infrared (Worldwide) - E268254

    Enclosure Color

    Black

    Touch Technology & Capacity

    Infrared - 10 Touch

    Diagonal Size

    54.6'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    47.6" x 26.8" / 1209.6mm x 680.4mm

    Aspect Ratio

    16:9

    Resolution

    Full HD 1920 x 1080

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    1073.7 million

    Brightness (typical)

    LCD Panel: 500 nits
    IR: 450

    Response Time-total (typical)

    6.5 msec

    Contrast Ratio

    4000:1

    On Screen Display

    Controls: Menu, Up, Down, Select, Power

    Video Settings: Brightness, Contrast, VGA Settings (if available), Clock, Phase, Auto-Adjust, H-position, V-position, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source

    OSD Timer: Change between 5 and 60 seconds

    Color Adjust: 9300K, 7500K, 6500K, 5500K and User mode

    Color Reference: Standard, Gaming, Movie, Photo, Webcam, Blur

    Saturation and Hue: In any mode other than Standard mode

    Audio: From Video Source, From Line-in and ECM Line-in

    Audio Controls: Mute, Volume up and Down

    Video: Choose from VGA, HDMI, DisplayPort, Elo Computer Module

    MDC Protocol: IIC or RS232

    Black Level: Standard, 5%, 10% and 20% Offset

    Light Sensor enable/disable: Sharpness Level

    Aspect Ratio: Fill Screen, Fill to Aspect Ratio and Direct Output

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Other Settings: Power Behavior, Tabletop mode, Information, MDC Protocol, Support and Help, System Temperature and Exit
    Accessible through switches on the unit's tethered OSD control box.

    I/O Ports

    Input: AC power, RJ45 Remote Connector, VGA, HDMI, DisplayPort, USB type B, Audio Line In
    Output: Headphone Out

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a.

    Input Video Signal Connector

    Female DE-15 for Analog VGA
    HDMI Type A receptacle Display part 1.1a Connector.

    Input Video Frequency

    Horizontal: 31.5 - 73 KHz
    Vertical: 47 - 63 Hz

    Audio Input Connector

    3.5 mm TRS jack

    Audio Input Signal Range

    1Vrms max stereo signal (standard PC line out)

    Headphone Output Connector

    3.5 mm TRS jack

    Speakers

    Internal 4 x 5W stereo speakers

    Power Supply

    Internal AC

    Input Connector

    IEC 60320 C14

    Input Voltage

    100-240VAC 50/60Hz

    Maximum Operating Time

    24/7

    Power Consumption (Typical)

    Monitor Only
    (Typical at 120V at 60Hz): ON: 122 W; SLEEP: 13 W; OFF: 1.6 W
    (Typical at 230V at 50Hz): ON: 120 W; SLEEP: 12 W; OFF: 1.8 W

    Dimensions

    49.8" x 29" x 3.4" / 1267mm x 738mm x 87mm

    Shipping Box Dimensions

    55.9" x 9.2" x 34.6" / 1420mm x 235mm x 880mm

    Weight (Unpackaged)

    Monitor Only: 98.9 lbs / 44.85 kg
    Monitor with Computer Module: 103.2 lbs / 46.82 kg

    Weight (Packaged)

    Monitor Only: 119.4 lbs / 54.2 kg
    Monitor with Computer Module: 123.8 lbs / 56.17 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Mounting Options

    VESA 4-hole mount per MIS-F, 600, 600, 6mm

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Optional Product Coverage

    Extended Warranty (North America and EMEA only)

    Regulatory approvals and declarations

    UL, FCC Class A, cUL, IC, CB, CE Class A

    What's in the Box

    QIG, JP Class A Kiosk Info, HDMI cable, USB cable VGA+RS232 Y-cable, standard VGA cable, 3.5mm audio cable, power cable (NA, EU/KR, UK, AR, CH, and JP plugs), 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010

    IDS Optional Accessories

    i3 3.4 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001292
    i3 3.4 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001293
    i3 3.4 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
    i3 3.4 GHz ECMG2 - Windows 10 for IDS 01 Series - Elo P/N: E991018
    i5 3.7 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001295
    i5 3.7 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001296
    i5 3.7 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
    i5 3.7 GHz ECMG2 - Windows 10 for IDS 01 Series - Elo P/N: E991722
    i7 4.0 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001298
    i7 4.0 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001299
    i7 4.0 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
    i7 4.0 GHz ECMG2 - Windows 10 for IDS 01 Series - Elo P/N: E992193
    ECMG2 Android Computer Module Kit for IDS 01 Series - Elo P/N: E000739
    Web Cam Kit - Elo P/N: E688656
    NFC Adapter - Elo P/N: E918074
    OPS Kit - Elo P/N: E102270
    OSD Control Box - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E000263

    Stands, Mounts & Kits

    Wall Mount Kit - Elo P/N: E248743
