Introducing Elo Backpack 4
Enterprise Android in a box.
Powerful
processing.
The Elo Backpack is a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android-based apps. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier. From signage and kiosks to automation controls, pair the Elo Backpack with EloView® or your preferred management tools to simplify the delivery of content, enable remote management capabilities and create a consistent deployment that is cost effective and optimized for commercial use.
Google Mobile
Services (GMS).
Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
Ready to support your
digital transformation.
Many businesses are tasked with digital transformation and are trying to figure out how to incorporate consumer technologies into their business. With Elo’s approach to Android, including uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors, users gain the advantage of years of development and customizations Elo has made for many global Enterprise customers. Choose Elo to easily deliver the convenience and familiarity of Android in secure, business-friendly solutions.
Built for any use.
From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, the Elo Backpack offers the connectivity and durability to thrive under the demands of continuous use.
Small footprint.
Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.
Universal
VESA mount.
Easily secure to any counter or in a kiosk in a snap with the built-in 75mm or 100mm VESA mount.
Put your Backpack on.
Easily turn any Elo monitor into a powerful AiO platform.
Commercial-grade performance.
The Qualcomm Snapdragon octa-core Kryo processor offers powerful performance up to 2.0GHz and enhanced Adreno graphics. Or choose the value model offering a high performance Rockchip six-core processor.
Connect it all.
The Elo Backpack satisfies all your connectivity needs - offering 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO, and Wi-Fi antennas.
Your Backpack.
Your solution.
From 7-65 inch, the Backpack adds a powerful Android OS to Elo touchscreen monitors, open frames and large format interactive displays.
Android device
management made easy.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
- Remotely deploy content and manage your devices securely.
- Provision your devices in seconds with a seamless out-of-the-box experience.
- Leverage Elo Home to create a customized interface on your I-Series device.
Get peace of mind
with EloCare℠.
From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
- OS 360
Enterprise-grade
support.
- EloCare OS 360 – Monthly security updates to keep your devices secure.
- Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.
- Elo OEMConfig – Get immediate support of Elo’s proprietary APIs on your preferred Android MDM platform, saving you months of time as new releases become available.
Specifications
-
Technical
Part Number(s)
AccuTouch (Asia) - E183106
AccuTouch (Japan) - E813593
IntelliTouch (China) - E110290Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size

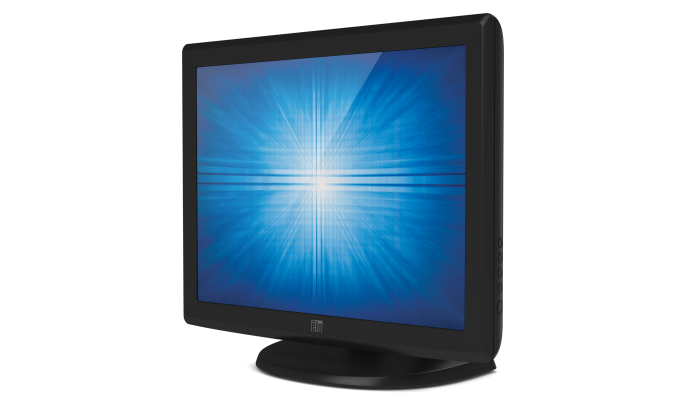

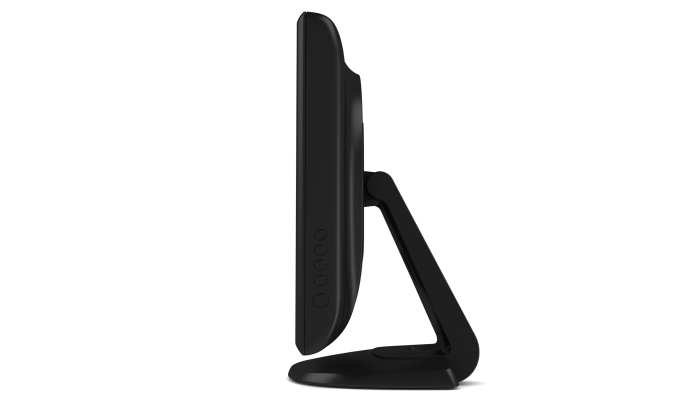

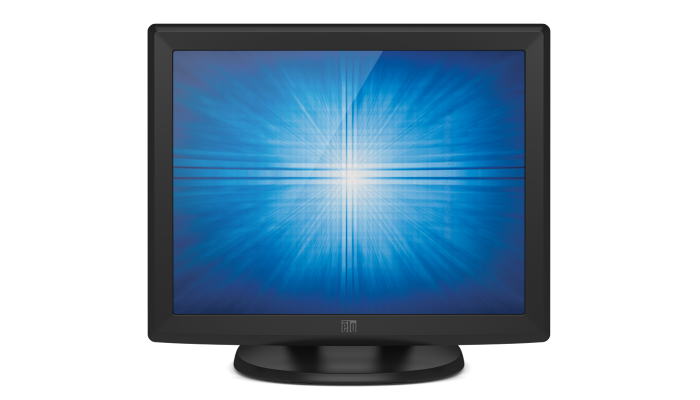

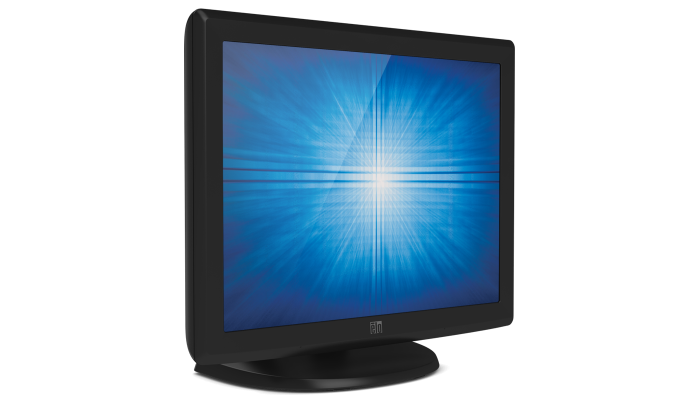

15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
12.0" x 9.0" / 304mm x 228mm
Resolution
1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)
Other Supported Resolutions
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
720 x 400 at 70 Hz
800 x 600 at 56, 60, 72 or 75 Hz
832 x 624 at 75 Hz (Mac)
1024 x 768 65 Hz (Sun)
1024 x 768 60, 70, 75 HzViewing Angle
Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nitsResponse Time-total (typical)
11.7 msec
Contrast Ratio
700:1
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Power Consumption (Typical)
13W
On Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsMonitor Dimensions (with Stand)
13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm
Shipping Box Dimensions
17.52" x 14.96" x 10.24" / 445mm x 380mm x 260mm
Weight (with stand)
10.6 lb / 4.8 kg
Weight (without stand)
7.3 lb / 3.3 kg
Shipping Weight (With stand)
15.4 lb / 7.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated

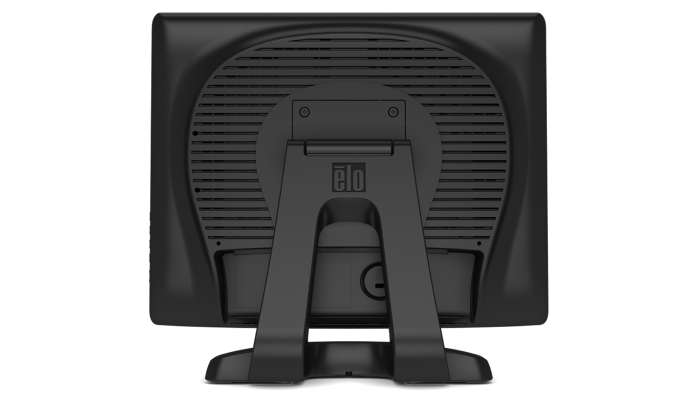

Mounting Options
75 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
North America/Worldwide: UL, cUL, FCC, CE, Semko or Demko, VCCI, IC, RCM, Argentina S-Mark
Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, CCC, KC, RCM, BSMI, China RoHS, Argentina S-MarkWhat's in the Box
QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord, USB cable
Replacement DC Power Supply
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.
AC Power Cable
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at at additional cost:
United States: E042259
Europe: E690013
United Kingdom: E235317Cable Kit for Replacement Cables
Elo P/N: E378229, available at additional cost.
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
USB touch cable and VGA video cable are included.
Optional Peripherals
Magnetic Stripe Reader (Dark Grey MSR) – Elo P/N: E177037
Optional Stand
Part number E245090, available at additional cost.
