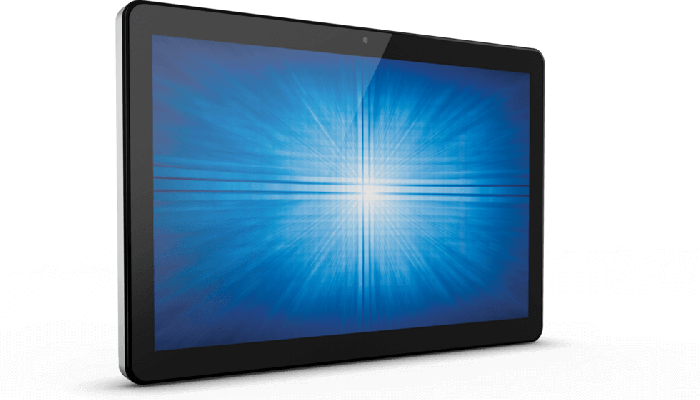

I-Series for Android 15" AiO Touchscreen (Discontinued February 2018)
How to Buy

Overview

The Elo I-Series 15-inch Android all-in-one (AiO) combines a commercial-grade touchscreen computer with the powerful Android Qualcomm® Snapdragon™ processor delivering unmatched computing speeds. The AiO system delivers commercial reliability, integrated touch, and flexible mounting options designed to survive the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments.

Combine the I-Series with Elo’s cloud-based management software, EloView® designed to simplify and automate deployment of Elo interactive displays across multiple locations. Deliver a consistent experience instantly with the EloView software-as-a-service (SaaS) platform that includes OS management (including remote and silent updates), kiosk lock-down, automatic provisioning and device management.

Endless options.

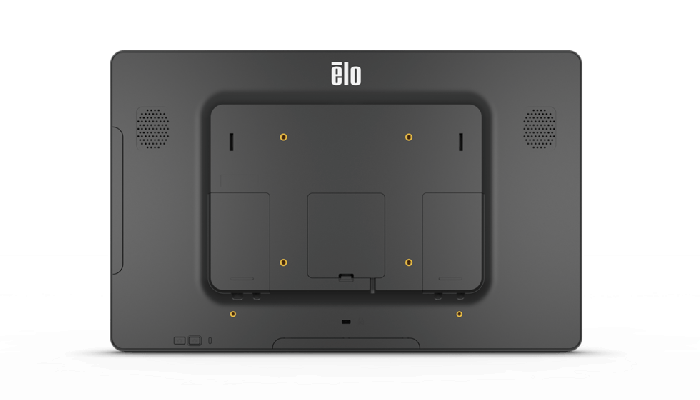

The Elo I-Series is available in 10-, 15- and 22-inch sizes, all with Elo’s TouchPro® projected capacitive multi-touch, can be flexibly VESA mounted anywhere in public spaces – in portrait, landscape or tabletop orientation. Elo provides a variety of optional wall, floor and tabletop mounts and with all cable connections at the back, they are hidden and locked away.
Optional cellular connectivity.

Choose how you want to connect - with the embedded cellular modem and SIM card or Wi-Fi/Ethernet, Elo has models for both options. With the addition of cellular on the I-Series, Elo has enabled the ability for dynamic advertising by merchandising teams, creative agencies, PoP display and fixture companies where access to other networks is difficult. Two versions with cellular connectivity are available out of the box — Vodafone for Europe and AT&T for the US market. Additionally, the I-Series device features a quad-band GSM and LTE capable modem for compatibility with many carriers around the globe, making it easy for customers to choose their other carriers through a Bring Your Own Carrier option.
Leverage content.

The I-Series for Android enables product brands and retail stores to leverage existing mobile applications and digital marketing content. With EloView, it’s easy to quickly load and lockdown a specific website, individual webpage, video or app to create self-service kiosks through an endless aisle or in-store virtual helper application – the possibilities are nearly limitless.
Configured perfection.

Create multiple points of interaction with your I-Series through Bluetooth/BLE, near field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other GPIO (General Purpose Analog I/O) accessories. Or add a stand and a customer facing display to create a seamless point of sale system.
Placement matters.

The I-Series is perfect for shelf, aisle, kiosk or point of purchase display installations to deliver mobile applications, proximity marketing, contactless payments, promotional offers, pictures, videos, infographics and other website content when and where it matters most – in-store next to the product.
Commercial grade.

The 15-inch I-Series delivers the quality and reliability Elo is known for and is backed by our 2-year standard warranty. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Professional-grade, all-in-one interactive digital signage designed for the rigors of public use
  • Full HD 1920 x 1080 display resolution
  • 2 GB RAM and 16 GB storage standard, additional storage can be added with SD-card and USB
  • Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth 4.0 (BLE) and wired Ethernet connection standard. Optional cellular connectivity available with 3G/4G
  • 2-year standard warranty. Optional extended warranty available
  • EloView management software available for kiosk lockdown, management of OS, device management and content deployment. And EloView can work with your existing MDM.
Similar products.
I-Series for Android 10-inch AiO Touchscreen
I-Series for Windows 15-inch AiO Touchscreen
1502L 15" Touchscreen Monitor
I-Series for Android 22-inch AiO Touchscreen
I-Series for Windows 22-inch AiO Touchscreen

Specifications

  • Technical

    Part Number(s)

    PCAP Wi-Fi/Ethernet (Worldwide) - E021201
    PCAP Wi-Fi/Ethernet with AT&T Cellular (USA) - E021767
    PCAP Wi-Fi/Ethernet with Vodafone Cellular (Europe) - E541788

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (Projected Capacitive) - 10 Touch

    Processor

    Qualcomm® Snapdragon™ ARM A15, quad-core 1.7GHz

    Memory (RAM)

    2GB DDR3 RAM, 16GB EMMC Flash

    OS

    Android 4.4.2

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.5" x 7.6" / 344.16mm x 193.59mm

    Resolution

    Full HD 1920 x 1080

    Number of Colors

    262,000

    Brightness (typical)

    LCD Panel: 300 nits
    PCAP: 255 nits

    Response Time-total (typical)

    35 msec

    Contrast Ratio

    700:1

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Cellular

    Cellular antennas included in the unit
    3G/4G Module (available separately)

    I/O Ports

    Micro HDMI output
    Microphone
    Micro SD slot
    3G/4G LTE (Micro SIM card holder)
    Audio output
    Gigabit Ethernet
    GPIO Support (use GPIO cable - Elo P/N: E211544)

    Peripheral Mounting

    2x MicroUSB side mount

    Webcam

    Auto exposure
    Auto Gain Control
    Sharpness/Brightness/Contrast control
    Max resolution: 1920 x 1080 30fps

    AV Capability

    Front-facing HD webcam
    Integrated Earphone Out with Microphone input
    Stereo speakers

    Ethernet Port

    1x RJ45

    Wireless

    WiFi 802.11 b/g/n

    Bluetooth

    BT 4.0 (BLE)

    Audio Ports

    Integrated Earphone Out with Microphone input

    Speakers

    Two 2W internal speakers

    Power Supply

    power adapter (included)

    Input Voltage

    110 - 240 VAC

    Power Consumption (Typical)

    ON: 16.5W
    SLEEP: 4.0W
    OFF: 0.2W

    Dimensions

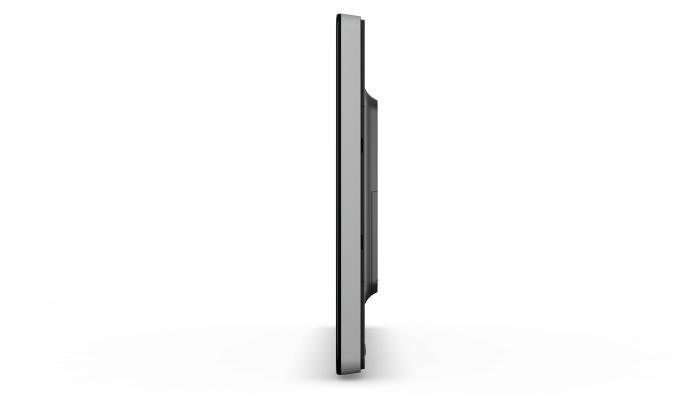

    15.2" x 9.8" x 1.2" / 386.7mm x 248.13mm x 30mm

    Shipping Box Dimensions

    18.2" x 12.9" x 6.7" / 463mm x 328mm x 170mm

    Weight (Unpackaged)

    2.9 lbs / 1.3kg

    Weight (Packaged)

    6.8 lbs / 3.1kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Regulatory approvals and declarations

    Wi-Fi only Models: UL, FCC - Class A, cUL, IC, CB, CE - Class A, CCC, SRRC, EAC, VCCI, MIC
    Cellular Models: UL, FCC, CB, CE - Class A, PTCRB, GCF

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Warranty

    2-year

    What's in the Box

    I-Series Touchscreen, Power Brick 19V/65W, North America power cable, EU/KR power cable, 2X cable clips, 2X screws for cable clips

    Replacement DC Power Supply

    Power Adapter, I-Series (Android), 19V/65W - Elo p/n: E511842

    Optional PCAP Stylus Pen

    E066148

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Reader (FPR) – Elo P/N: E001001
    Barcode Reader (BCR) – Elo P/N: E093433
    GPIO Cable - Elo P/N: E211544
    2D Barcode Scanner – Elo P/N: E926356
    EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
    EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088

    Stands, Mounts & Kits

    Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
    Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
    Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Wall Mount Bracket for 15'' & 22'' I-Series - Elo P/N: E160680
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    I-Series Cellular Kit - Elo P/N: E160869
    Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781
    Wallaby™ POS Stand (Black) - Elo P/N: E949536
    Wallaby™ POS Stand (White) - Elo P/N: E353758
