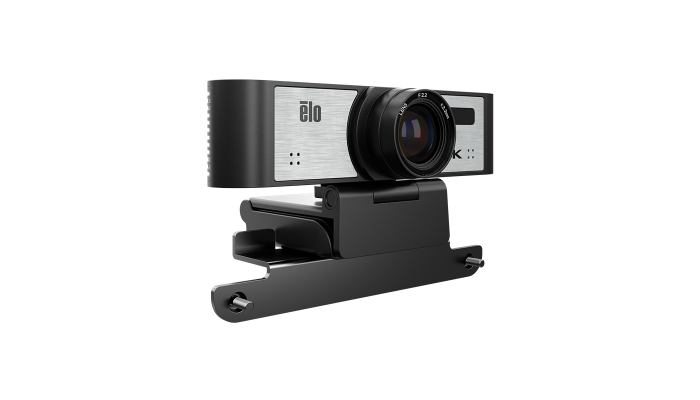

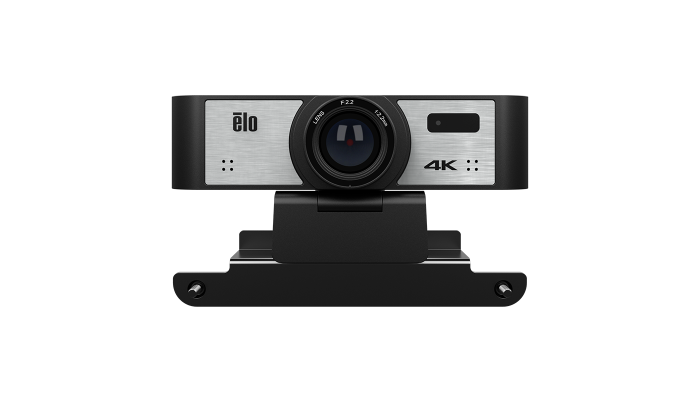

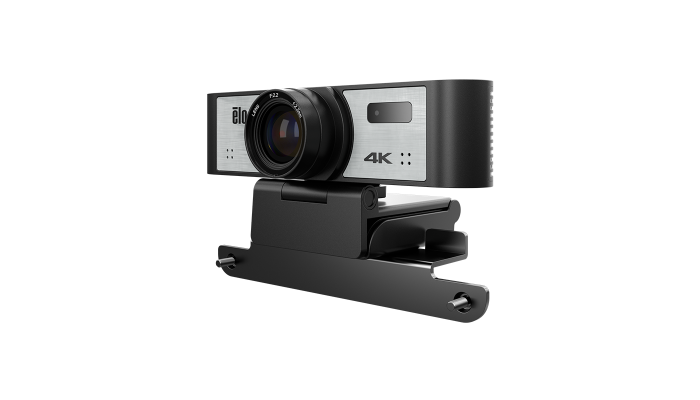

Elo 4K Conference Camera
Video conferencing
made easy.

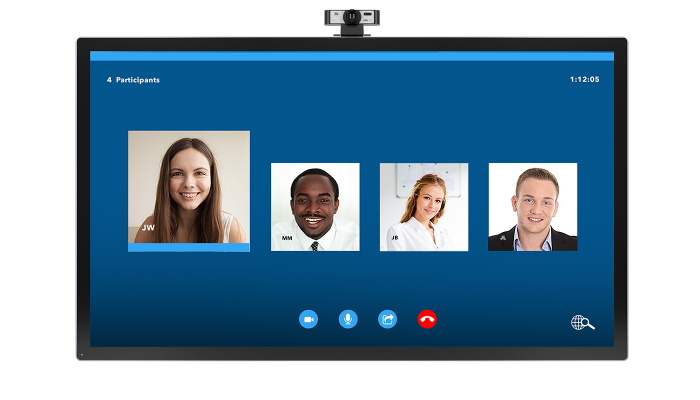

Designed for conference and huddle rooms, the Conference Camera delivers 4K video with wide viewing angles and adjustable positioning to cover any seating configuration. Simply attach the camera to your interactive display, connect to your compute device add your software and you're ready to start your meeting.
Easily adjust the
camera angle.
With an adjustable 85° tilt, you can angle
the conference camera to cover a variety
of room configurations.
Capture everyone with
wide viewing angles.
Get up and move around during your meeting
with our 110° wide angle field of view.
Ensure everything you
say is heard clearly.
The integrated microphone is designed to work
with your collaboration apps to optimize room
acoustics so attendees can hear you clearly.
Support for all major
web conferencing apps.
The Conference Camera is a UVC 1.1-
compatible device supporting all major
web conferencing applications, including
Microsoft Teams, Zoom, Cisco Webex,
GoToMeeting and BlueJeans.
The Conference Camera is compatible with video
conferencing applications on select Windows,
Android, Linux and Mac computers.
Specifications
-
Technical
Part Number(s)
E988153
Enclosure Color
Black
Compatibility
3203L, 4303L, 5053L, 5553L, 6553L
Mounting the camera to the USB2.0 port will limit compatibility to Windows, Mac, or Ubuntu (with a VLC player) and limits resolution to 720pSupported Video Resolutions
640 x 360p @30fps/25fps
720p @30fps/25fps
960 x 540p @30fps/25fps
1080p @30fps/25fps
4k @30fps/25fps
Video Format
H.264
MJPEG
YUY2
NV12Frame Rate
30fps @ UHD (4K)
Field of View
Vertical: 65° ± 5%
Horizontal: 80° ± 5%
Diagonal: 110° ± 5%Focus Type
Fixed Focus
Microphone
Beamforming Mic Array
Other Features
IR Remote control
ePTZ Feature
Auto Framing Feature
Automatic gain control
Automatic exposure control
Automatic white balance control
Automatic black level calibrationInterface
USB 3.0, Type-C
UVC Compatible
Yes - UVC 1.1
Supported Operating Systems
Windows 7 (1080p and under only) / 8.1, 10, 11 or higher
macOS 10.10 or higher
Google™ Chromebook™ Version 29.0.1547.70 or higher
Linux (support UVC)Dimensions
4.72" x 2.76" x 2.76" / 120 mm x 70 mm x 70 mm
Shipping Box Dimensions
Individual: 11.02" x 6.89" x 9.05" / 280 mm x 175 mm x 230 mm
10 box/carton: 27.44" x 8.27" x 22.09" / 697 mm x 210 mm x 561 mmWeight (Unpackaged)
0.46 lbs / 0.22 kg
Weight (Packaged)
1.65 lbs / 0.75 kg
Warranty
1-year
Optional Accessories
Replacement Remote - E157834
What's in the Box
Elo Conference Camera
Remote Control
2x M3 mounting screws
1.8m Type-C to USB-A cable
Quick Install Guide
