EloPOS™ Pack 2 with Intel
How to Buy

EloPOS Pack 2

High Performance Compute

The EloPOS Pack 2 delivers a high performance enterprise-
grade computing solution in a sleek, compact form factor.
Backed by the security and infrastructure of an Intel-
based system with the speed of 14th gen Raptor Lake
processors, the EloPOS Pack 2 provides the power you
need to run your business.

Order now
EloPOS Pack 2

Small footprint for
compact spaces.

Purpose-built to accommodate compact spaces, the
EloPOS Pack 2 boasts a smaller footprint in both
size and weight than typical commercial-grade PCs.

EloPOS Pack 2

Securely mount
with a bracket.

Easily secure the EloPOS Pack 2 to any counter in
a snap. Attach the mounting bracket to your desired
location and simply clip it into place. And for
added security, you can use the Kensington locks.

EloPOS Pack 2 with mounting bracket

The perfect pairing
for point of sale.

Easily pair the EloPOS Pack 2 with your monitor
of choice to create the perfect solution for your
self-checkout and POS lanes.

Explore touchscreen monitors
EloPOS Pack 2 with monitors

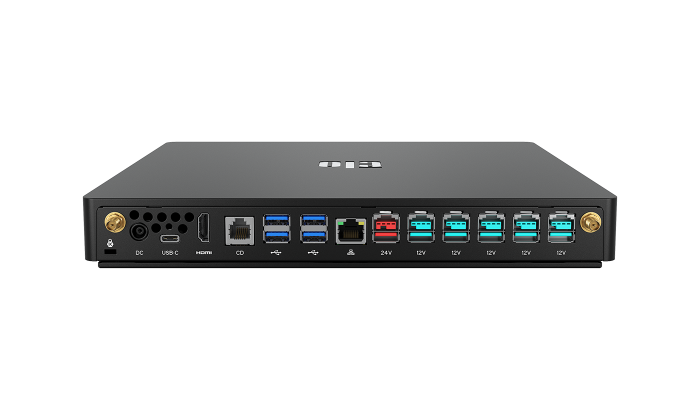

Connectivity for
your accessories.

With 17 connection ports, you can connect all the
peripherals you need. From cash drawers and printers
to barcode scanners and payment devices — there is a
port to connect it all.

  1. USB-C full featured
  2. Gigabit LAN
  3. 6x USB 3.0
  4. HDMI
  5. 1x 24V Powered USB
  6. 5x 12V Powered USB
  7. 12V/24V Cash Drawer
  8. 3.5 mm headset jack
EloPOS Pack 2

Expand possibilities
with AI processing.

Experience unparalleled AI processing power with
the EloPOS Pack 2, featuring optional Hailo Neural
Processing Engine capable of executing 50 TOPS
(trillion operations per second). Available with
select i7 processor models. (coming soon)

Reliable security
and performance.

Built with Intel 14th generation processors,
integrated Trusted Platform Modules, Intel vPro™
and the Windows 10 operating system, the EloPOS
Pack 2 delivers the dependability businesses need.

Intel vPro

Processing power
for your enterprise.

22,729
EloPOS Pack 2 - Gen 14
21,193
Gen 13 - Competitor 1
7,730
Gen 8 - Competitor 2
4,724
Gen 6 - Competitor 3
1.1 to 4.8x
Faster than typical competitors*
31,416
EloPOS Pack 2 - Gen 14
29,200
Gen 13 - Competitor 1
10,310
Gen 9 - Competitor 2
6,135
Gen 6 - Competitor 3
1.1 to 5.1x
Faster than typical competitors*

*Based on Passmark scores comparing 14th gen i5 and i7 vs the competitors current 6th, 8th, 9th, & 13th gen processors.

Support
for Linux.

For added flexibility, the EloPOS Pack 2 offers
no OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.

EloPOS Pack 2

Get peace of mind
with EloCare.

From advance unit replacement to extended
warranties, EloCare delivers service and support
from the people who know your Elo products best.

  1. Advance Unit Replacement
  2. Extended Warranty
  3. Professional Services
Learn more

Quality that
is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim
to exceed them. By integrating our technology into your operations, you are partnering
with us - and as your partner, we are committed to delivering reliable products so you
can focus on growth and innovation, confident in the knowledge that we stand behind
our products, ready to support you every step of the way.

Learn more

Specifications

  • Technical

    Part Number(s)

    Win 10, i3-14100T, 8GB, 256GB - E262004
    No OS, i5-14500T, 8GB, 256GB - E262189
    Win 10, i5-14500T, 8GB, 256GB - E262377

    Enclosure Color

    Black

    Processor

    i3: Intel® Core™ i3- 14100T Processor (12M Cache, up to 4.4 GHz by Intel® Turbo Boost Technology 2.0)
    i5: Intel® Core™ i5- 14500T Processor (24M Smart Cache, up to 4.8 GHz by In-tel® Turbo Boost Technology 2.0) Intel® vPro Support

    Chipset

    Intel Q670 Express

    Graphics

    i3: Intel UHD Graphics 730
    i5: Intel UHD Graphics 770

    BIOS

    AMI

    Active Management Technology (AMT)

    i3: N/A
    i5: Active Management Technology (Intel AMT 11.0) support

    RAID

    Intel Volume Management Device (VMD) technology for select SKUs

    Trusted Platform Module (TPM)

    TPM 2.0

    Memory (RAM)

    i3: 8GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

    i5: 8GB or 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

    NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600. Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    i3: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW

    i5: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW or 512GB M.2 PCIe (NVMe) SSD3, 320 TBW

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    Compatibility

    Select Models:
    94-Series Open Frames
    02-Series Touchscreen Monitors
    23-Series Touchscreen Monitors
    70-Series Touchscreen Monitors
    Any HDMI-capable display, without touch support

    Control Buttons

    Power

    Wireless

    802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

    Bluetooth

    Bluetooth 5.3

    I/O Ports

    1x HDMI port
    1x LAN RJ45 (Gigabit)
    2x USB 3.0 (Front side)
    4x USB 3.0 (Rear side)
    1x 24V Powered USB
    5x 12V Powered USB
    1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by internal switch)
    1x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
    1x 3.5 mm headset jack

    Antenna

    2T2R design with External SMA connector

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit

    OS Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 24VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 180W

    Power Consumption (Typical)

    ON i3: 63W (8GB DIMM/256GB SSD). Don't exceed 117W for all peripherals load.
    ON i5: 62W (8GB DIMM/512GB SSD). Don't exceed 118W for all peripherals load.
    SLEEP: <3W
    OFF BIOS EUP Disable: <2.5W
    OFF BIOS EUP Enabled: < 0.5W

    Mounting Options

    Bracket mounts to table with screws
    System slides forward to engage hooks on bracket

    Other Features

    Serviceable internal components
    Kensington Nano Security Slot
    Kensington lock slot (standard size).

    Dimensions

    10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm

    Shipping Box Dimensions

    14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm

    Weight (Unpackaged)

    5.76 lbs / 2.6 kg

    Weight (Packaged)

    10.14 lbs / 4.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 10% to 90%
    Storage: 0% to 95% (38.7℃ max wet bulb temperature)

    Real-Time Clock

    CR2450 lithium metal battery

    Storage Upgrade Options

    M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613
    M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803

    Memory Upgrade Options

    8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053
    16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237
    32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430

    MTBF

    50,000 hours demonstrated

    Regulatory approvals and declarations

    United State UL, FCC
    Canada cUL, IC
    Germany, TUV
    Europe CE
    Australia RCM
    United Kingdom UKCA
    International CB
    Japan VCCI, MIC
    China CCC, SRRC
    Mexico NOM
    RoHS CoC

    Energy Star

    Energy Star 8.0 certified configurations available

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E896120
    5 year warranty coverage - Elo P/N: E896322
    3 year warranty coverage + AUR - Elo P/N: E896699
    4 year warranty coverage + AUR - Elo P/N: E896903
    5 year warranty coverage + AUR - Elo P/N: E897104

    What's in the Box

    EloPOS Pack
    North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
    EU Power Cord (1800+/-50mm)
    Power Adapter – 180W
    USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
    HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
    USB cable (1800+/-50mm), (6 ft +/- 1 inch)
    2x SMA Antenna
    Quick Installation Guide (QIG)
