EMV Cradles (Replaced by new EMV Cradles)
How to Buy

Overview

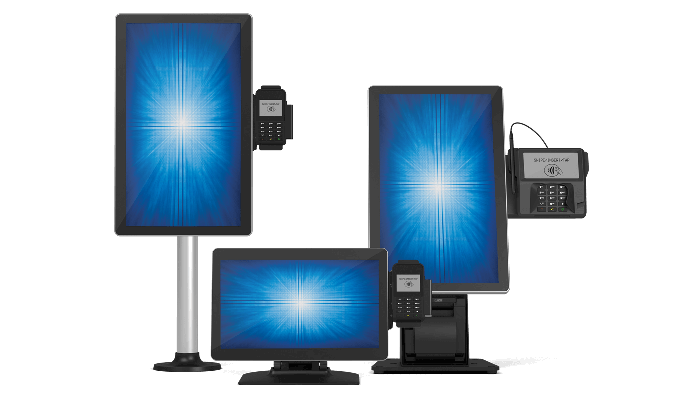

EMV payment devices require additional space and have varied mounting requirements based on your POS Terminal or self-service kiosk setup. With Elo’s fully integrated EMV cradles, mounting is simple, seamless, and secure. The cradles attach to the side of the interactive display or to the stand itself, supporting a variety of Verifone, Ingenico and MagTek payment devices. The sturdy metal design is built to withstand the rigors of continuous public use expected in retail environments. Start enabling the customer to control the checkout process with confidence and ease at any point of sale system. Creating endless aisle, product configurators, self-service, mPOS, POS applications and more is now easier than ever.

POS and kiosk management can be even easier with EloView®. A revolutionary interactive platform, EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView has got you covered. EloView software provides device setup, remote management, alerts, attract loops, and the ability to securely upgrade the operating system, applications, and content.

Specifications

  • Technical

    Part Number(s)

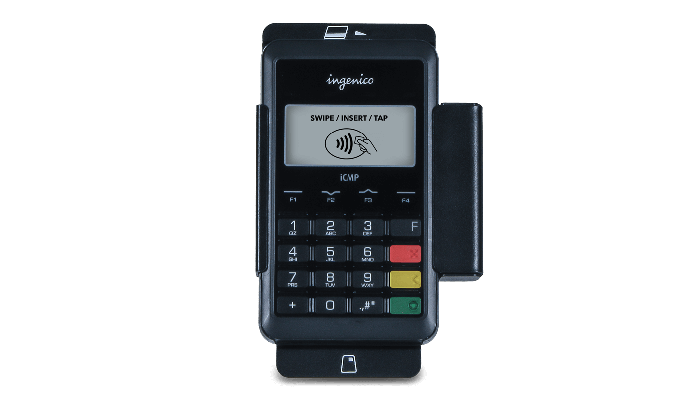

    EMV Cradle for Ingenico ICMP (I-Series, 02-Series Monitors) - E200465
    EMV Cradle for Ingenico ICMP (IDS 03-Series) - E200788
    EMV Cradle for Ingenico ICMP (PayPoint) - E953516

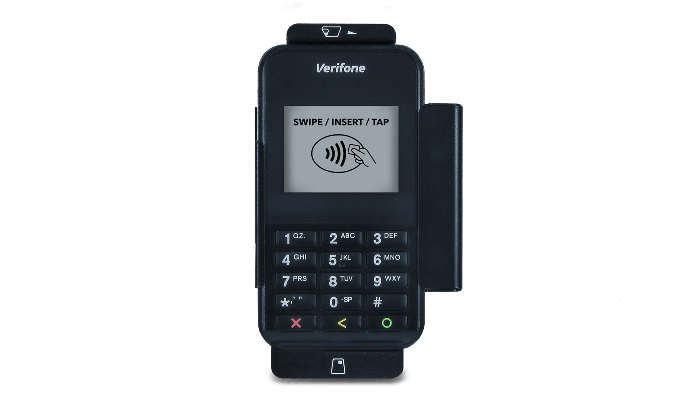

    EMV Cradle for Verifone E355 (I-Series, 02-Series Monitors) - E201088
    EMV Cradle for Verifone E355 (IDS 03-Series) - E201363

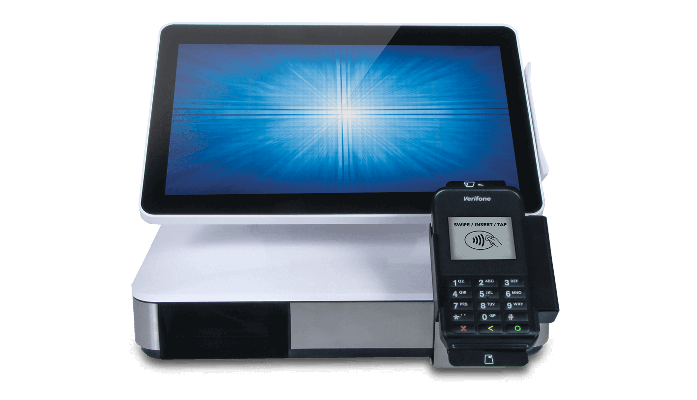

    EMV Cradle for Verifone E355 (PayPoint) - E002639

    For Wallaby Stands (E796783, E796965 + E797162) only 15" & 22" I-Series:
    EMV Cradle for Verifone MX915 & Ingenico iSC250 - E798125
    EMV Cradle for Ingenico iPP320/350/315 - E699053
    EMV Cradle for Ingenico LANE3000 – E410697

    Enclosure Color

    Black

    Compatibility

    Select EMV Cradles are Compatible with Elo Touchscreens

    E798125, E699053, E410697: I-Series 2/3 AiO Interactive Displays (15" & 22") on Wallaby Stands
    E200465, E201088: I-Series AiO Interactive Displays (10'', 15'' & 22'')
    E200465, E201088: 02-Series (1002L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L) Touchscreen Monitors
    E200788, E201363: IDS (3203L, 4303L, 5503L) Touchscreen Signage
    E953516, E002639: PayPoint (Android and Windows)

    Mounting Options

    Portrait or Landscape

    Interface

    E798125, E699053: USB for power and data
    E200465, E200788, E953516, E201088, E201363, E002639: USB for power (charging only), Bluetooth for data

    Weight (Unpackaged)

    E200465: 2.03 lbs / 0.92 kg
    E200788: 1.12 lbs / 0.51 kg
    E953516: 0.93 lbs / 0.42 kg
    E201088: 2.10 lbs / 0.95 kg
    E201363: 1.04 lbs / 0.47 kg
    E002639: 0.99 lbs / 0.45 kg
    E798125: 3.53 lbs / 1.60 kg
    E699053: 2.76 lbs / 1.25 kg

    Weight (Packaged)

    E200465: 2.29 lbs / 1.04 kg
    E200788: 1.41 lbs / 0.64 kg
    E953516: 1.19 lbs / 0.54 kg
    E201088: 2.31 lbs / 1.05 kg
    E201363: 1.43 lbs / 0.65 kg
    E002639: 1.21 lbs / 0.55 kg
    E798125: 4.17 lbs / 1.89 kg
    E699053: 3.88 lbs / 1.76 kg

    Shipping Box Dimensions

    E200465, E200788, E201088, E201363, E953516, E002639: 5.91'' x 11.4'' x 2.76'' / 150mm x 290mm x 70mm
    E798125: 17.95” x 12.24” x 4.76” / 456mm x 311mm x 121mm
    E699053: 12.80” x 14.37” x 5.71” / 325mm x 365mm x 145mm

    Operating Temperature

    0° C to 40° C / 32° F to 104° F

    Storage Temperature

    -20° C to 60° C / -4° F to 140° F

    Humidity

    Operating: 20% - 80%
    Storage: 10% - 90%

    Warranty

    3-year

    What's in the Box

    E200465, E200788, E201088, E201363: EMV Cradle, USB Cable (Type-A to micro, charging only)
    E953516, E002639: EMV Cradle, USB Cable (Type-A to micro, charging only), USB mini to Type-A adapter
    E798125, E699053: EMV Cradle, QIG, Tie-wraps, Screws
    E410697: EMV Cradle, QIG, Screws

Resources

(12)

  • Collateral

    Spec Sheet

    Go
  • Drawings and Certificates

    Dimensional Drawing - EMV Cradle for MagTek eDynamo

    Go

    Dimensional Drawing - EMV Cradle for Ingenico RP457c

    Go

    Dimensional Drawing - Wallaby™ Self-Service Stands

    Go
  • User Guides

    Quick Install Guide

    Go

    QIG - EMV Cradle for MagTek eDynamo

    Go

    QIG - EMV Cradle for Ingenico RP457c

    Go

    QIG - EMV Cradle for Verifone MX915 (E458992)

    Go

    QIG - EMV Cradle for Ingenico ISC250 (E458992)

    Go

    QIG - EMV Cradle for Ingenico Lane 3000 (E458605)

    Go

    QIG - EMV Cradle for Verifone MX925 (E352169)

    Go

    QIG - EMV Cradle for Ingenico IPP 320/350/315 (E458797)

    Go
