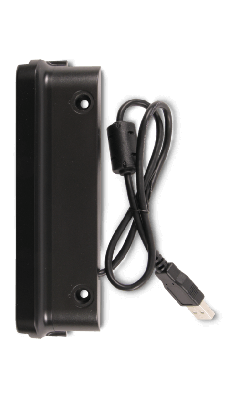

Magnetic Stripe Reader (E-Series)
How to Buy
The Elo magnetic stripe reader (MSR) for the E-Series Touchscreen Computer provides ease of collecting card data. The MSR is easy to mounted and powered through the USB port. With a swipe of the card, you can capture up to three tracks of data quickly and accurately.

Specifications

  • Technical

    Part Number

    E122229

    Enclosure Color

    Black

    Swipe Speed

    4~60 ips (10.1~152.4 cm/sec)

    Swipe Direction

    Bi-direction

    Card Width

    0.025 ~0.035 inches

    Number of Tracks

    3 tracks

    Encryption

    Non-Encrypting Level 2

    Power Supply

    5.0VDC +/- 0.25V

    Power Consumption (Typical)

    < 2.0 W

    Interface

    USB

    Supported Emulation Modes

    HID and Keyboard

    Supported Formats

    ISO 7811
    ISO 7810
    AAMVA
    CA DMV
    ANSI

    Supported Operating Systems

    Ubuntu Linux LTS
    Windows POSReady 7 32-bit
    Windows Embedded Pro 7 32-bit
    Windows Embedded Pro 7 64-bit
    Windows Industry Embedded Pro 8.1 32-bit
    Windows Industry Embedded Pro 8.1 64-bit
    Android 4.4.2

    Warranty

    2-year
