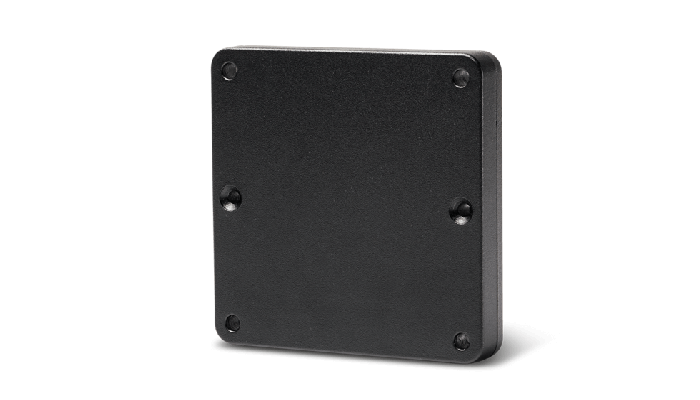

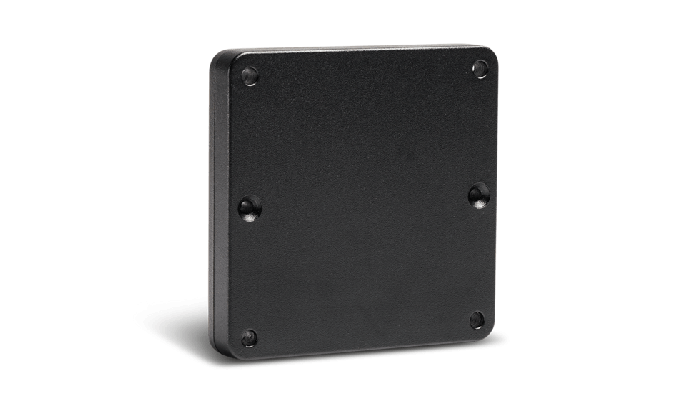

Power-over-Ethernet (POE) Module (For I-Series 2.0/3.0 for Android)
Overview

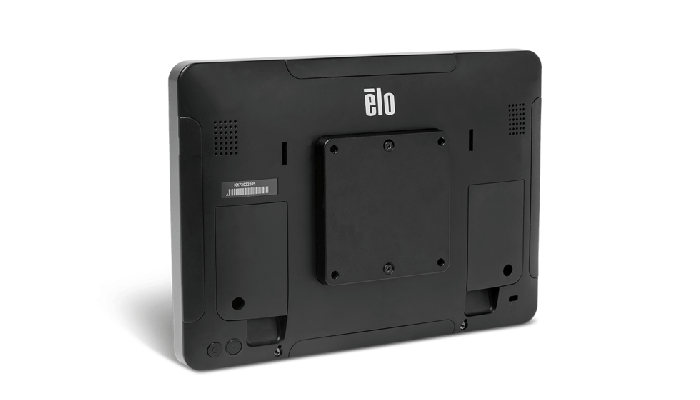

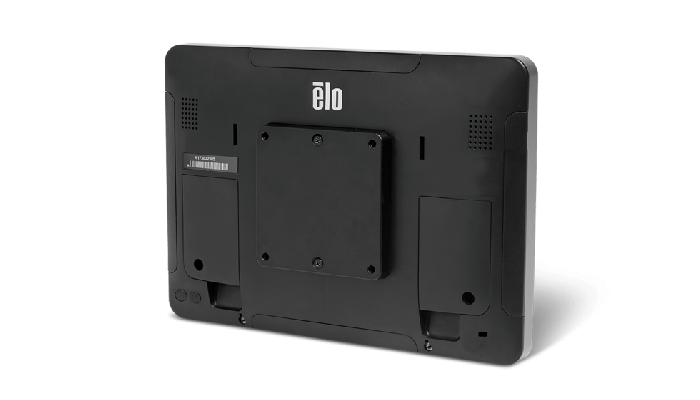

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the I-Series 2.0/3.0 for Android. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.
Available Features — When using the POE Module with the I-Series 2.0/3.0 for Android
| 10 Value |
15 Value |
10 Standard |
15 Standard |
22 Standard |
|
| Micro SD Card | Available | Available | Available | Available | Not Available |
| WiFi | Not Available | Not Available | Not Available | Not Available | Not Available |
| Bluetooth | Available | Available | Available | Available | Available |
| Camera | Not Available | Not Available | Available | Available | Not Available |
| Touch | Available | Available | Available | Available | Available |
| Audio | Available | Available | Available | Available | 50% (user selectable)* |
| Ethernet | Available | Available | Available | Available | Available |
| USB Peripheral Ports | Not Available | Not Available | 1 port (user selectable)** | 1 port (user selectable)** | 1 port (user selectable)** |
| USB 3.0 Type A | Available | Available | Not Available | Not Available | Not Available |
| HDMI Out | Not Available | Not Available | Not Available | Not Available | Not Available |
| GPIO | Available | Available | Available*** | Available*** | Available*** |
Specifications
-
Technical
Part Number(s)
E615169
Enclosure Color
Black
POE Standard Protocols
IEEE802.3, 10BASE T/1000BASE-T IEEE802.3u,100BASE-TX, IEEE802.3at, Power over Ethernet
Input Connection
POE+ (30W) - Warning: Please do not use other types of PoE such as PoE (15.4W) or UPoE (65W)
Dimensions
3.5" x 3.5" x 0.8" / 89.2 mm x 89.2 mm x 20.5 mm
Shipping Box Dimensions
6.5" x 6.3" x 2.5" / 165 mm x 160 mm x 63.5 mm
Mounting Options
Adding a spacer bracket will allow 100 mm x 100 mm VESA mounting. For more information about mounting, please review the User Manual and Quick Install Guide
Weight (Unpackaged)
0.35 lbs / 0.16 kg
Weight (Packaged)
0.70 lbs / 0.32 kg
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Warranty
2-year
Regulatory approvals and declarations
POE Module only: UL/cUL (US), IC (Canada), CE (Europe), CB (International), VCCI (Japan), RCM (Australia), KCC (Korea)
Tested with I-Series 2.0/3.0 for Android - FCC (US), China RoHS (China)What's in the Box
POE Device
Quick Install Guide
2x M3 x 16mm screws
4x M4 x 18mm flat head screws
4x M4 x 18mm pan head screws
1x POE SpacerNote
I-Series 2.0/3.0 for Android features vary when using the POE Module. Please review the datasheet for more information.
