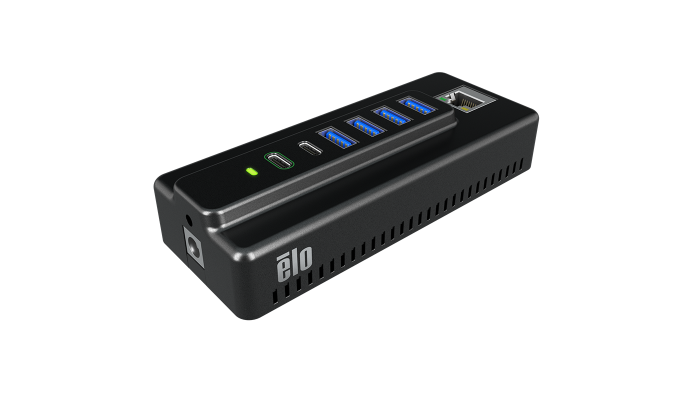

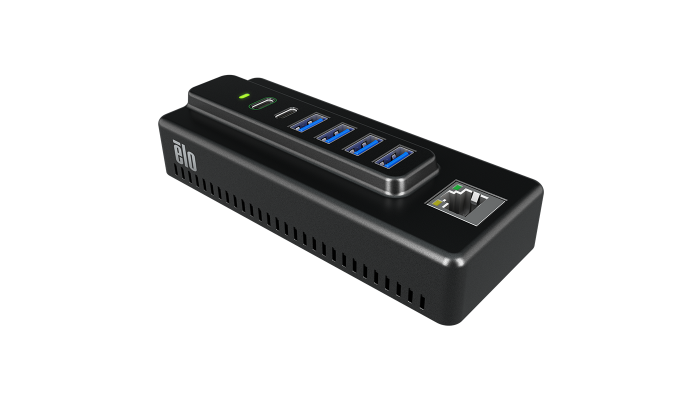

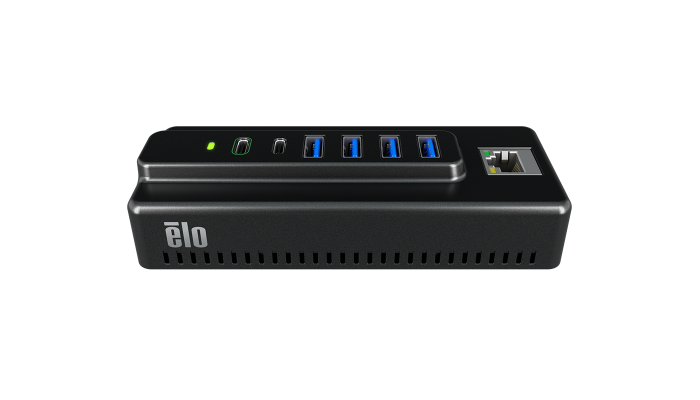

Small Hub

Specifications

• Technical

  ---

  Part Number(s)

  E815044

  Enclosure Color

  Black

  Compatibility

  M51 Mobile Computer
  Elo Pay 7”
  Elo Pay M100

  I/O Ports

  1x USB-C for the host device
  1x USB-C for the 2nd display
  4x USB-A
  1x RJ45

  Dimensions

  5.04" x 1.15" x 2.0" / 128 mm x 29.15 mm x 51 mm

  Shipping Box Dimensions

  7.95" x 3.35" x 10.51" / 202 mm x 85 mm x 267 mm

  Weight (Unpackaged)

  0.33 lbs / 150 g

  Weight (Packaged)

  3.26 lbs / 1480 g

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  5% to 95% non-condensing

  MTBF

  50,000 hours demonstrated

  Warranty

  1-year

  What's in the Box

  Small Hub
  120W power adapter with NA/EU/UK power cables
  1.8m USBC cable
  QIG
  Countertop mount option set
