Temperature Sensor Pro (Discontinued November 2023)
Temperature Screening, Simplified.

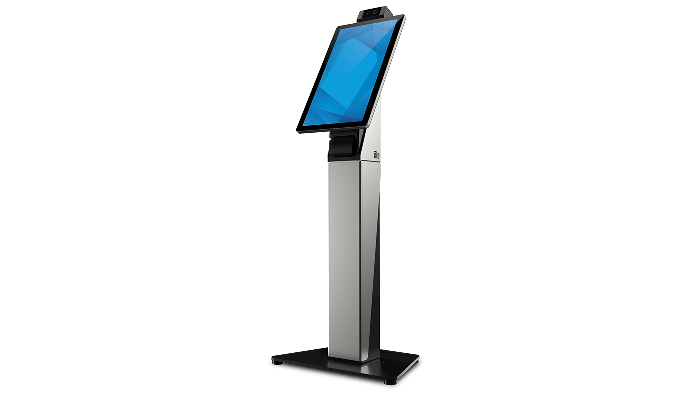

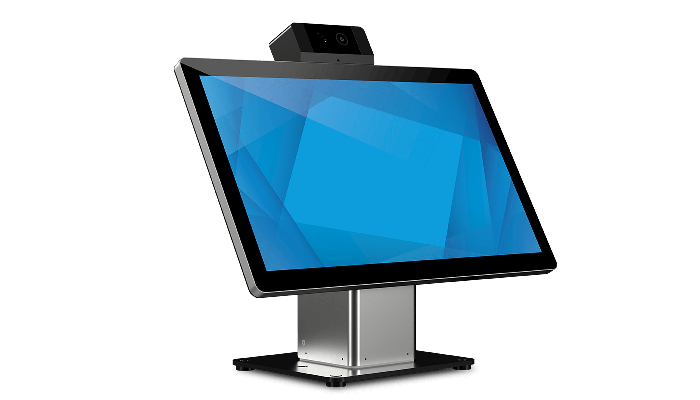

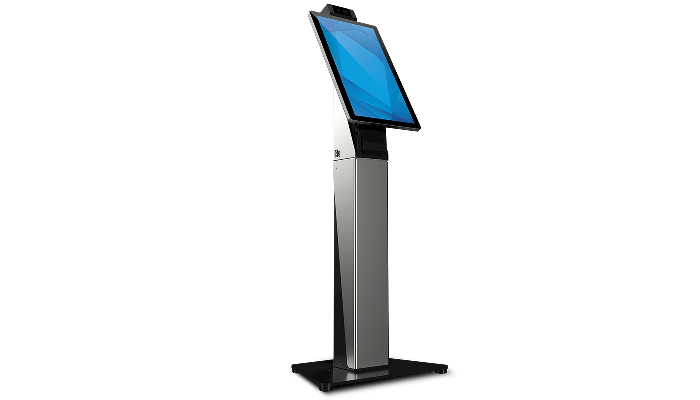

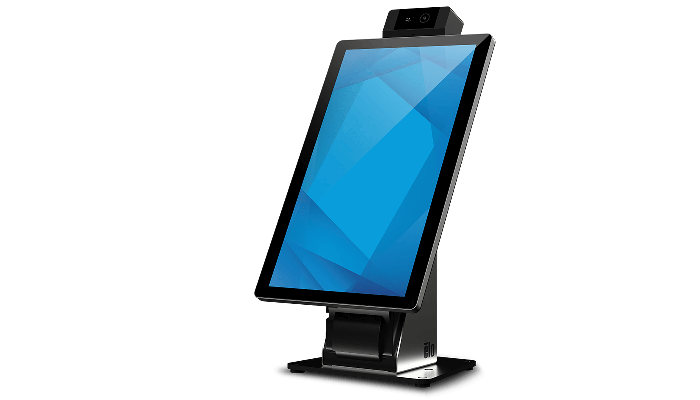

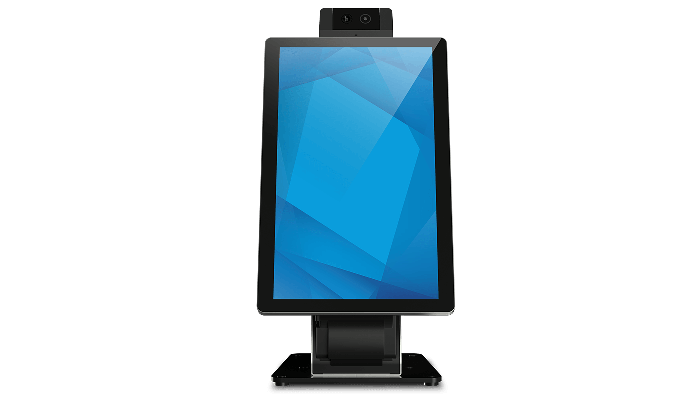

With social distancing and preventative measures being critical, organizations are implementing enhanced safety protocols to help ensure their premises are safer. Elo’s modular temperature screening hardware supports these efforts. From check-in to access control, simply pair Elo’s Temperature Sensor with a variety of displays, stands and 3rd-party software to create a contactless self-service solution purpose-built to streamline security administration and increase safety.
Benefits
Reduce Risk
Control access to public spaces by potentially high-risk individuals.
Automated Screening
Protect human resources from handling the screening process by leveraging self-service temperature kiosks.
Simplified Management
Deploy and securely manage an entire network of Elo Android-powered devices remotely with EloView - deploy content, manage settings and maintain the OS.
Modular Capability
Configure and adapt Elo’s self-service solutions with ease as needs change.
How it Works

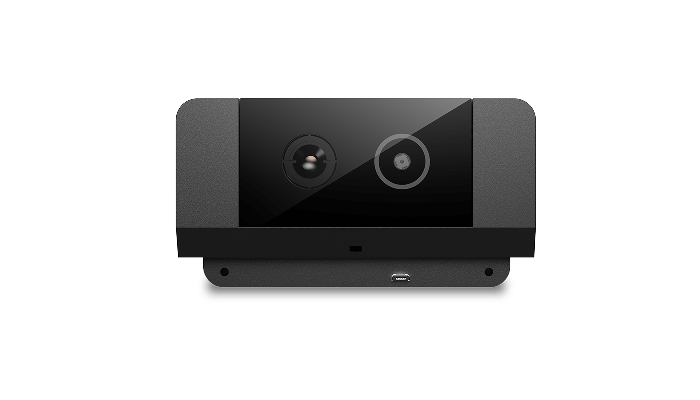

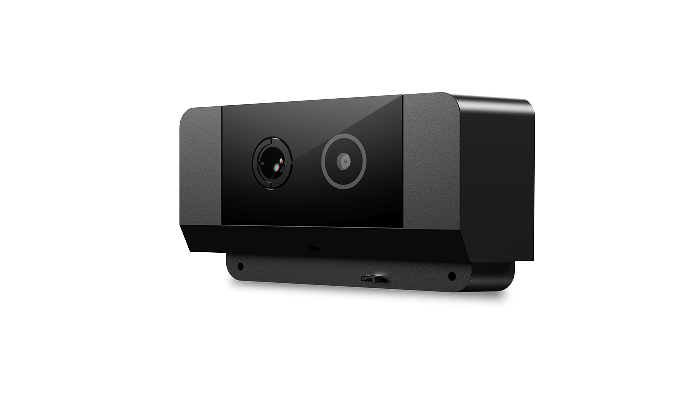

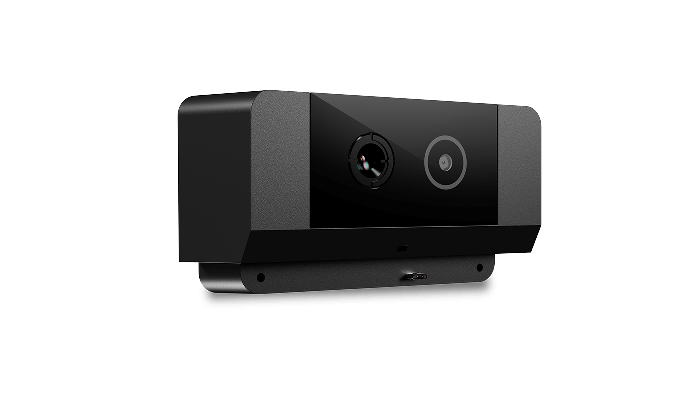

Utilizing an infrared bolometer (thermometer) and 2D camera, the Temperature Sensor Pro offers heatmap temperature reading up to 40” away with an optimal distance of 24”. With no alignment needed, the temperature sensor can detect a face, automatically adjust based on height and output temperature data for a person detected in the field of view (FOV).
Greet an individual instantly with facial detection
Automatically initiate
temperature measurement
Determine if it is appropriate for the
individual to proceed
Detect an Individual
The sensor can automatically detect whether a person is ready to be checked and with built-in intelligence, the sensor will adjust positioning based on the person’s height.
Scan
- Distance - Read temperature as far as 40" away
- Instant Results - Get results within 1 second
- Accuracy - Measured within +/- .5° C
Deliver Rapid Results
Allow personnel and guests to flow through quickly with a variety of access options. By using the data output from the temperature sensor, staff can rapidly identify whether it is appropriate for someone to proceed.
Software Integration Ready
Elo’s software-agnostic platform can easily integrate into Android- or Windows-powered applications. By leveraging Elo’s Temperature Sensor SDK, partners can create seamless communication between their software and Elo hardware.
The Elo Access Temperature Sensor is not intended to diagnose, treat, cure, mitigate, or prevent any disease or health condition, including COVID-19. An indication of an elevated body temperature should be confirmed by a secondary evaluation method (such as a non-contact infrared thermometer or clinical grade contact thermometer). Use only as directed; various environmental and methodological factors can impact thermal imaging. HIPAA compliance is responsibility of user. This product is not FDA-cleared, FDA-approved, or FDA-authorized for marketing. Not available in all areas.
Specifications
-
Technical
Part Number
E534879
Enclosure Color
Black
Compatibility
10-, 15-, 22-inch AiO I-Series for Android
15-, 22-inch AiO I-Series for Windows (2.0)
1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Monitors
3202L, 4202L, 4602L, 5502L Touchscreen SignageInterface
USB 2.0
Measurement Accuracy
+/- 0.5 ºC
Measurement Distance
12" – 40" / 30 cm – 102 cm (optimal distance: 24" / 61 cm)
Temperature Measurement Range
30 ºC to 42 ºC / 86 ºF to 108 ºF
Scan Time
<1 second
IR Camera Resolution
160 x 120
RGB Camera Resolution
5MP
Tilt Angle
+20º/-30º (auto or manual adjustment)
IR Field of View (FOV)
36º horizontal / 27º vertical
RGB Field of View (FOV)
61º horizontal / 48º vertical
Operating Temperature
10°C to 30°C / 50°F to 86°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% - 80%
Storage: 5% - 95%OS Support
SDKs available for Android, Windows 10 64bit and Linux Ubuntu 18.04 LTS
Dimensions
5.47" x 2.95" x 2.05" / 139 mm x 75 mm x 52 mm
Weight (Unpackaged)
0.7 lbs / 0.32 kg
Weight (Packaged)
1.04 lbs / 0.47 kg
Shipping Box Dimensions
7.80" x 5.04" x 3.66" / 198 mm x 128 mm x 93 mm
Warranty
2-year
Extended Service Options
2 year warranty coverage + AUR - Elo P/N: E873906
What's in the Box
IR Camera
2 Mounting screws
2 Mylar screw covers
1 Extended Micro-USB cable
QIGAvailability
US, Canada, EU, UK, Japan, Mexico, Latin America, China
