Z10 POS Stand
Complete with concealed cable routing and the flexibility to mount a customer-facing display on the back, the Z10 POS Stand delivers an elegant, minimalistic design to help optimize checkout in compact spaces.
Add the perfect touchscreen display.

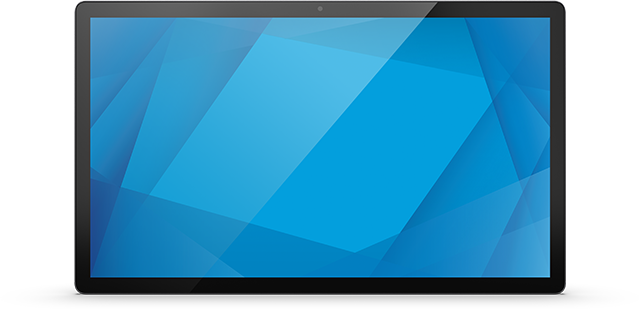

15" I-Series Slate
Optional 7-inch CFD.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB cable that provides
touch, video and power.
Specifications
-
Technical
Part Number(s)
E767159
Enclosure Color
Dark Gray Metallic
Compatibility
Main Display:
15" I-Series 3 Slate with Intel
Customer-facing Display:
0702L – Elo P/N: E796382Mounting Options
VESA 75mm
Weight (Unpackaged)
2.52 lbs / 1.14 kg
Weight (Packaged)
4.63 lbs / 2.1 kg
Dimensions
6.3" x 5.1" x 6.2" / 160 mm x 129 mm x 157 mm
Shipping Box Dimensions
10.1" x 8.8" x 8.7" / 256 mm x 223 mm x 220 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547What's in the Box
Z10 POS Stand
2x M4 x 5 screws for attaching the head to the stand
4x M4 x 18 screws for attaching a 0702L CFD
1x Hex 4X108 Allen wrench for adjusting hinge torque
1x Back Cover for CFD
Quick Install Guide
