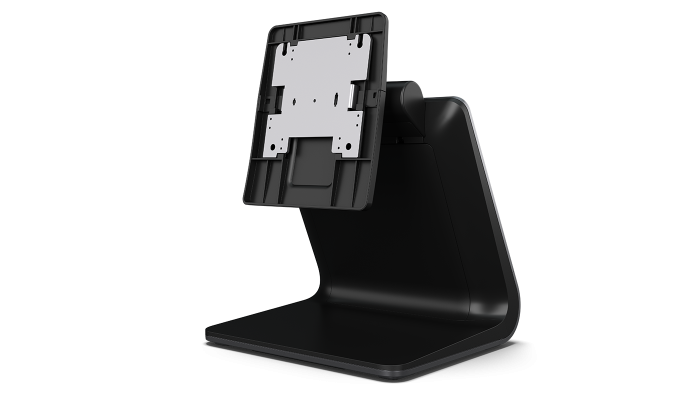

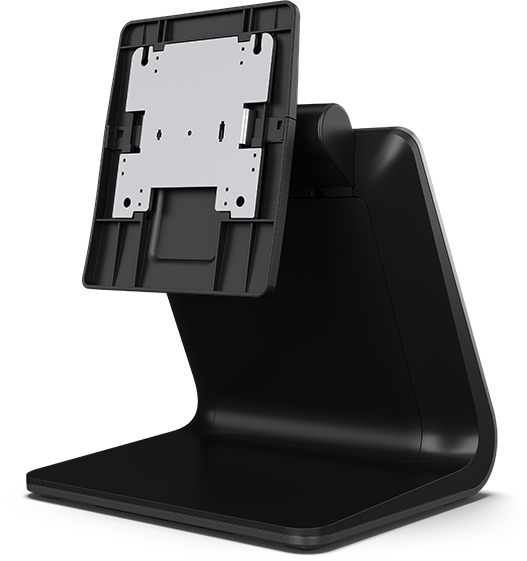

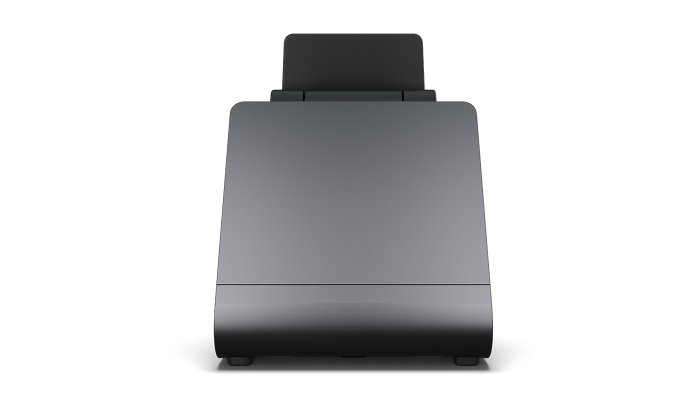

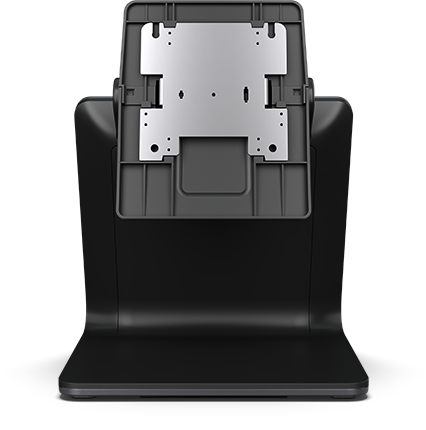

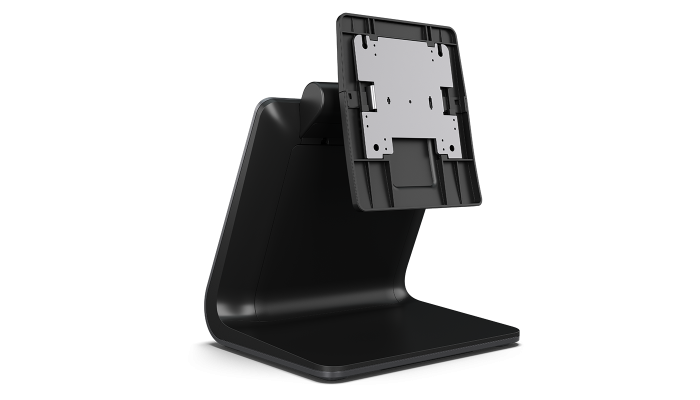

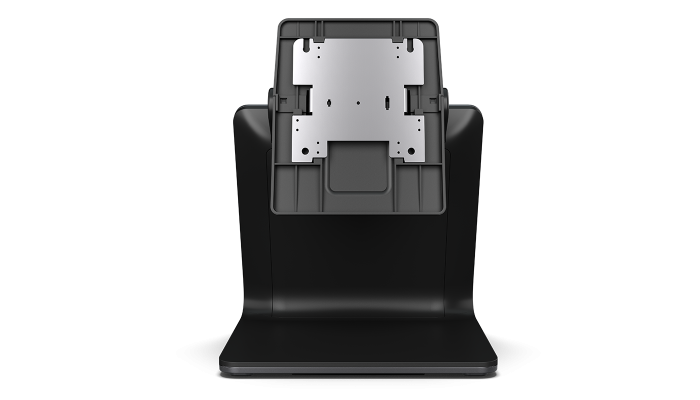

Z20 POS Stand
Complete with an integrated connectivity hub, concealed cable routing and the flexibility to either flip the main display from full service to self-service or add a fixed customer facing display on the back, the Z20 POS Stand delivers elegance to the point-of-sale.
Choose the perfect touchscreen display.

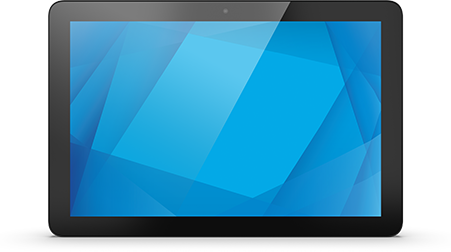

10" I-Series 4
15" I-Series 4

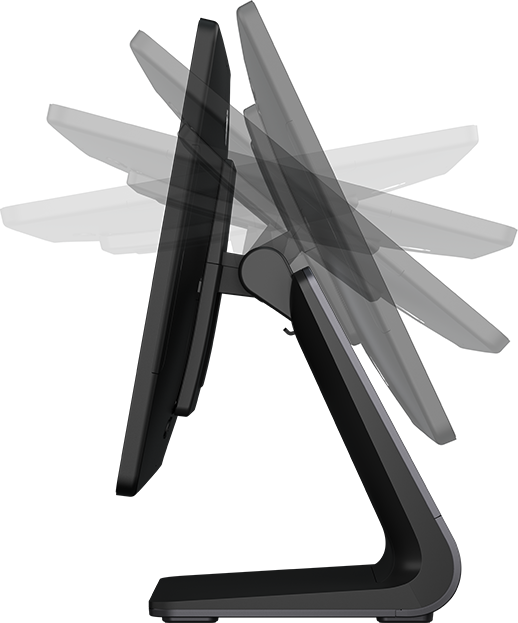

Flip the display.
Easily flip your employee facing display to provide customers with a self-service kiosk.
Add optional CFD, 10‑, 13‑ or 15‑inch.
Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.
Create your perfect POS system.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
| I/O | EloPOS Z10 | EloPOS Z20 | EloPOS Z30 |
|---|---|---|---|
| Ethernet |  |
|
|
| 4x USB-A 3.0 | |
|
|
| Cash Drawer Port | |
|
|
| 24V powered USB | |
||
| USB-C | |
||
| Edge Connect Ports** | |
| Main Display | ||||||
|---|---|---|---|---|---|---|
| I-Series 4 | |
|||||
| I-Series 4 Slate | |
|
||||
| Secondary Display | |||
|---|---|---|---|
| Integrated | |
||
| Mount for CFD | |
|
|
*RJ12 (serial/cash drawer) **On I‑Series 4
EloPOS Z10
Compatible with the 15‑inch I‑Series Slate
I/O
-
Ethernet
-
4x USB-A 3.0
Secondary Display
-
Optional 7-inch CFD.
EloPOS Z20
Compatible with the 10‑ & 15‑inch I‑Series 4
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
USB‑C
-
Edge Connect Ports**
Secondary Display
-
Optional 10‑, 13‑ or 15‑inch CFD.
EloPOS Z30
Compatible with the 15‑inch I‑Series Slate.
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
24V powered USB
-
USB‑C (non-CFD model)
Secondary Display
-
Choose integrated CFD; or no CFD in stand.
*RJ12 (serial/cash drawer) **On I‑Series 4
Specifications
-
Technical
Part Number(s)
E809321
Enclosure Color
Dark Gray Metallic/Black
Compatibility
Main Display
10" or 15" I-Series 4
Customer-facing Display
USB-C Touchscreen Monitors
1002L – Elo P/N: E155834 and E324341
1302L – Elo P/N: E683595 and E683787
1502L – Elo P/N: E125496I/O Ports
DC input
4 x USB-A 3.0 Port (900mA)
RJ12 (serial/cash drawer) 12/24V - User will need to select the mode
Ethernet LAN (Gigabit) - Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD
USB-C output - CFD (DisplayPort, Touch and Power Delivery up to 27W) - USB speeds will be reduced to 2.0 speeds when DisplayPort video is being output.Pre-Wired Cables
19VDC cable to I-Series
USB-C cable to connect to I-SeriesWeight (Unpackaged)
5.9 lbs / 2.7 kg
Weight (Packaged)
12.8 lbs / 5.8 kg
Dimensions
7.6" x 10.0" x 6.7" / 194 mm x 255 mm x 169 mm
Shipping Box Dimensions
12.2" x 12.6" x 12.6" / 310 mm x 320 mm x 320 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
Hinge Life Rating
5000 flips
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547Regulatory approvals and declarations
FCC (US)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)What's in the Box
Z20 POS Stand
8 x M4x10 Flat-head Screw (in bag “A”)
2 x M4x6 Pan-head Screw (in bag “B”)
Screw-height tool
Installation Guide
0.3m USB-C to USB-C cable (to provide USB and Video signals to the CFD)
150W Power Brick
North American Power Cable
European Power Cable
Tie wrap
VESA Cover, Bottom, 15”
VESA Cover, Top, 15”
VESA Cover, Bottom, 10”
VESA Cover, Top, 10”
Base Plate – for mounting to a countertop
