Elo Backpack®
with Android Open Source (Replaced by Backpack 4)

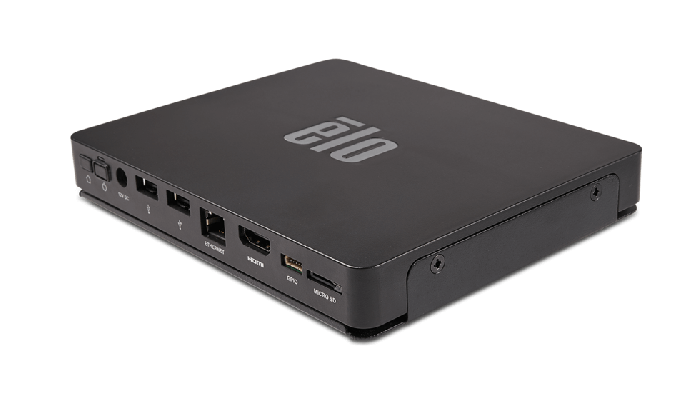

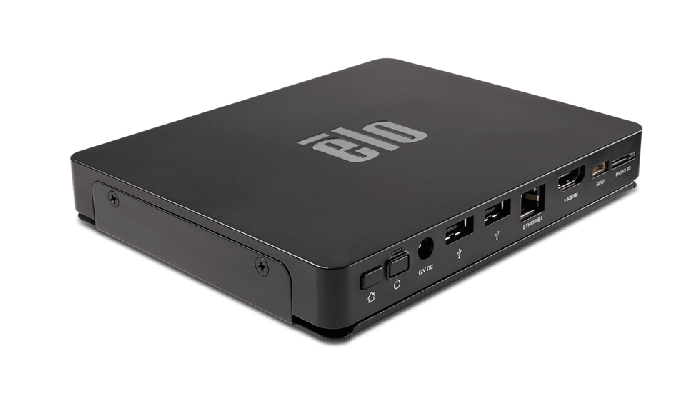

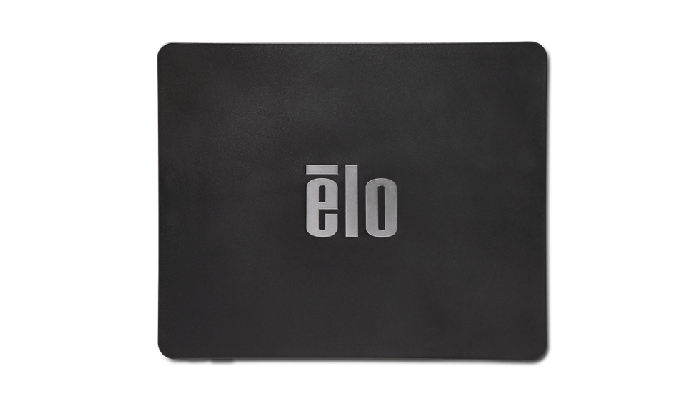

Elo Backpack
The Elo Backpack Android compute engine transforms touchscreen monitors and signage displays into commercial-grade systems capable of running audio and video content, interactive HTML webpages and Android-based apps. Users can easily scale our commercial Android platform to many sizes and form factors enabling a consistent deployment that is cost effective and optimized for commercial use. The Backpack also supports industry-leading peripherals for scanning, payment, printing and biometric input. With potential to revolutionize the kiosk architecture, the compute engine simplifies delivery of content and enables remote management capabilities via the EloView® portal.
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Android Kiosk 2.0 - Scalable & Easy to Deploy
With the Elo Backpack, we are introducing kiosk integrators to a new architecture that will lower costs, improve scalability and simplify creation of customized kiosks. Elo’s Kiosk 2.0 architecture introduces a low-power, solid state fan-less computing solution with the capability to scale deployments and remotely manage kiosks out-of-the-box. Combined with Elo’s brilliant commercial-grade touch monitors, integrators can now transform what was a bulky, highly customized kiosk into a sleek and modern design.
Creating beautiful self-service solutions and deploying a kiosk network is now easier than ever!
Add Android Computing to Elo Touchscreens
The Elo Backpack is compatible with select Elo touchscreen digital signage, desktop monitors, kiosk open-frames, and any HDMI-capable display (without touch support).
Interactive
Digital Signage
Open Frame
Touchscreen Displays
Touchscreen Monitors
HDMI
Capable Display
Power to Perform
Processor
I/O Connectivity
Integrate with EloView

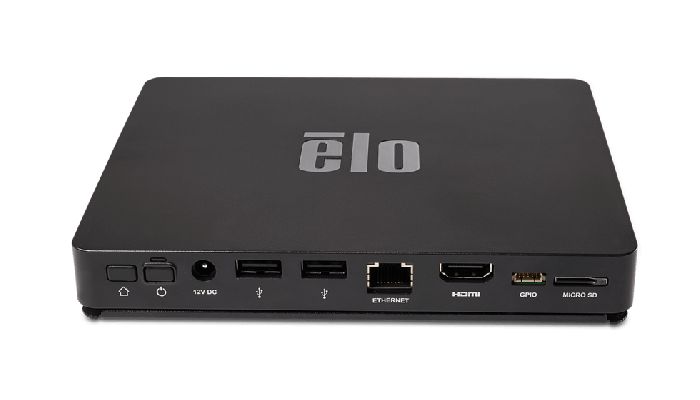

Connections
By combining an Elo touchscreen monitor with the Elo Backpack
connectivity options increase.
1x RJ45
(Ethernet)
2x Type A
USB 2.0
1x Micro
SD Support
GPIO
(2 input & 1 output)
Bluetooth with
iBeacon
1x HDMI
output
Wi-Fi 802.11
b/g/n/ac
Transforming How Businesses Manage Digital Experiences
EloView allows you to deploy and securely manage your entire network of Android-powered interactive signage, point-of-sale systems and kiosk - from anywhere around the world. You can deploy content, manage settings and maintain the OS to reduce operating costs while increasing up-time and security.
The EloView architecture also allows you to leverage your content investments in mobile and web assets. Simply push your apps and responsive websites via the EloView portal. EloView's modular system is designed to integrate your business to enable smarter content distribution and device management abilities alongside your existing CMS platforms and MDM tools.
Provisioning
Service
OS
Management
Content
Delivery
Device
Management
Account
Management
Similar Products:
Specifications
-
Technical
Part Number(s)
E611864
Enclosure Color
Black
Processor
Qualcomm Snapdragon APQ8053 2.0GHz Octa-Core Processor
Memory (RAM)
2GB DDR3L
Storage
16GB SSD
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.Compatibility
Select Models:
90-Series Open Frames (SAW & PCAP) – 1093L, 1291L, 1590L, 1593L, 1790L, 1990L, 1991L, 2094L, 2293L, 2294L, 2295L, 2494L, 2495L, 2794L, 2796L
Large Format Open Frames – 3243L, 4243L, 4343L, 5543L
Touchscreen Signage – 3202L, 3203L, 4202L, 4602L, 5502L, 5553L/6553L (supports a maximum resolution of 1920 x 1080), 7001LT
02-Series Touchscreen Monitors – 0702L, 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L
Any HDMI-capable display, without touch supportNumber of Touches
Depends on the touch monitor being used
Max of 16 simultaneous touchesControl Buttons
Power, Home
Wireless
802.11 b/g/n/ac
Bluetooth
Bluetooth 4.1
I/O Ports
HDMI output, 2x USB 2.0 Ports, MicroSD card slot, Ethernet 1x LAN (Gigabit), GPIO
OS
Android 7.1 with EloView content deployment and management
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
ON: 4.2W
OFF: 3.8W
SLEEP: 0.12WMounting Options
See details for mounting in the User Manual and Quick Install Guide
Dimensions
6.50" x 5.34" x 0.94" / 165 mm x 136 mm x 24 mm
Shipping Box Dimensions
Individual System: 13.2" x 7.7" x 3.0" / 335 mm x 196 mm x 75 mm
8 systems/carton: 16.2" x 12.6" x 15.0" / 412 mm x 320 mm x 375 mmWeight (Unpackaged)
1.2 lbs / 0.53 kg
Weight (Packaged)
Individual System: 2.4 lbs / 1.1 kg
8 systems/carton: 22.7 lbs / 10.3 kgOperating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Real-Time Clock
lithium coin cell battery
Regulatory approvals and declarations
UL/cUL, FCC (US), IC (Canada), CE (Europe), CB (International), CCC, SRRC, China RoHS (China), VCCI, MIC (Japan), RCM (Australia), KCC (Korea), NOM (Mexico), BIS (India), EAC (Russia)
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E895914
4 year warranty coverage - Elo P/N: E896120
5 year warranty coverage - Elo P/N: E896322
2 year warranty coverage + AUR - Elo P/N: E896513
3 year warranty coverage + AUR - Elo P/N: E896699
4 year warranty coverage + AUR - Elo P/N: E896903
5 year warranty coverage + AUR - Elo P/N: E897104What's in the Box
Elo Backpack Android Engine
North America AC adaptor head
European AC adaptor head
China AC adaptor head
Quick Install GuideOptional Accessories
Elo Backpack Mounting Bracket - Elo P/N: E802593
GPIO - Elo P/N: E211544
