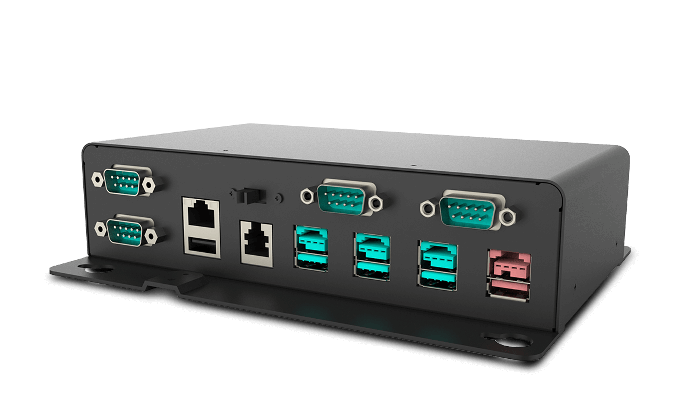

Expansion Module for Windows

Specifications

• Technical

  ---

  Part Number(s)

  USB Expansion Module Kit - E990645

  Enclosure Color

  Black

  Compatibility

  Hardware compatible with any Elo touchcomputer running Windows 7 or Windows 10

  Note: Expansion Module can only be used with the power brick included in the kit.

  I/O Ports

  3x 12V (1.5A) Powered USB, 24V (2.3A) Powered USB, 4x USB to Serial COM Ports (DB9), 5V USB 2.0, USB to LAN Port, 12/24V Cash Drawer Port, 19V DC IN, USB to host connector

  Dimensions

  7.4" x 5.79" x 1.91" / 188mm x 147mm x 48.5mm

  Shipping Box Dimensions

  13.5" 15.35" x 12.2" x 3.35" / 390mm x 310mm x 85mm

  Mounting Options

  Mounted under the table

  Weight (Unpackaged)

  1.9 lbs / 0.86 kg

  Weight (Packaged)

  4.63 lbs / 2.1 kg

  Operating Temperature

  0°C to 35°C / 32°F to 95°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Regulatory approvals and declarations

  UL, FCC (US) - Class B; cUL (Canada); CB (International safety); CE (Europe) - Class B; VCCI (Japan); RCM (Australia); China RoHS

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  What's in the Box

  150W power brick
  Power cable (1.8 m) IEC 60320-C5 to NA plug
  Power cable (1.8 m) IEC 60320-C5 to EU/KR plug
  Expansion hub cable (USB 2.0 type-A to type-B)
  2x Hub brackets, 2x screws x 2
