Windows Computer Modules (ECMG2C) for IDS 02-Series (Discontinued August 2018)
How to Buy

Overview

The Elo Interactive Digital Signage (IDS) touch platform featuring the Intel® Core™ 4th Generation CPUs with enhanced graphic engines enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage - the power of touch.

Commercial-grade.

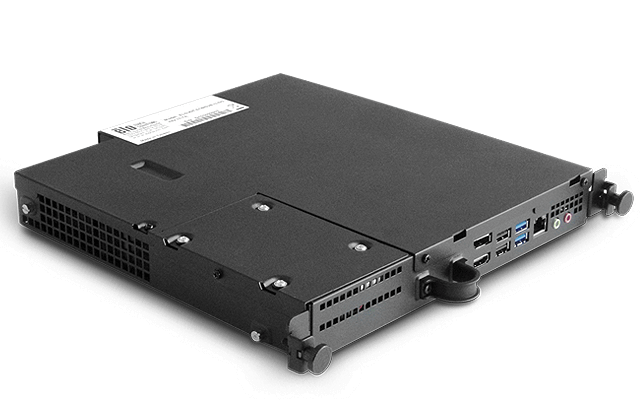

Elo's ECMG2 computer modules, available for use with the Elo 3202L, 4202L, 4602L and 5502L IDS touchscreens are well-suited for interactive media delivery and online collaboration for modern office environments. The computer modules are easily installed into the IDS display – avoiding costs of in-wall installation of a traditional player or PC.



Powerful processing.

Computer modules are available in a choice of three models: ECMG2-i3 based on a 3.40GHz Intel® Core i3 processor and HD4400 graphics; ECMG2-i5 based on a 3.70GHz Intel® Core i5 processor and HD4600 graphics; and ECMG2-i7 based on a 4.00GHz Intel®Core i7 processor and HD4600 graphics.
Reliability.

Centralized management and security capabilities of Microsoft® Windows® ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications. The ECM can also support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to-device or web connections.



Specifications

  • Technical

    Part Number(s)

    i3 3.40GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E333775
    i3 3.40GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E333965
    i3 3.40GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E334168
    i3 3.40GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E991367
    i5 3.70GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E334358
    i5 3.70GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E334542
    i5 3.70GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E334744
    i5 3.70GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E991988
    i7 4.00GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E334949
    i7 4.00GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E335147
    i7 4.00GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E335345
    i7 4.00GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E992401

    Enclosure Color

    Black

    Processor

    Intel® Core™ i3:
    i3-4130 3.40 GHz
    3MB Intel Smart Cache
    5 GT/s DMI

    Intel Core i5:
    i5-4590S 3.70GHz
    6MB Intel Smart Cache
    5 GT/s DMI

    Intel Core i7:
    i7-4790S 4.00GHz
    8MB Intel Smart Cache
    5 GT/s DMI

    Chipset

    Intel® H81 Chipset

    Graphics

    i3: Intel HD 4400
    i5: Intel HD 4600
    i7: Intel HD 4600

    BIOS

    AMI

    Memory (RAM)

    i3: 2GB DDR3L SO-DIMM on 1 of 2 slots
    i5: 4GB DDR3L SO-DIMM on 1 of 2 slots
    i7: 8GB DDR3L SO-DIMM on 1 of 2 slots

    Storage

    For Windows Pro 7 & No OS Models:
    320 GB 2.5” SATA 4K Hard Disk Drive (HDD)

    For Windows 10 Models:
    128 GB 2.5” SATA Solid State Drive (SSD)

    Max/Slot

    8 GB DDR3L SO-DIMM per slot

    USB Ports

    2 x USB 2.0 Type A
    2 x USB 3.0 Type A

    Ethernet Port

    1GB LAN RJ45

    Audio Ports

    1 x 3.5 mm Line out
    1 x 3.5 mm MIC in

    Video Out

    1 x HDMI (UHD/4K capable)
    1 x DisplayPort (UHD capable)

    OS

    No OS
    Windows Pro 7*
    Windows 8.1
    Windows 10

    OS Languages

    Windows 7: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian

    Windows Embedded 8.1: 10 pre-installed language groups: Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Korean, Russian, Spanish

    Power Supply

    Power supplied by Elo's interactive digital signage display

    Dimensions

    power module + computer module: 11.81” x 16.85” x 1.46” / 300mm x 428mm x 37mm

    Shipping Box Dimensions

    power module + computer module: 16.5” x 21.0” x 5.12” / 419 mm x 535mm x 130mm

    Weight (Unpackaged)

    6.47 lbs / 2.93kg

    Weight (Packaged)

    10.75 lbs / 4.88 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Regulatory approvals and declarations

    UL, cUL , FCC, IC, CE, VCCI, BSMI, RCM, International CB

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty for i3 EMC1 and ECMG2 - P/N: E330676
    1 Year Extended Warranty for i5 EMC2, ECM3 and ECMG2 - P/N: E126594
    2 Year Extended Warranty for i3 EMC1 and ECMG2 - P/N: E159751
    2 Year Extended Warranty for i5 EMC2, ECM3 and ECMG2 - P/N: E770396

    Optional Product Coverage

    Advance Unit Replacement program (North America only)
    Extended Warranty (North America and EMEA only)

    *Windows 7 License

    Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 8.1 or Windows 10 at no additional charge. These systems include an upgrade to Windows 8.1 or Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.

Configurations

(12)

Refine your search:
Compare Compare
Image of item
E333775
  • Compatible with IDS 02-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • No OS
Compare Compare
Image of item
E333965
  • Compatible with IDS 02-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • Windows 7*
Compare Compare
Image of item
E334168
  • Compatible with IDS 02-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • Windows 8.1
Compare Compare
Image of item
E334358
  • Compatible with IDS 02-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • No OS
Compare Compare
Image of item
E334542
  • Compatible with IDS 02-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • Windows 7*
Compare Compare
Image of item
E334744
  • Compatible with IDS 02-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • Windows 8.1
Compare Compare
Image of item
E334949
  • Compatible with IDS 02-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • No OS
Compare Compare
Image of item
E335147
  • Compatible with IDS 02-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • Windows 7*
Compare Compare
Image of item
E335345
  • Compatible with IDS 02-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • Windows 8.1
Compare Compare
Image of item
E991367
  • Compatible with IDS 02-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 128GB SSD
  • 2GB
  • Windows 10
Compare Compare
Image of item
E991988
  • Compatible with IDS 02-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 128GB SSD
  • 4GB
  • Windows 10
Compare Compare
Image of item
E992401
  • Compatible with IDS 02-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 128GB SSD
  • 8GB
  • Windows 10
No Configurations found.
