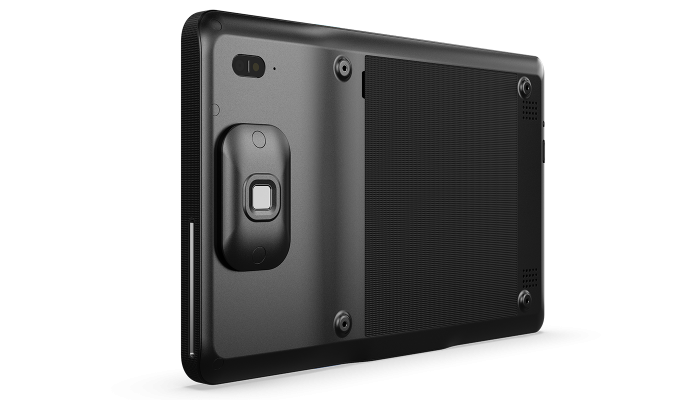

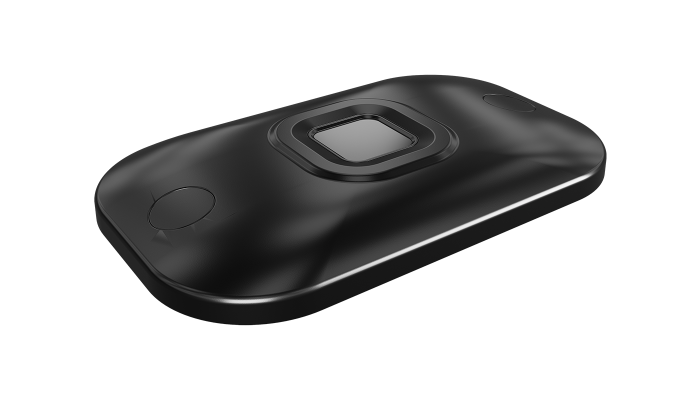

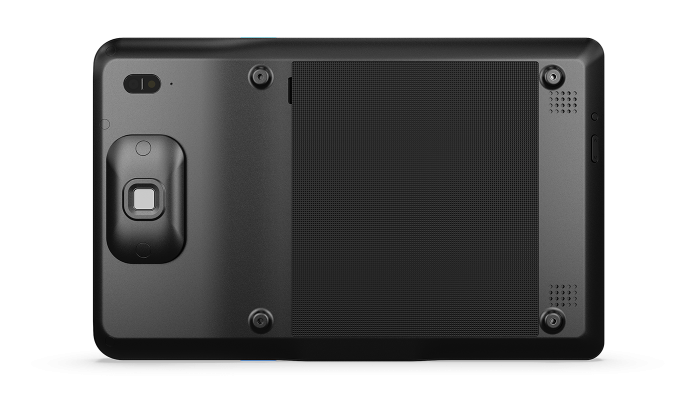

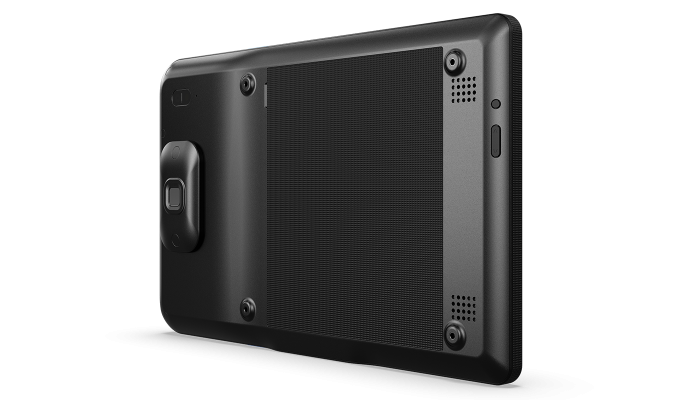

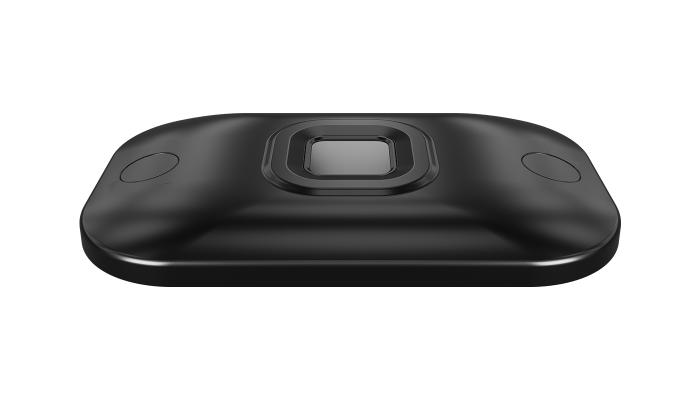

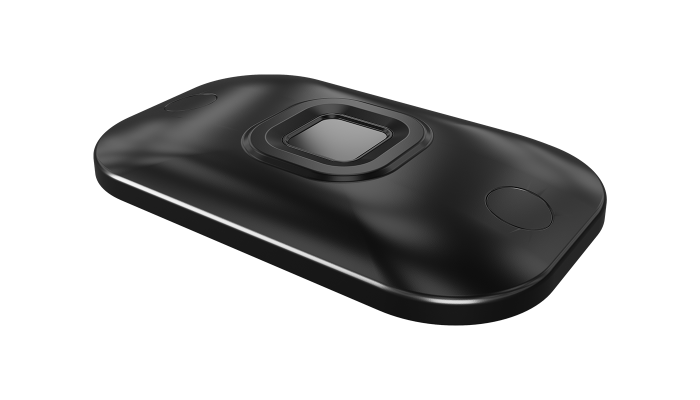

Elo Pay M100 Fingerprint Reader

Specifications

• Technical

  ---

  Part Number(s)

  E121016

  Compatibility

  Elo Pay M100 non-scanner models

  Resolution

  508 dpi

  Dimensions

  2.52" x 1.54" x 0.48" / 64 mm x 39 mm x 12.1 mm

  Shipping Box Dimensions

  2.80" x 2.40" x 0.87" / 71 mm x 61 mm x 22 mm

  Weight (Unpackaged)

  0.024 lbs / 11 g

  Weight (Packaged)

  0.042 lbs / 19 g

  Operating Temperature

  -20°C to 50°C / -4°F to 122°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  5% to 95% non-condensing

  Warranty

  1-year

  What's in the Box

  Fingerprint Reader
  2x Pan Head screws: M2.5 x 4mm
  2x Black plugs
  QIG
