Tablet 10" Touchscreen (Discontinued April 2018)
Overview
The 10.1-inch Elo touchscreen tablet is designed to help retailers enhance their customer experience and drive sales efficiency through a point-of-service (POS) and point-of-information (POI) platform that is portable, intuitive, reliable and secure. Running Microsoft® Windows® and featuring an Intel® Atom™ processor with solid-state drive, the tablet has been purpose-built to support leading point-of-sale software environments and the mobile POS (mPOS) initiatives embraced by leading retailers. This is a tablet with all the centralized management and security capabilities of the Windows environment, in a commercial form factor that reduces theft risk.
Retail ready.With the integrated magnetic stripe reader (MSR) and barcode reader, retailers now have a platform that can enable self-service. |
 |
 |

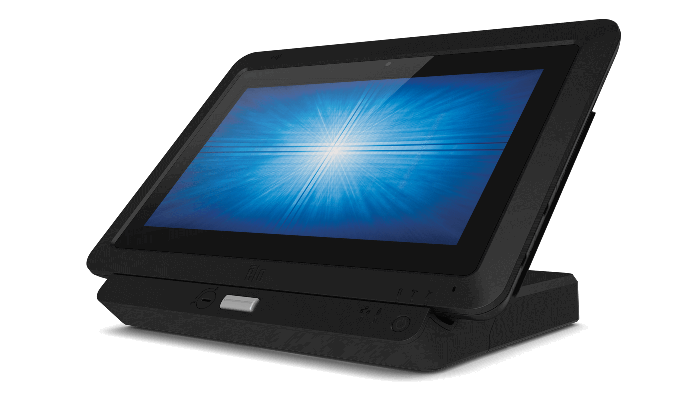

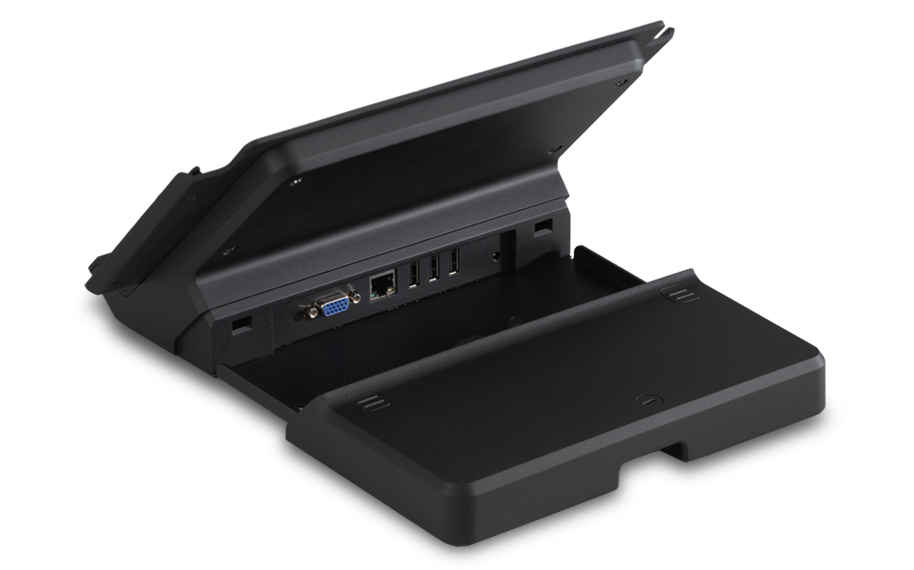

Expand connections.An optional accessory docking station provides connectivity to a broad array of peripheral interfaces while also charging the main battery and an auxiliary battery pack simultaneously. |

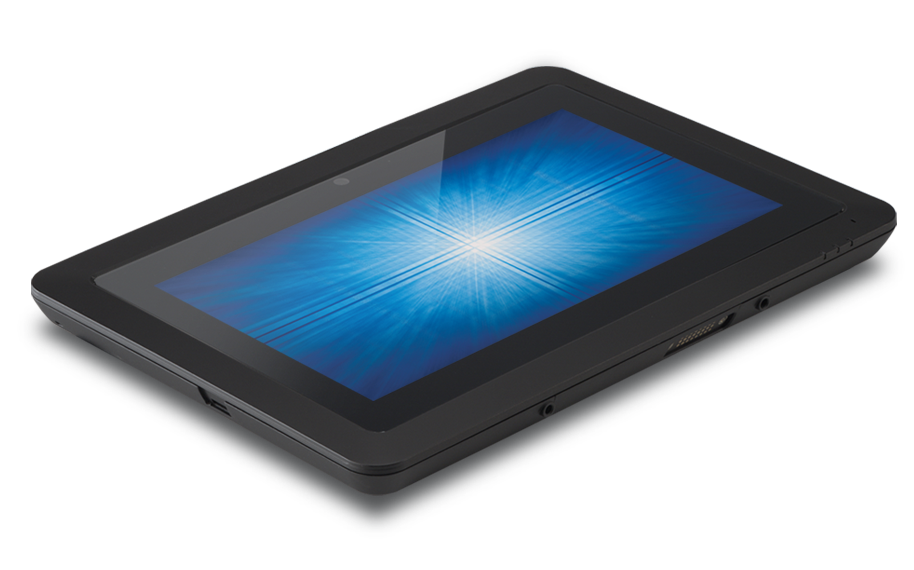

Compact design.Compact form factor has been designed for public use and can withstand being dropped. |
 |
Other features.
- Rugged & connected
- Integrated MSR, Barcode Reader, and Smart Card Reader
- 1366x768 LCD Display
- Wi-Fi, Bluetooth, NFC and RFID
- Docking station with Ethernet, 3 x USB, VGA and additional battery charging
- USB connectivity to external peripherals
Specifications
-
Technical
Part Number(s)
PCAP Win7 - E806980
PCAP No OS - E489570Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - up to 4 touches
Diagonal Size
10.1'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
8.74" x 4.92" / 222mm x 125mm
Resolution
1366 x 768
Brightness (typical)
LCD Panel: 380 nits
PCAP: 335 nitsResponse Time-total (typical)
25 msec
Number of Colors
262,000
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Processor
Intel Atom N2600 Dual Core 1.6GHz
Chipset
Intel NM10
BIOS
Phoenix
Memory (RAM)
2GB DDR3 1066MHz
Hard Disk Drive
32GB mSATA SSD
OS
No OS
Windows Embedded 7 StandardLanguages
Windows 7 - 35 Language groups
English (default), French, German, Italian, Spanish, Simplified Chinese, Traditional ChineseSoftware
Elo Tablet Diagnostics Tool
USB Ports
1 x USB 2.0 Standard (3 x USB when docked in Docking Station)
Ethernet Port
1 x LAN RJ45 (10/100M) (when docked in Docking Station)
Wireless
WiFi (802.11 b/g/n), NFCIP-1 Reader/Writer
Bluetooth
Bluetooth (4.0)
Audio Ports
3.5mm audio mic/earphone hidden/protected cover
Speakers
Internal speaker
Power
12V DC Input
LED
1 x Charging LED
1 x Wi-Fi / Bluetooth LED
1 x MSRPower Supply
AC input voltage: 100-240 VAC
Input frequency: 47-63 HzPower Cables
North American and European power adapter included
Power Consumption (Typical)
7W - estimated battery run time up to 7 hours
36W (maximum loading, including docking station)Max Touchcomputer Dimensions Without Stand
11.52" x 0.79" x 8.17" / 292.6mm x 20.1mm x 207.52mm
Shipping Box Dimensions
15.8" x 4.1" x 12.5" / 401.32mm x 104.14mm x 317.5mm
Weight (Unpackaged)
2.5 lbs / 1.13 kg
Weight (Packaged)
4.4 lbs / 1.99 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Optional Product Coverage
Extended Warranty (North America and EMEA only)
Upgrade Options
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Expansion Options
64GB mSATA SSD
Other Features
Autofocus 2.0MP camera on front side
Autofocus 2.0MP camera on back side with flash
Hand strap
3-track encrypted MSR
Near Field Communication (NFC)
Smart Card Reader
Orientation Sensor
Smart Battery ControlOptional Accessories
Tablet Docking Station - E518363
VESA Bracket - Elo P/N: E624438
Accessory Battery - Elo P/N: E840851
Stylus - Elo P/N: E761200
Replacement Power supply - Elo P/N: E452058What's in the Box
Tablet, battery, power supply, NA plug, EU plug, UK plug, Quick Installation Guide (QIG), hand strap
Regulatory approvals and declarations
UL, cUL, FCC Class B, CE, CB, IDA, VCCI, MIC, NOM, SII, ANATEL, CCC, SRRC, UN/DOT 38.3, ROHS, REACH, WEEE
Real-Time Clock
lithium-ion battery
MTBF
50,000 hours demonstrated
Sealability
IP54
Drop Rating
Tested to MIL-STD-810G drop spec at 1 meter. Test results do not guarantee future performance under these test conditions.
Warranty
18-months
