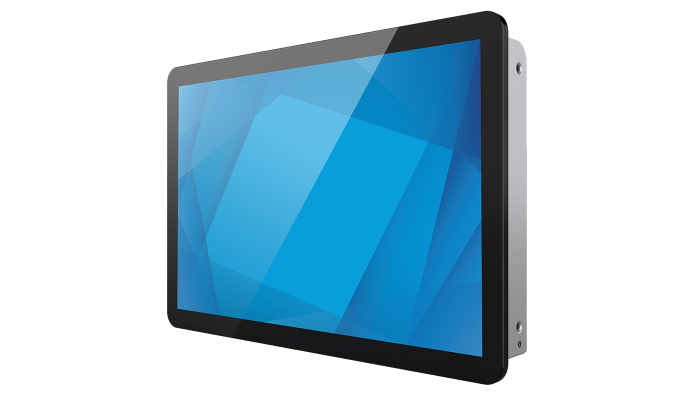

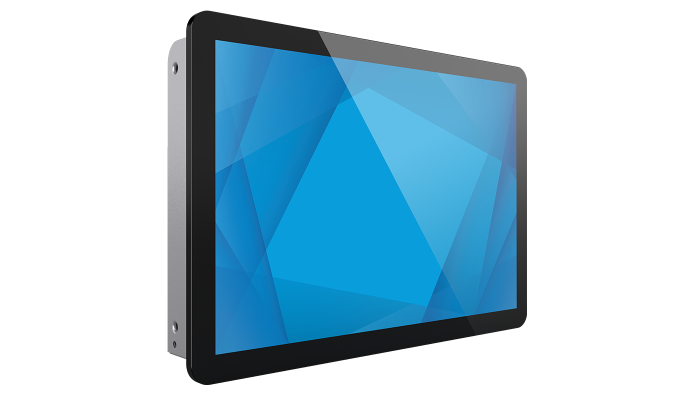

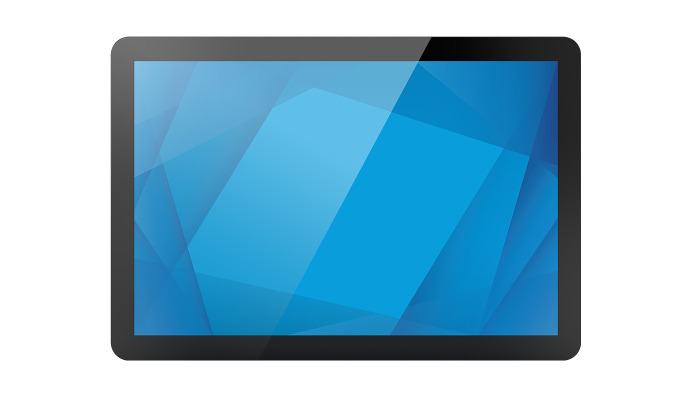

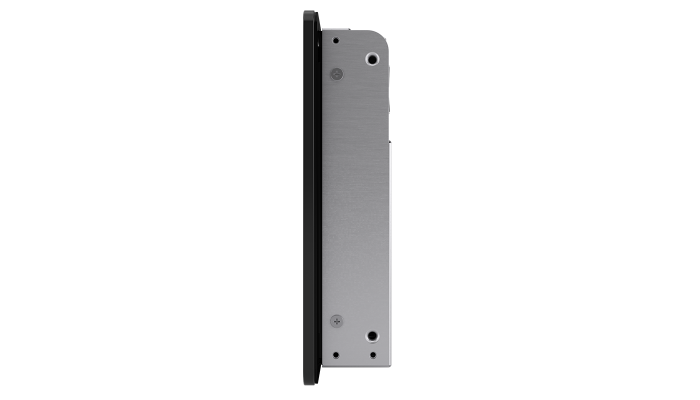

1099L 10" Outdoor Open Frame Touchscreen
How to Buy

1099L 10" Outdoor Open Frame

Outdoor kiosk ready.

Elo's 10-inch outdoor monitor, boasting 1000 NITs
brightness and IK09 vandal-proof rating, ensures 24/7
performance, even in direct sunlight. Readable with
polarized sunglasses, it thrives in extended temperatures.
Ideal for payment systems, signage, and charging stations,
this brilliant, optically bonded weatherproof monitor
features edge-to-edge glass for seamless outdoor
enclosure integration.

Ready for industrial
& commercial use.

Built-in Thermal
Protection

Compliant with
UL-60950 & IK-09

IP66
& Nema 4x

OEM Life Cycle
Support

Ready for
24/7 Use

*requires integration into an enclosure

10-inch weather­proof
touchscreen that covers
you from day to night.

Built to perform outdoors, Elo’s 1099 weatherproof
monitor offers IP66 and NEMA 4X when integrated
into an enclosure as well as IK09 impact protection.
With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital
signage display can withstand harsh physical and
thermal requirements.

Sunlight readable monitor.

To provide unmitigated performance from day to night, the
ambient light sensor automatically adjusts the display’s
brightness to optimize power consumption, extend the life
of the display and enhance the viewing experience.

Outdoor kiosk
solutions.

Elo’s 1099L outdoor monitor enables
you to create reliable outdoor kiosks that
will capture audiences and differentiate
your sunlight readable outdoor display.

  • Charging Stations
  • Payment & Ticketing
  • Vending Machine
  • Human Machine Interface
  • Order Pickup Lockers

Simplify kiosk deployment
and management.

Transform Elo touchscreens into an affordable, scalable,
single-architecture media platform with EloView® and the
Android Backpack. With simplified content-delivery and
remote-management capabilities, managing isolated
outdoor kiosks out-of-the-box is simplified.

Explore EloView

Powerful computing.

The Elo Backpack delivers a powerful, commercial-
grade Android 10 compute engine designed to simplify
the deployment of content, websites and Android-
based apps across your interactive experiences.
Purpose-built to fit in compact spaces, the Elo Backpack
boasts a small footprint in both size and weight to
secure inside any kiosk with the built-in VESA mount.
Scaling Elo’s commercial Android platform across sizes
and form factors has never been easier.

Learn more

Take advantage of
Elo's feature-rich
Android ecosystem.

With easy-to-use development kits, robust
management tools, world-class life cycle management,
and a comprehensive security model, Elo helps
companies deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.

Learn more

Touch thru glass
enabled with PCAP.

Our TouchPro® PCAP technology supports touch-thru
functionality for installations requiring a front layer of
glass up to 6 mm thick or outdoor touchscreen kiosk
solutions requiring adherence to specific IP/IK ratings.
Whether you need a flush-mounted display or one fully
encased in glass, our robust PCAP touchscreen is
purpose-built for outdoor durability.

Learn more

Flexibility for your install.

Elo’s waterproof touchscreen monitor can be mounted
in landscape, portrait and upward facing orientations,
providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether end users are
viewing up close or from a distance, with or without
polarized sunglasses, our optically bonded outdoor
digital signage display offers what you need while
maintaining optimal clarity for the viewing experience.

Connections

GPIO

HDMI

VGA

DisplayPort

USB

Specifications

  • Technical

    Part Number(s)

    TouchPro PCAP with anti-glare - E354792

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - up to 5 touches

    Touch Interface

    USB 2.0

    Diagonal Size

    10.1'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    8.54" x 5.33" / 216.96 mm x 135.60 mm

    Resolution

    1280 x 800

    Other Supported Resolutions

    640 x 480 60Hz
    720 x 400 70Hz
    800 x 600 60Hz
    1024 x 768 60Hz
    1280 x 800 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Number of Colors

    16.7 million

    Brightness (typical)

    TouchPro PCAP: 1000 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    800:1

    I/O Ports

    Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort

    Video_1

    HDMI V1.3 Type A receptacle for HDMI input
    Analog VGA on Female DE-15 (DB-15) connector
    DisplayPort V1.1a - Supports later versions of DisplayPort video input

    Input Video Horizontal Sync frequency range: 31.5 – 80K KHz

    Input Video Vertical Sync (frame rate) frequency range: 60-75Hz

    Power

    External DC - Optional power brick (sold separately)

    Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth)

    Monitor input voltage range: 12V to 24V DC +/- 5%

    Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length)

    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    Monitor + adapter
    ON: 23W
    SLEEP from PC: 1.5W
    OFF: 1.5W

    Dimensions

    10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm

    Shipping Box Dimensions

    13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm

    Weight (Unpackaged)

    4.85 lbs / 2.2 kg

    Weight (Packaged)

    7.28 lbs / 3.3 kg

    Operating Temperature

    -20°C to 60°C / -4°F to 140°F

    Storage Temperature

    -30°C to 80°C / -22°F to 176°F

    Humidity

    Operating: 10% to 90%
    Storage: 10% to 95% (38.7° maximum wet bulb temperature)

    Sealability

    Sealable to IP66 / NEMA 4x

    MTBF

    50,000 hours demonstrated

    Warranty

    2-year

    Regulatory approvals and declarations

    Australia RCM
    Canada cUL, IC
    China CCC
    Europe CE, TUV
    United Kingdom UKCA
    Japan VCCI
    Korea KCC
    Mexico NoM
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE

    Compliance

    GLI 27 kV air / 8 kV contact ESD compliance
    UL ball-drop compliance
    IK09 impact compliance

    Mounting Options

    200x100mm VESA mount on rear of unit
    4 Hole mounting interface on all four sides.

    Flush mount with included brackets

    Other Features

    Viewable with polarized sunglasses in portrait and landscape orientations.
    Ambient light sensor
    Thermal sensor

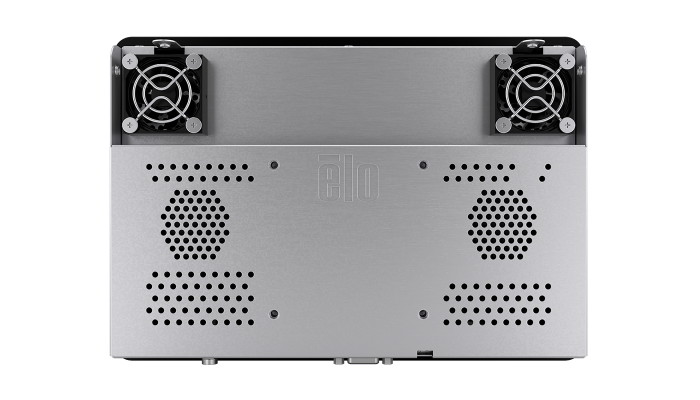

    External fans (Automatically controlled)

    What's in the Box

    1099L
    HDMI cable with screw-locked type
    VGA Cable
    Remote OSD
    Touch USB Cable with screw-locked type
    Quick Install Guide
    Flush Mount Brackets w/Screws
    EEI Label

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Cable Kit DVI-D to HDMI – Elo P/N: E538507
    Cable Kit DP to DP – Elo P/N: E582895
    Elo 1099L Flush mount Bracket - Elo P/N: E777499
    External 80W power brick and cable, LVL6 America – Elo P/N: E596619
    External 80W power brick and cable, LVL6 Europe – Elo P/N: E596821
    External 80W power brick and cable, LVL6 UK – Elo P/N: E597014
    External 80W power brick and cable, LVL6 China – Elo P/N: E597205
    External 80W power brick and cable, LVL6 Taiwan – Elo P/N: E597410
    External 80W power brick and cable, LVL6 Japan – Elo P/N: E597608
    External 80W power brick and cable, LVL6 Argentina – Elo P/N: E597792
    External 80W power brick and cable, LVL6 Australia – Elo P/N: E597994
    HDMI to HDMI locking cable – Elo P/N: E100212
    USB locking cable – Elo P/N: E100418
    VGA to VGA locking cable – Elo P/N: E610090
