3243L Open Frame Touchscreen (Replaced by 3263L)
How to Buy

This product has been replaced by the - 3263L.

Overview

The Elo 3243L 32-inch full HD open-frame touchscreen delivers a professional-grade large-format display and sleek design at less than 2.3 inches (58 mm) in total thickness. Designed for touch from the start with proven Elo expertise and reliability built in, the 3243L offers a state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The comprehensive range of features includes analog and digital interfaces, multi-lingual and cabled remote on-screen display (OSD), mounting VESA standard, mounting brackets, and worldwide compliance.

Easily integrated.

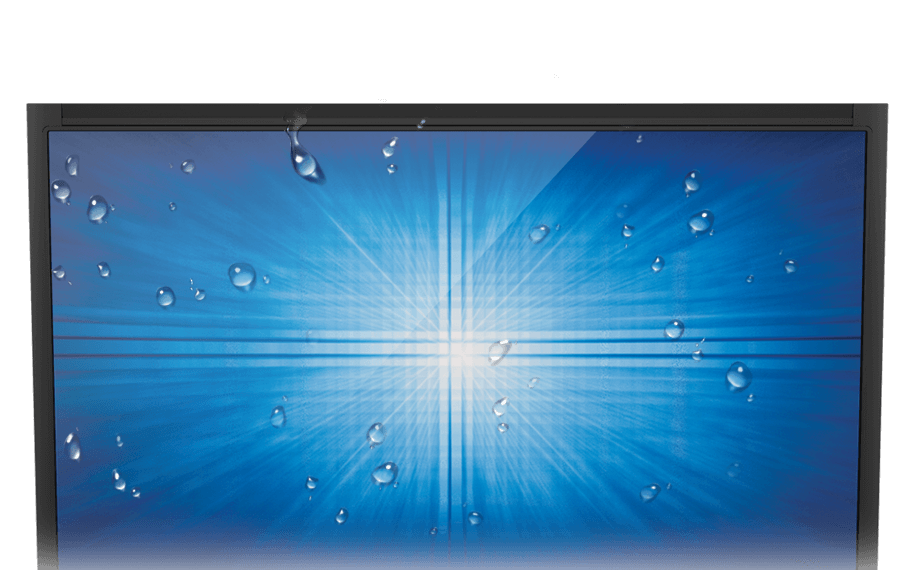

Featuring a compact form factor and optional rack- and front-mount bezels, the 3243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected, helping minimize enclosure costs.

 Image of item
Image of item
Touch ready.

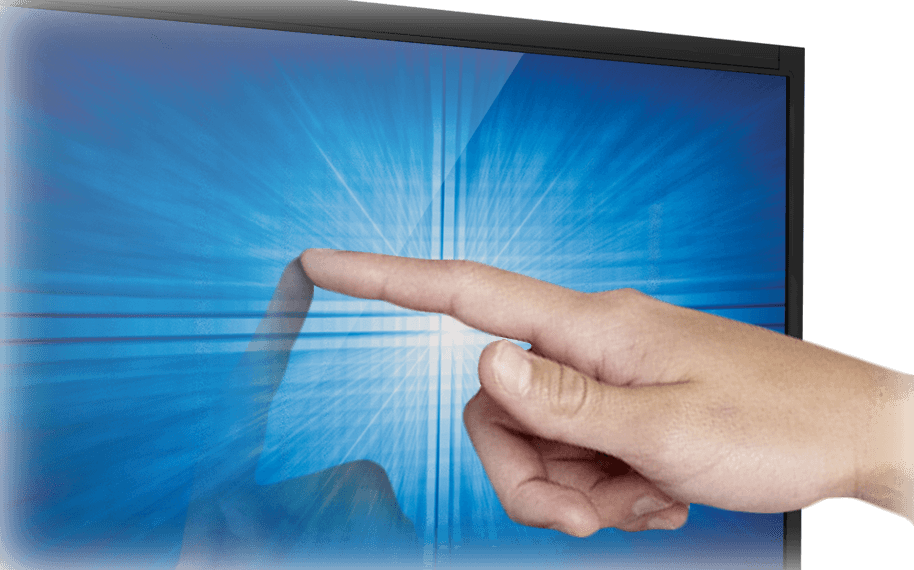

The 3243L is available with a choice of dual-touch technologies. The IntelliTouch® surface acoustic wave (SAW) dual touch technology offers the ultimate in optical quality. The 3243L touchscreen provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to wear them out.


Commercial-grade.

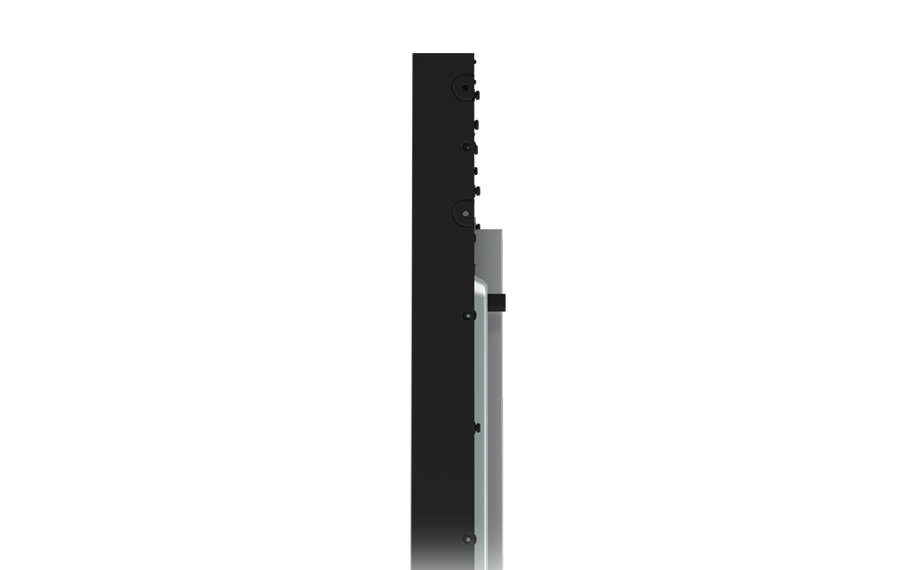

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).



 Image of item
Other features.
  • 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
  • Multiple mounting options are available
  • Worldwide agency approvals and a three-year standard warranty extendable to five years
  • Integrated power supply

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual Touch (clear) - E326202

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch

    Touch Interface

    USB

    Diagonal Size

    31.5'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the OSD Control Remote accessory.

    Controls (side): Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

    See user manual for full details.

    Aspect Ratio

    16:9

    Active Area

    27.57" x 15.54" / 700.4mm x 394.85mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 at 60Hz
    800 x 500 at 60Hz
    800 x 600 at 56/60Hz
    1024 x 768 at 60Hz
    1280 x 720 at 60Hz
    1280 x 960 at 60 Hz
    1280 x 1024 at 60Hz
    1360 x 768 at 60 Hz
    1366 x 768 at 60 Hz
    1440 x 900 at 60 Hz
    1600 x 1200 at 60 Hz
    1680 x 1050 at 60 Hz
    1920 x 1080 at 60 Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 500 nits
    IntelliTouch Dual Touch: 450 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    3000:1

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3

    Input Video Signal Connector

    Female DE-15 VGA, HDMI Type A Receptacle Connector

    Input Video Frequency

    Horizontal: 31 - 75 KHz
    Vertical: 47 - 63 Hz

    Power Supply

    Internal AC

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz

    Input Connector

    AC: IEC 60320 C14

    Maximum Operating Time

    24 hours/day

    Power Consumption (Typical)

    Monitor + AC/DC adapter

    (Typical @ 120V at 60Hz):
    ON: 47.4W
    SLEEP: 1.1W
    OFF: 0.1W

    (Typical @ 230V at 50Hz):
    ON: 47.1W
    SLEEP: 1.1W
    OFF: 0.1W

    Dimensions

    29.0" x 17.4" x 2.25" / 736.4mm x 443mm x 57.2mm

    Shipping Box Dimensions

    39.0" x 26.4" x 11.65" / 992mm x 672 mm x 296mm

    Weight (Unpackaged)

    26.7 lbs / 12.1 kg

    Weight (Packaged)

    41.1 lbs / 18.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage + AUR - Elo P/N: E740135
    5 year warranty coverage + AUR - Elo P/N: E740330

    Regulatory approvals and declarations

    Argentina S-Mark
    Australia RCM
    Canada cUL, IC
    China CCC
    Europe CE
    Japan VCCI
    Korea KCC e-standby
    Mexico CoC
    Russia EAC
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE
    United States UL 60950 ball-drop compliant

    Mounting Options

    400mm x 200mm VESA 4-hole mounting interface on rear of unit
    Side mounting brackets included (with IntelliTouch Dual Touch models only)

    What's in the Box

    3243L IntelliTouch, QIG (With Driver), Japan Kiosk Class A info, EEI Label, Side Mount Bracket Kit (8 pc brackets, 16 pc M4x5 screws), HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to NA plug, power cable, IEC 60320-C13 to EU/KR plug, power cable, IEC 60320-C13 to UK plug, power cable, IEC 60320-C13 to AR plug, power cable, IEC 60320-C13 to CH plug, power cable, IEC 60320-C13 to TW plug, power cable, IEC 60320-C13 to JP plug, 3-pin to 2-pin adapter for JP power cable

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550
    Elo Backpack® 4 (Value Model)- Elo P/N: E393754
    Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
