PayPoint® for Android™ (Replaced by EloPOS)
How to Buy

This version has been discontinued. Please see the replacement models - EloPOS for Android.

Overview

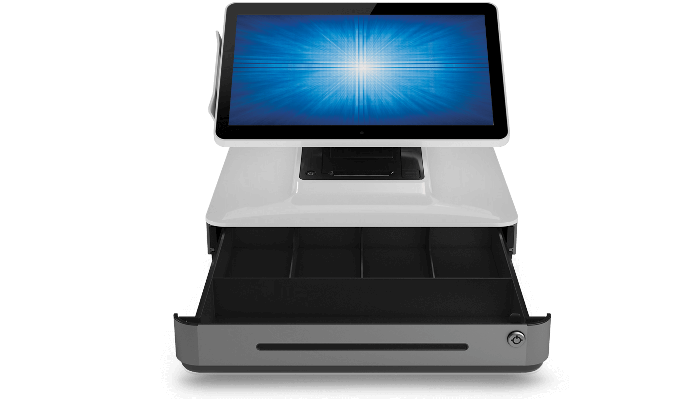

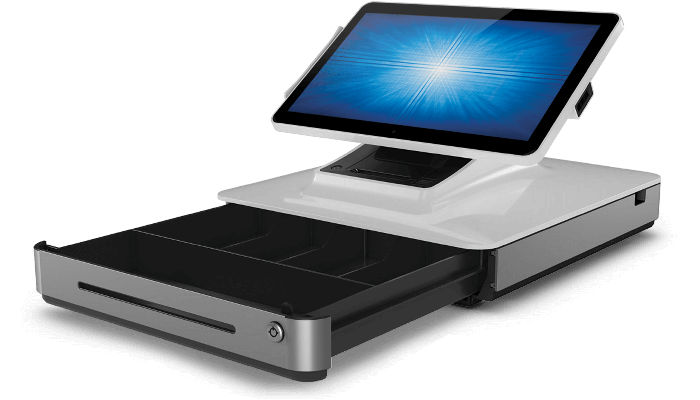

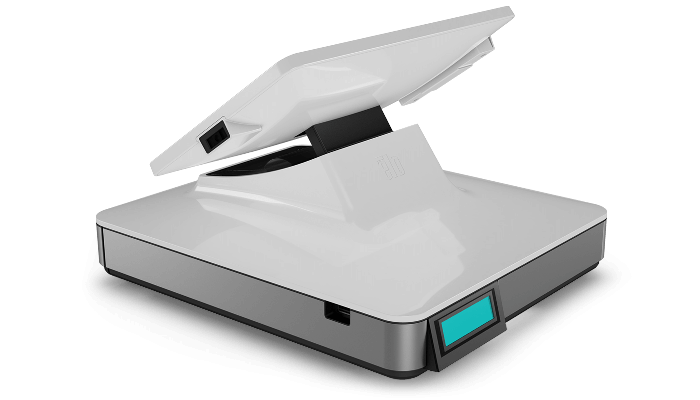

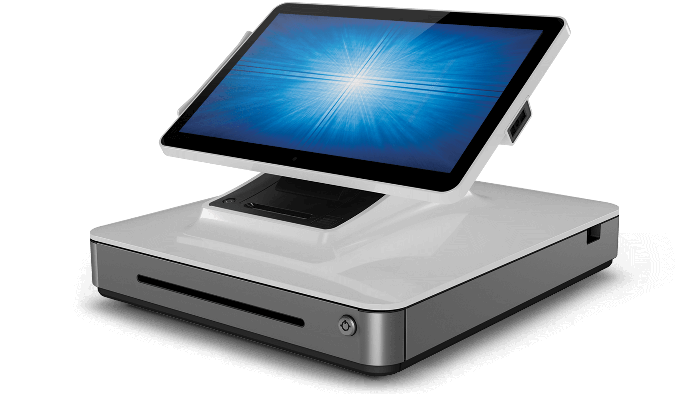

PayPoint is an all-in-one mPOS solution that brings simplicity and elegance to the point of sale. Offering sleek, modern style with peripherals built in, the PayPoint platform is retail hardened and built to last with a three-year warranty.

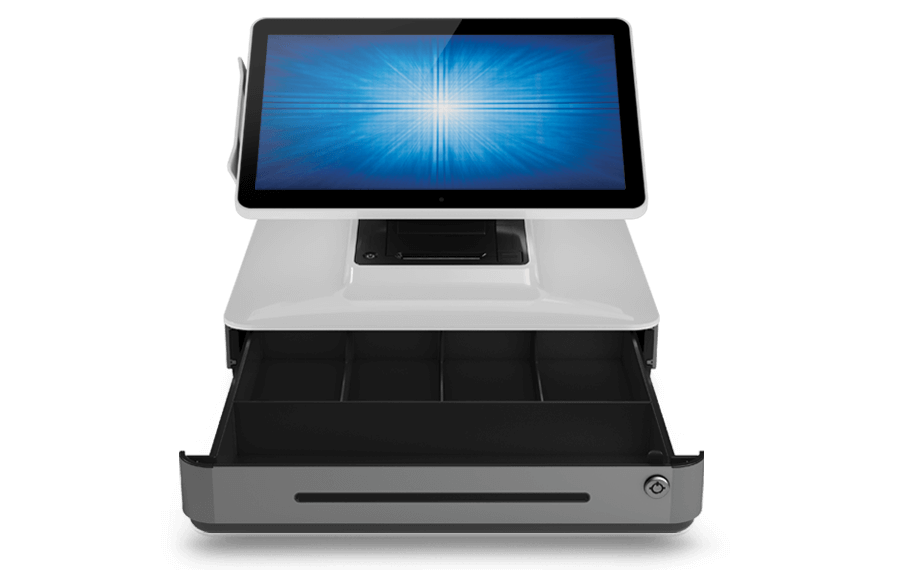

Plug & play.

With its single cable design, PayPoint makes setting up the point of sale system fast and easy. Just unbox, plug in, connect, and go.

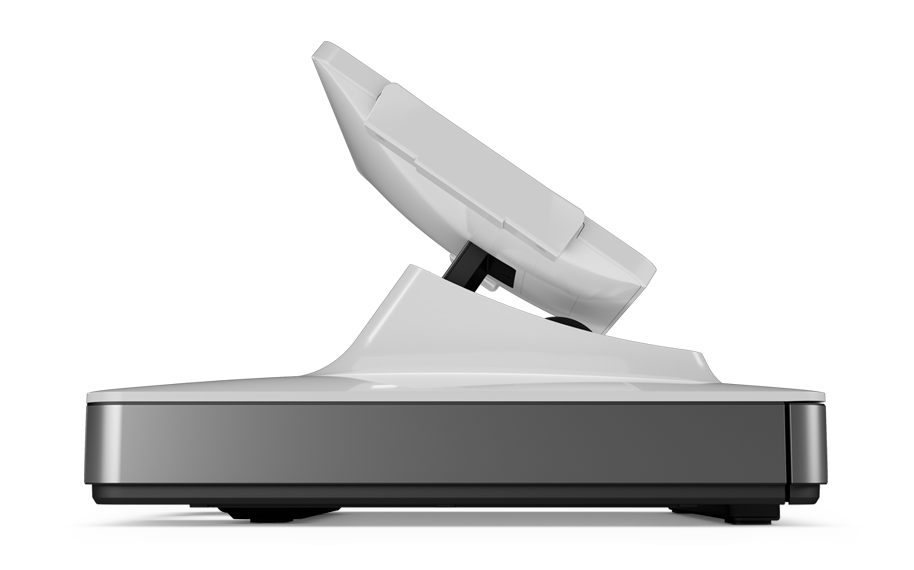

Sleek design.

For retailers and operators, counter space is always at a premium. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint turns the cash wrap into a beautiful and functional space to allow you to better serve your customers.

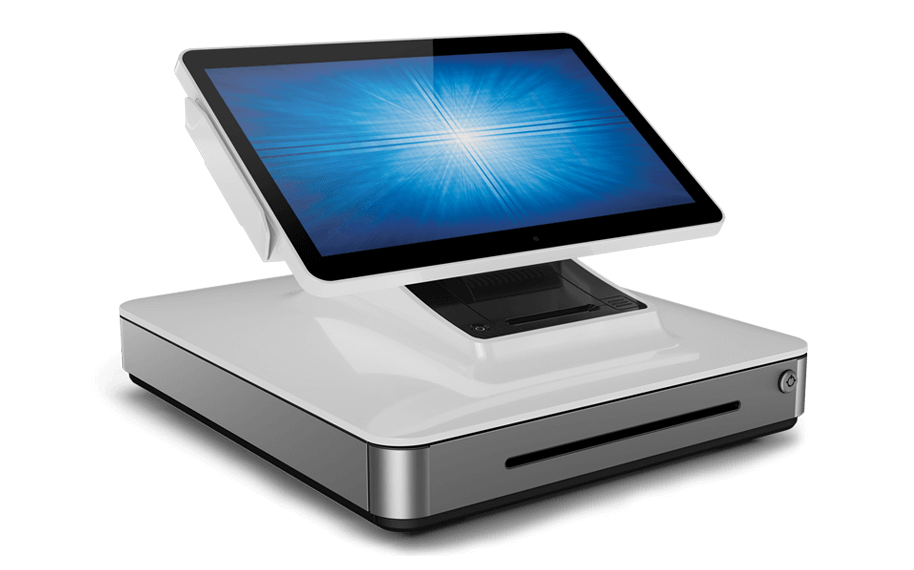

Functionality delivered.

PayPoint integrates a receipt printer, cash drawer, MSR, barcode scanner and customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth connectivity and expansion ports allows for the addition of optional peripherals such as a handheld scanner or weight scale.

For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports highly secure EMV transactions.

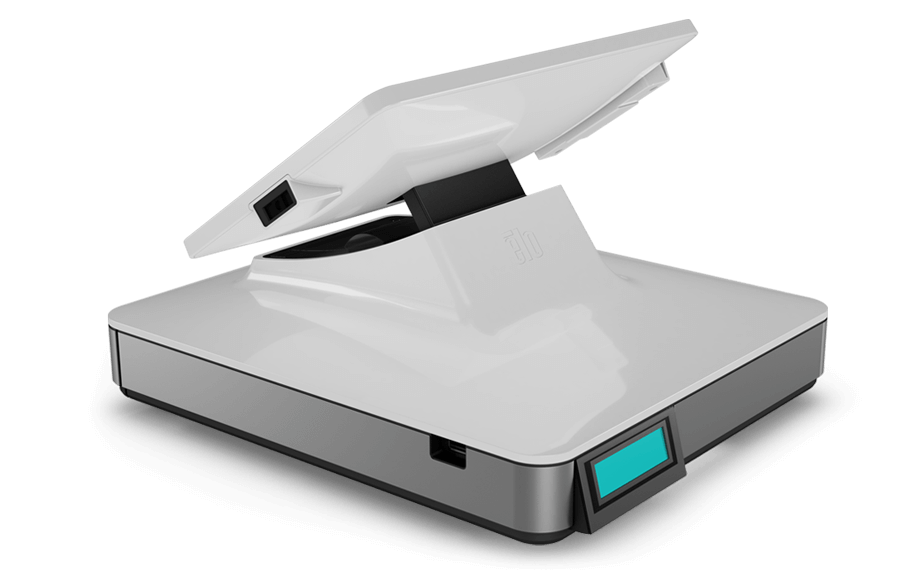

Integrated flexibility.

Whether working with one of Elo’s strategic point of sale software partners or deploying your own application, you can easily add the mPOS functionality you need to run your business.

PayPoint Certified Software Partners

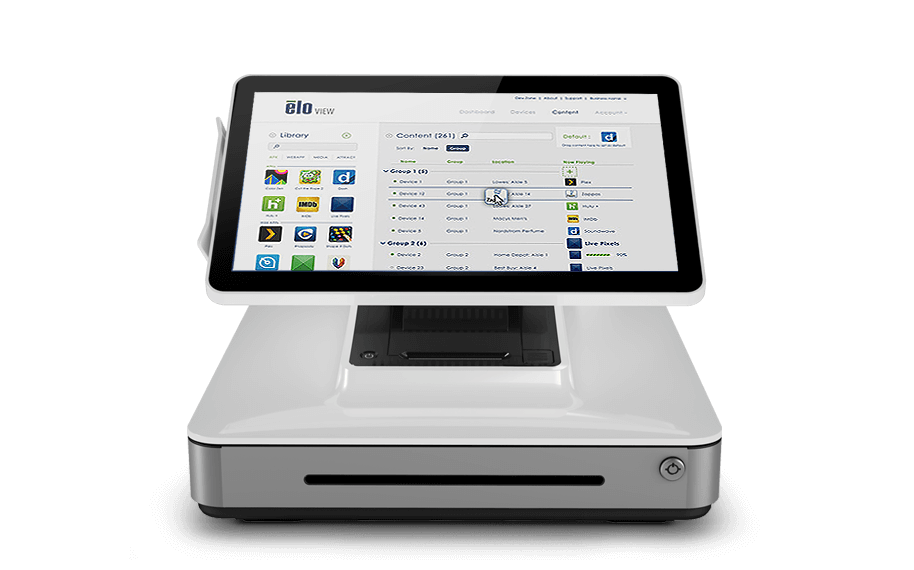

Manage remotely.

With EloView, you have the power to manage your PayPoint system remotely. Deploy your POS application, load content, and update the operating system easily and effectively with the secure and scalable device-management platform.
Other features.
  • Integrated receipt printer, cash drawer, MSR, barcode scanner and customer facing display
  • 13.3-inch projected capacitive (PCAP) display
  • WiFi and LAN network connectivity
  • Bluetooth module and expansion ports for external peripherals
  • Ability to secure base to tabletop or desktop
  • Three-year warranty
  • Android SDK that allows developers to certify PayPoint with ease

Specifications

  • Technical

    Part Number(s)

    White (Americas) - E301918
    White (Europe) - E314251
    White (Asia/Pacific) - E067745

    Enclosure Color

    White

    Touch Technology & Capacity

    PCAP (Projected Capacitive) - 2 Touch

    Diagonal Size

    13.3'' diagonal, Active matrix TFT LCD

    Aspect Ratio

    16:9

    Resolution

    1920 x 1080 @ 60Hz

    Active Area

    11.6" x 6.5" / 293.47mm x 165.07mm

    Number of Colors

    262,000

    Brightness (typical)

    LCD Panel: 400 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    700:1

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Processor

    ARM A9 1GHz Dual-Core

    Chipset

    2x Cortex-A9

    Graphics

    HD1080p 30 Video Decode
    Dual HD720p Video Encode

    Memory (RAM)

    1GB on board

    Hard Disk Drive

    16GB on board

    NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less

    USB Ports

    2 x USB 2.0
    1 mini USB

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    802.11 b/g/n + Bluetooth 4.0

    Cash Drawer Port

    4 bill, 5 coin built in cash drawer
    Removable coin slot insert
    Slot for checks

    Speakers

    1 x .5W internal speaker

    OS

    Android 5.0.2 Lollipop

    Power

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    With All Peripherals Connected: 20W

    Dimensions

    13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm (Display at 0° tilt, W x H x D)

    Shipping Box Dimensions

    17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm

    Weight (Unpackaged)

    13.85 lbs / 6.28kg

    Weight (Packaged)

    19.25 lbs / 8.73kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Sealability

    Touchscreen sealed to LCD (all)

    Power Cables

    Included

    Other Features

    Serviceable internal components

    What's in the Box

    13-inch PCAP display, cash drawer, printer, MSR, bar code scanner, customer facing display, Ethernet cable, Power cable (NA, EU, UK, China), 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide

    Optional Accessories

    PayPoint NFC Kit - Elo P/N: E149962
    PayPoint Cash Drawer Kit US - Elo P/N: E332393
    PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197
    EMV Cradle for Ingenico ICMP - Elo P/N: E953516
    EMV Cradle for Verifone E355 - Elo P/N: E002639

    Regulatory approvals and declarations

    UL/cUL, FCC, CE, CB, CCC
