PayPoint® Plus for Windows® (Replaced by EloPOS Z30 with Intel)
This product has been replaced by the EloPOS Z30 with Intel.

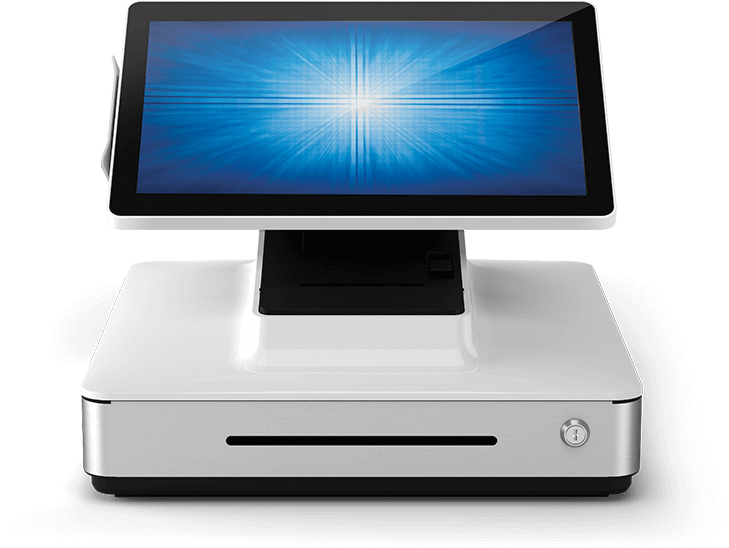

PayPoint® Plus
for Windows®

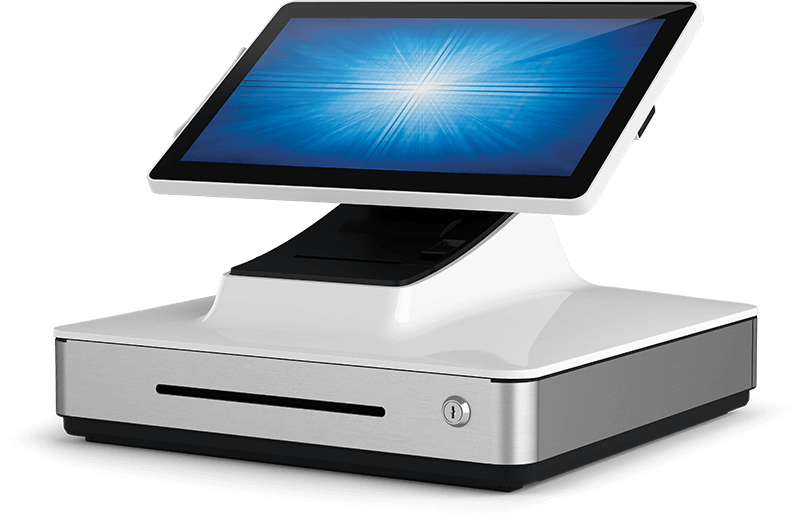

PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel® Coffee Lake Core™ i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

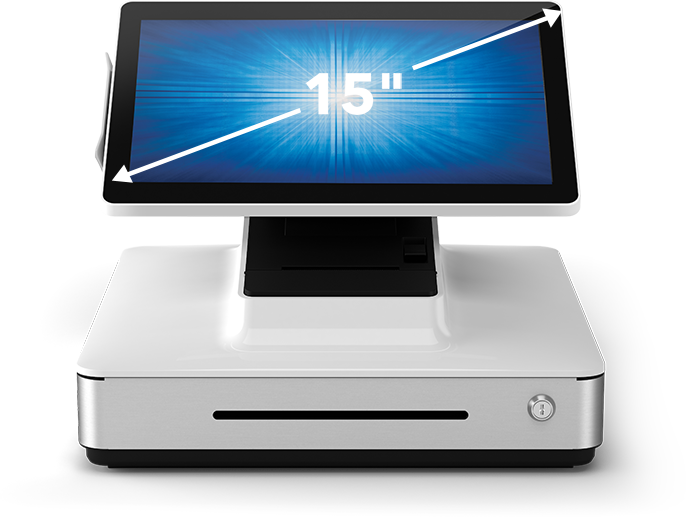

Large Display
PayPoint Plus for Windows offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.

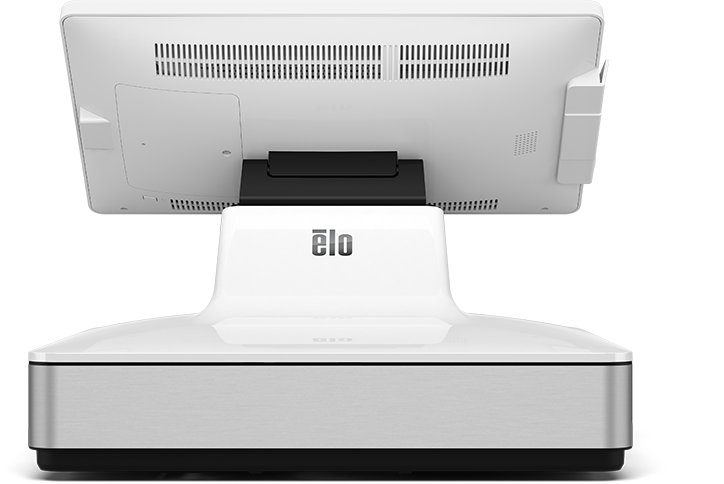

Rotating Display Head
Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
Integrated Peripherals
-
Printer
The Star TSP100iii is a standard 3-inch (80mm) printer with
auto-cutter and print speed of 230mm/sec. -
Barcode Scanner
The Honeywell N4680 is an omnidirectional 1D/2D engine with
optional capability to add plugins. For example–EasyDL™
enables users to read government-issued identification cards in
US and Canada. -
Cash Drawer
The full size industry–standard cash drawer with 3-position
lock offers two layouts–five bill / six coin or four bill / eight
coin. A second cash drawer can be added using the I/O port. -
MSR
The MagTek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.
3-inch Printer
PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics which includes futurePRNT Software – making setup a breeze. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. It can even be configured for ESC/POS mode emulation. Reliability comes first — this printer has been tested to MCBF of 60 million lines.
Barcode Scanner
2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell which includes Honeywell’s EZConfig Cloud for Scanning - simplifying the input of barcode scanner configurations and firmware updates. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL™ to scan and parse data from drivers licenses in the United States and Canada.
Full Size Cash Drawer
The full size 16-inch industry-standard cash drawer offers a 3-position lock and the
ability to add second cash drawer through an I/O port.
N. America / China Model
Five bill & six coin layout
Worldwide Model
Four bill & eight coin layout

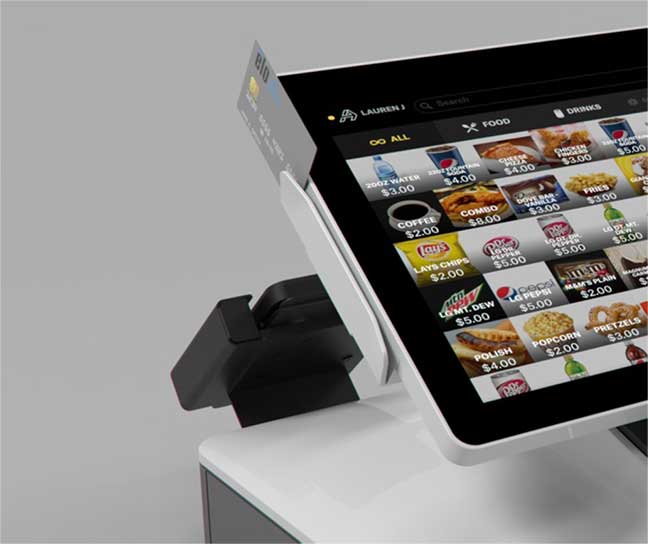

Magnetic Stripe Reader
PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe Reader (MSR) built by MagTek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.

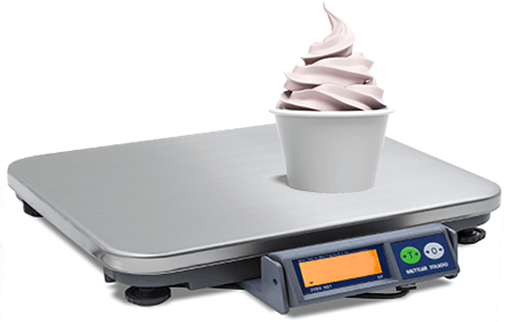

Connectivity for 3rd Party Peripherals
PayPoint Plus has additional input/output ports including serial, USB and mini-HDMI
to support 3rd party peripherals. From scales or a secondary display to NFC and
EMV devices – PayPoint Plus offers many
options. You can even add a second cash
drawer if needed.
Operate The Way You Need
The Elo PayPoint Plus for Windows utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system.
For added flexibility, PayPoint Plus for Windows offers models with no OS - all pretested with Linux SuSE and Ubuntu operating systems, allowing businesses to get the solution best-suited for them.

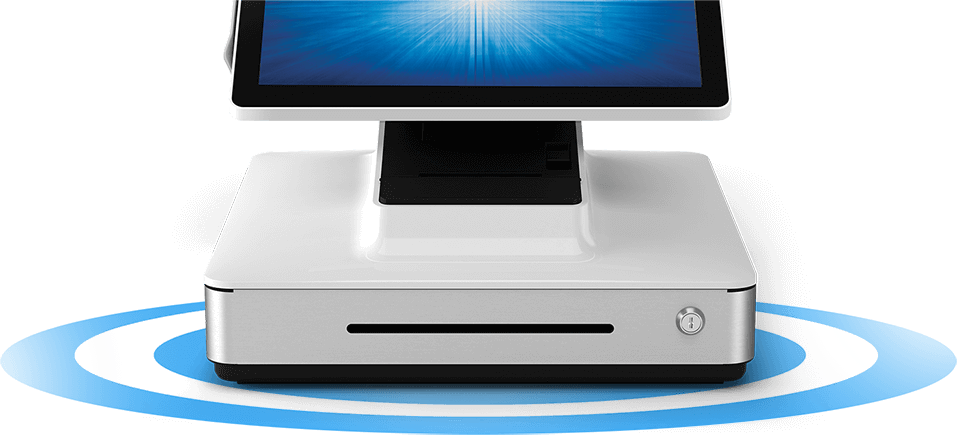

Connectivity
PayPoint Plus for Windows offers Wi-Fi 802.11 b/g/n/ac providing support for both
2.4Ghz and 5Ghz bands. In addition, BLE 5.0 enables connectivity to third party devices.
Add Your Software
With PayPoint Plus, our goal is to offer a simple and elegant solution that’s easy to integrate, install and support regardless of the OS you are using. To ease integration with your POS application, we provide Windows and Linux drivers to allow you to control and communicate with the onboard peripherals. In addition, we leverage industry-standard tools and utilities such as Star FuturePRNT, Honeywell EZConfig and MagTek Utility to further simplify your PayPoint Plus development and configuration process. And, once your application is certified and ready for deployment, you can utilize the PayPoint Plus peripheral test app to check status of your customer’s device during set-up and support calls.
Specifications
-
Technical
Part Number(s)
E922014 - White, No OS, 5 Bill/6 Coin Cash Drawer
E921829 - White, No OS, 4 Bill/8 Coin Cash Drawer
E833323 - White, Win 10, 4 Bill/8 Coin Cash Drawer
E548895 - Black, Win 10, 5 Bill/6 Coin Cash Drawer (MTO)
E549091 - Black, No OS, 4 Bill/8 Coin Cash Drawer (MTO)
E549280 - Black, Win 10, 4 Bill/8 Coin Cash Drawer (MTO)Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - up to 5 touches
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60Hz
Active Area
13.54" x 7.64" / 343.91 mm x 194.05 mm
Brightness (typical)
LCD Panel: 300 nits
PCAP: 260 nitsResponse Time-total (typical)
30 msec
Touch Interface
USB
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Processor
Intel Core i5-8500T Processor (9M Cache, up to 3.50 GHz) with Intel vPro™ support
BIOS
AMI
Trusted Platform Module (TPM)
2.0
Memory (RAM)
8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB)
Storage
128GB M.2 SSD, 72 TBW
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be lessUSB Ports
4 x Type A USB 2.0
1 x 12V powered USB portSerial Ports
2 x RJ45
HDMI
1 x micro HDMI port
Ethernet Port
1 x LAN (Gigabit)
Wireless
802.11b/g/n/ac + Bluetooth 5.0
Cash Drawer Port
1 x RJ12
Magnetic Stripe Reader (MSR)
Magtek 3 track encryptable
Default Security Level 2Barcode Reader
Honeywell N4680 1D/2D barcode scanner
CMOS sensor with 640 x 480 pixel resolution
Supported symbologies:
- Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar
- 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
- 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code
- Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, PostnetPrinter
Star TSP100III USB thermal 3" (80mm) receipt printer with auto-cutter
Speed of 250mm/sec
Maximum paper roll diameter 80mm
Paper thickness: 0.053-0.085mmCash Drawer
Cash Drawer Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm
Removable till insert
Media slot for checks
3 position lock
NA/China Models:
5 bill, 6 coin built in cash drawer
Cash Drawer Inside Dimensions:
- Bill: 6.61" x 2.80" x 2.00" / 168 mm x 71 mm x 51 mm
- Coin: 3.39" x 2.28" x 2.00" / 86 mm x 58 mm x 51 mm
Worldwide Models:
4 bill, 8 coin built in cash drawer
Cash Drawer Inside Dimensions:
- Bill: 6.45" x 3.54" x 2.20" / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24"
- Coin: 1.57" x 3.54" x 1.41" / 40 mm x 90 mm x 36 mm)Speakers
1 x 1W internal speaker
OS
No OS
Windows 10Power
Input connector (power): 100-240 VAC
Input signal specifications (power): 50-60 HzPower Consumption (Typical)
51.86 W
Dimensions
16.18" x 12.71" x 16.53" / 411 mm x 323 mm x 420 mm
Shipping Box Dimensions
21.18" x 15.31" x 20.39" / 538 mm x 389 mm x 518 mm
Weight (Unpackaged)
22.47 lbs / 10.20 kg
Weight (Packaged)
29.76 lbs / 13.5kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Real-Time Clock
lithium coin cell battery
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD
Power Cables
Internal Power Supply
Power cable dependent on region of saleMounting Options
Ability to secure base to tabletop
What's in the Box
PayPoint Plus for Windows
Power cable
1 x Receipt paper roll
2 x Cash drawer keys
Quick Installation Guide
RJ45 to DB9 serial cableOptional Accessory
White Cable Kit (1 per box) - Elo P/N: E784408
Black Cable Kit (1 per box) - Elo P/N: E784803
Cash Drawer Kit, NA (5 bill/6 coin) - Elo P/N: E784606
Cash Drawer Kit, Worldwide (4 bill/8 coin) - Elo P/N: E202512
Spare Keys 001 (1 set of 2 keys) - Elo P/N: E201914
Spare Keys 002 (1 set of 2 keys) - Elo P/N: E202119
Spare Keys 003 (1 set of 2 keys) - Elo P/N: E202321
RJ45 to DB9 Cable Kit (10 per box) - Elo P/N: E202717
Mount for 1502L - Elo P/N: E963646Regulatory approvals and declarations
UL/cUL, FCC/IC, CE, CB, EU RF RED, CCC, SRRC, VCCI, Japan RF
