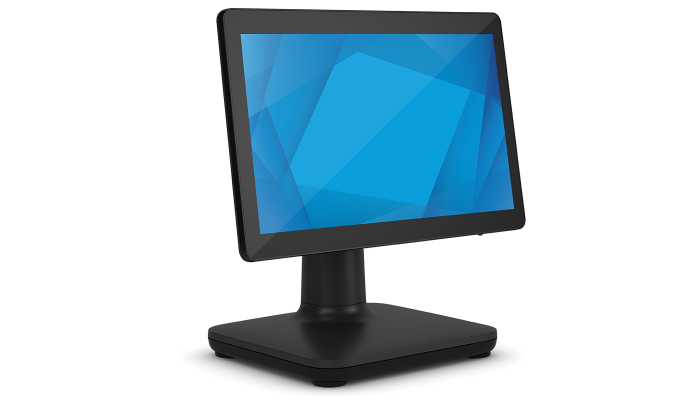

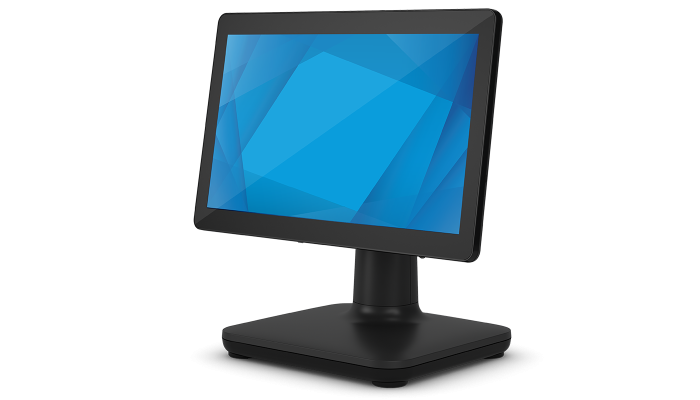

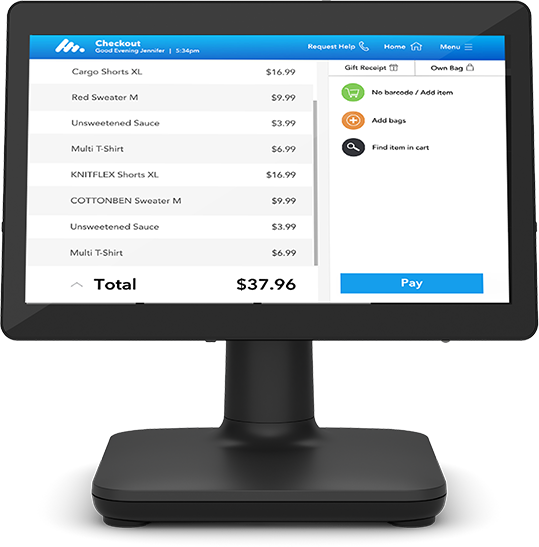

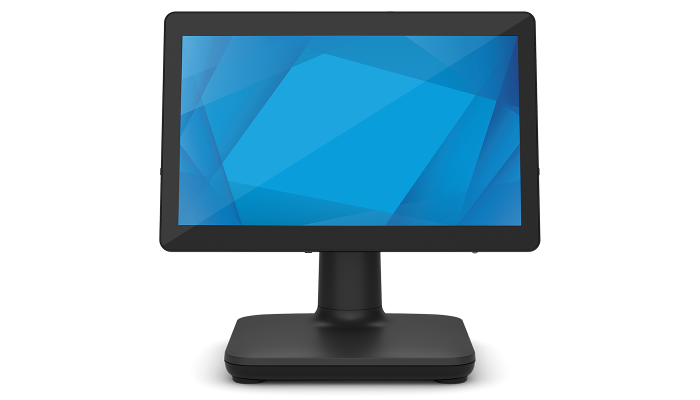

E-Series 2 POS system.
Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel’s 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need.

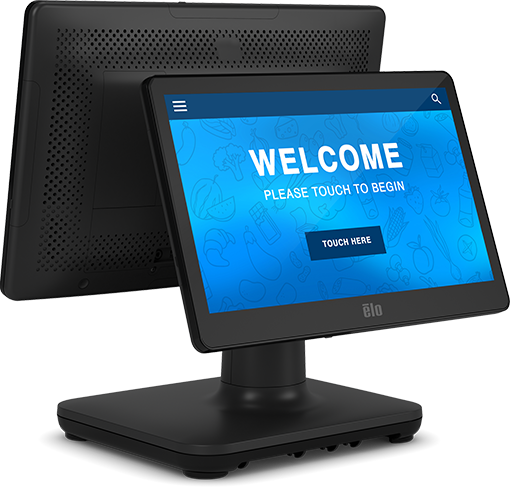

Add a customer-facing display with ease.
The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

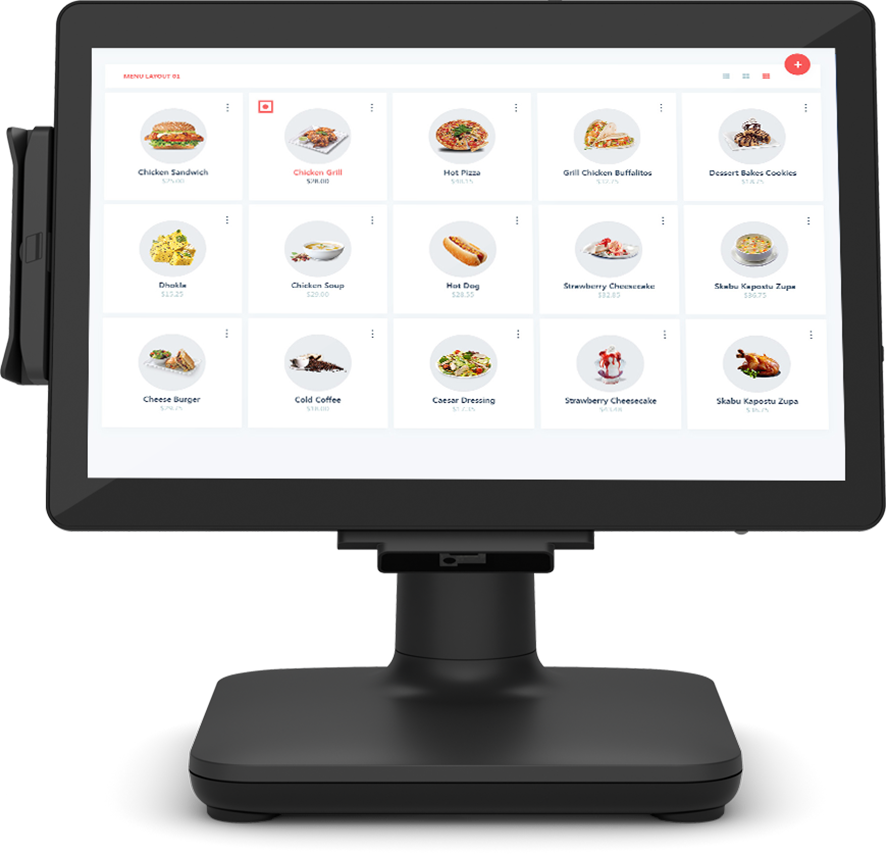

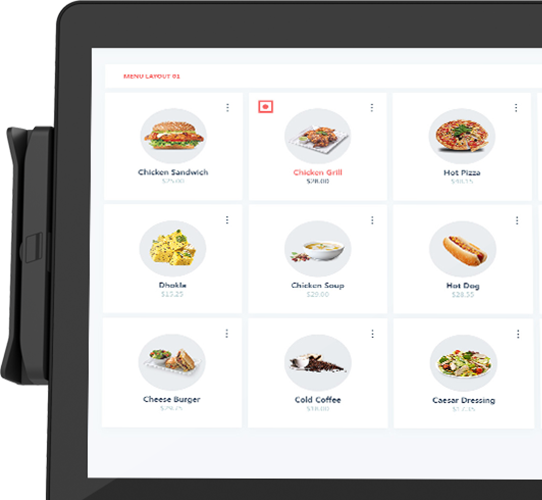

Expand with
Elo Edge Connect.™
Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

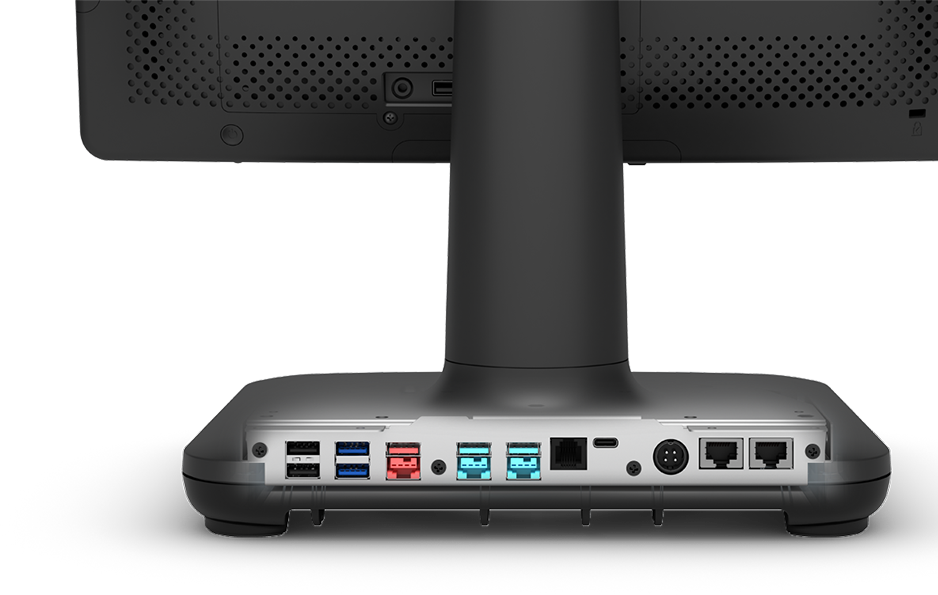

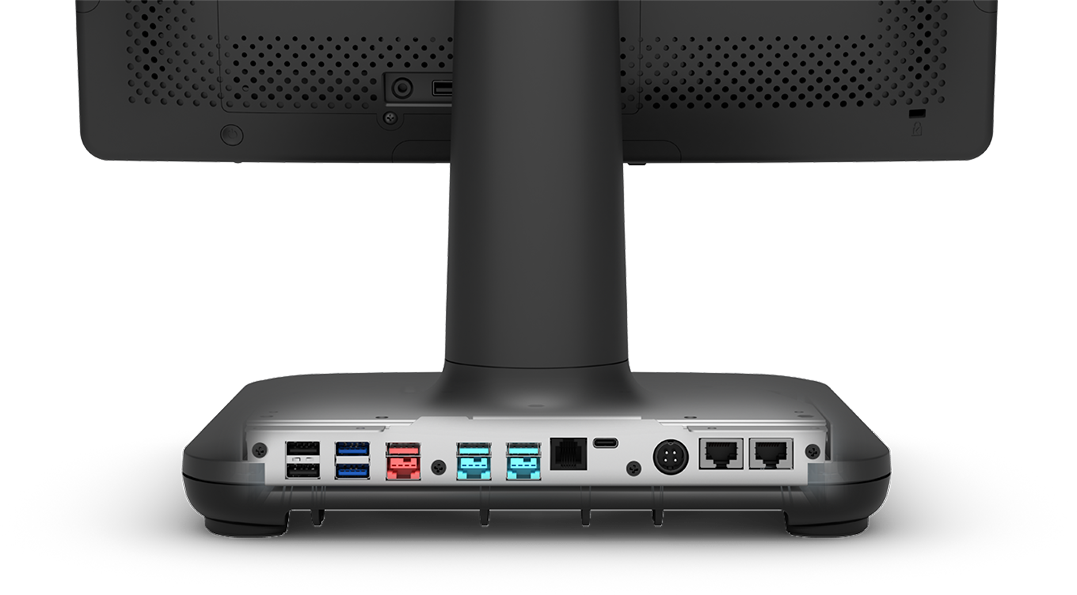

Connect all of your POS accessories.
Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Windows or Linux. You choose.
The E-Series 2 utilizes the reliability-tested performance and security of Intel’s 8th Generation Celeron processor, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
A POS system you can count on.

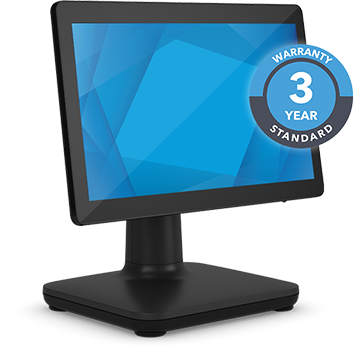

Rigorously tested and backed by a three-year warranty. With splash-proof housing and a rugged retail-hardened design, the E-Series 2 can withstand the adverse conditions associated with most commercial environments.
Specifications
-
Technical
Part Number(s)
No OS - E135925
Win 10 - E136131Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Intel® Celeron® Processor J4125 (4M Cache, up to 2.7 GHz)
Graphics
Intel UHD Graphics 600
BIOS
AMI
Memory (RAM)
4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots
(Expandable to 8GB maximum on 2 slots)Storage
128GB M.2 SATA SSD, 80 TBW
TPM
2.0
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344.2 mm x 193.5 mm
Resolution
1366 x 768 @ 60Hz
Number of Colors
266,144
Brightness (typical)
LCD Panel: 220 nits
PCAP: 187 nitsResponse Time-total (typical)
10 msec
Contrast Ratio
400:1
Viewing Angle
Horizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total
USB Ports
3 x USB 3.0 (1 on display head, 2 on I/O)
2 x USB 2.0 (on I/O)
4 x Micro USB 2.0 (on display head)Powered USB
1 x 24V on I/O
2 x 12V on I/OEthernet Port
1 x LAN RJ45 (Gigabit)
Serial Ports
2 x RJ45
Cash Drawer Port
12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
Additional Video Out
1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
Audio Ports
1 x 3.5 mm headset jack
Speakers
2 x 2W internal speakers
OS
No OS
Windows 10 IoT Enterprise LTSC 64-bitLanguages
Windows 10 - 36 Language groups
Power Supply
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180WPower Consumption (Typical)
24W
Sleep: < 5W
Off: < 0.5WDimensions
15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm
Shipping Box Dimensions
18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm
Weight (Unpackaged)
10.4 lbs / 4.7 kg
Weight (Packaged)
15.2 lbs / 6.9 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95% (38.7℃ max wet bulb temperature)Regulatory approvals and declarations
UL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA, China CCC
Real-Time Clock
CR2032 lithium metal battery
MTBF
50,000 hours demonstrated
Mounting Options
75mm VESA mount
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
North American and European power cables included
Other Features
Serviceable internal components.
Kensington lock.What's in the Box
E-Series 2
North America Power Cord
EU Power Cord
Power Adapter – 180W
Cable Management Kit
Quick Installation Guide (QIG)Upgrade Options
4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186
M.2 SATA 128GB SSD – Elo P/N: E206352
M.2 SATA 256GB SSD – Elo P/N: E206556Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
10" LCD Customer-facing Display (10 touch) – Elo P/N: E155834 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
10" LCD Customer-facing Display (no touch) – Elo P/N: E324341 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E466847
6ft Elo authorized USB-C cable – Elo P/N: E710364Stands, Mounts & Kits
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Rear-facing Display Mount - Elo P/N: E835969 (Requires authorized 2ft USB-C cable)
Power Brick Kit, 24V 180W - Elo P/N: E845269
Elo 2ft authorized USB-C cable - Elo P/N: E969524
Accessories
(8)
Upgrades, add-ons, and more.
EMV Cradles
Elo Edge Connect™ Magnetic Stripe Reader (MSR)
Pole Stands
Elo Edge Connect™ Fingerprint Scanner
Shelf Mount
Status Light (Gen 1)
1002L 10" Touchscreen Monitor

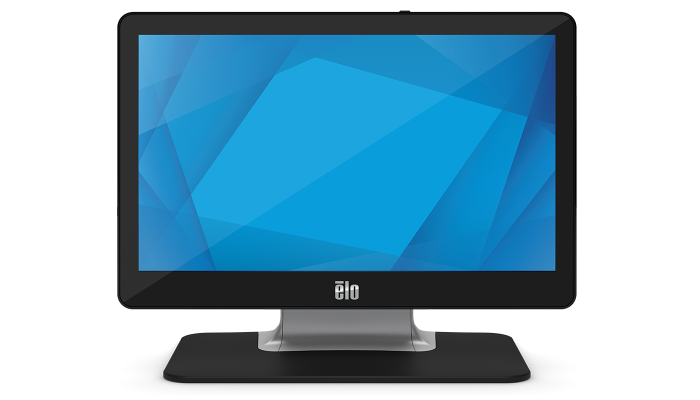

1302L 13" Touchscreen Monitor
