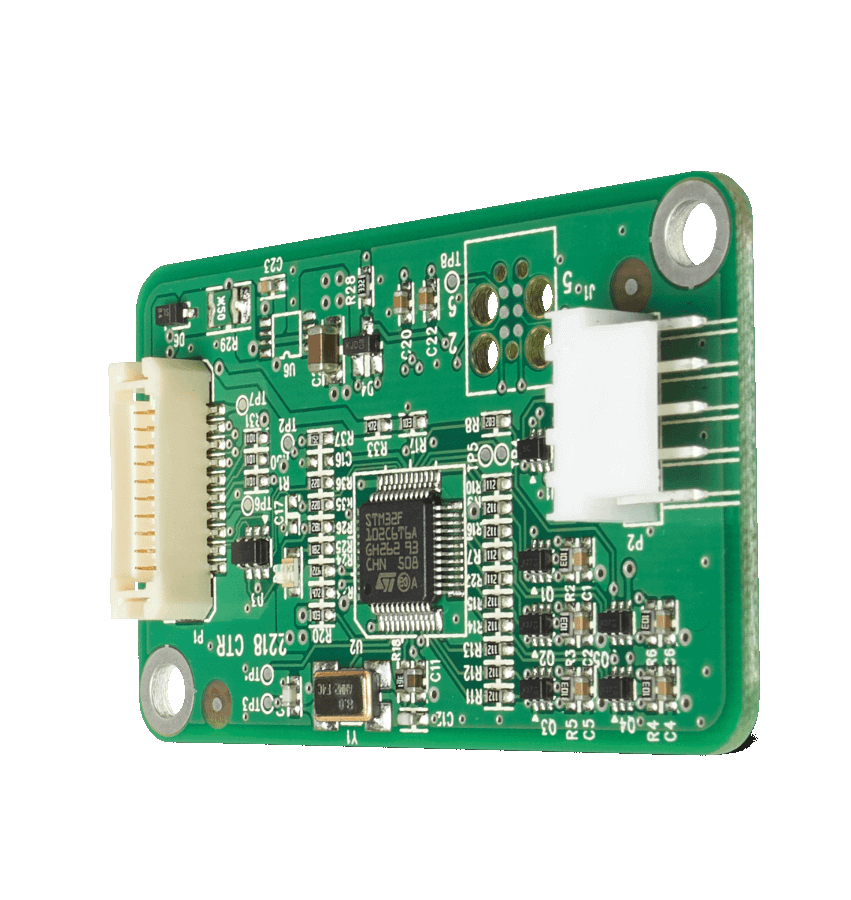

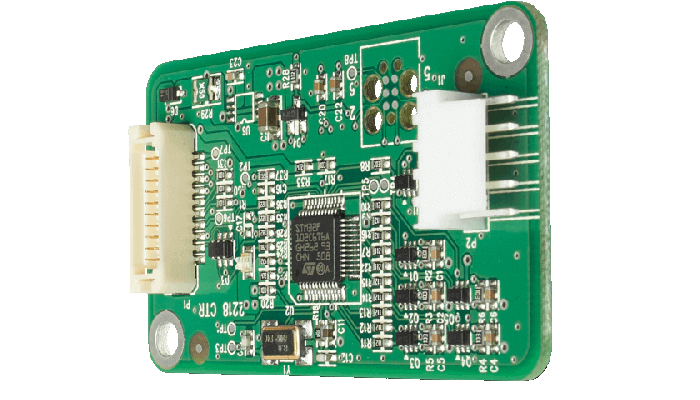

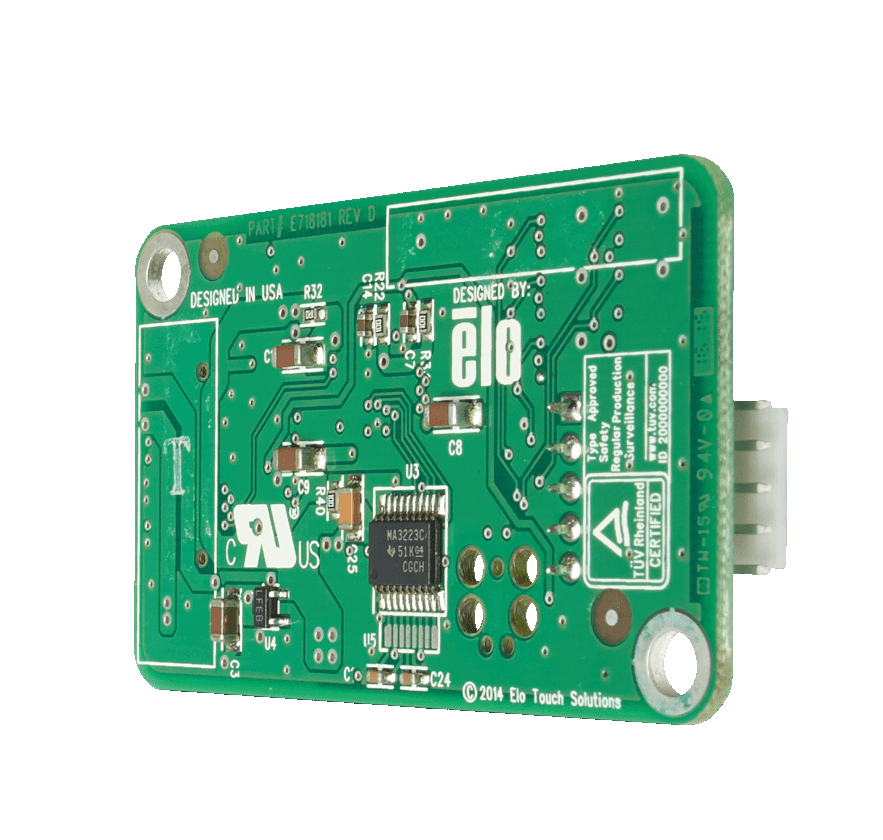

AccuTouch® 2218 Series Controller
Overview
The Elo Touch Solutions 2218 series controller is designed to work specifically with AccuTouch resistive touchscreens. Building technology with coordinating components enables a much smoother design and user experience.
 |
Works two waysThe 2218 combo controller works through a serial interface or via USB. It is a full-speed, self-powered, USB device when USB is used. The controller comes in both a "standard" friction-lock touchscreen connector and one with a positive "latching" touchscreen connector. |
Fully OptimizedElo’s 2218 controller was designed and manufactured to work specifically with AccuTouch resistive screens for optimal performance in an efficient, costs-effective solution. The 2218 uses Elo's COACh® V controller chip which is also available separately. |
 |
Specifications
-
Technical
Part Number(s)
E329179
Technology
accutouch
Number of Touches
1
Input Methods
Finger
Gloved hand
Passive stylusDimensions
60mm x 35mm x 8mm
Surface Treatment
clear
Input Voltage
5V +/- 10%
Report Rate
10ms
Baud Rate
For RS232: 9600 (default) and 19200
Current - Operating Mode
25mA Typical
Operating Temperature
-40°C to 85°C
Storage Temperature
-65°C to 125°C
Humidity
10% to 90% RH, (Non Condensing)
Warranty
2-year
Controller Cables
Serial cable: P/N D16890-000
USB cable: P/N D38640-000
Dual serial/USB cable: P/N D40022-000
