IntelliTouch® Surface Acoustic Wave, Zero-Bezel (Discontinued April 2024)
How to Buy

Overview

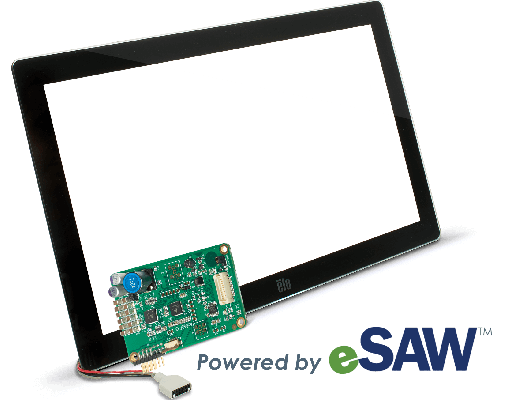

Elo has revolutionized Surface Acoustic Wave technology with eSAW. Built into Elo’s latest 3200 series advanced signal controller, eSAW offers industry leading touch sensitivity of 4x greater than its predecessor. Combining the enhanced touch performance of eSAW with the benefit of the optical clarity of a clear glass IntelliTouch® SAW touchscreen, yields a high performance 2-touch solution at a price well below that of traditional projected capacitive (PCAP) touchscreen.

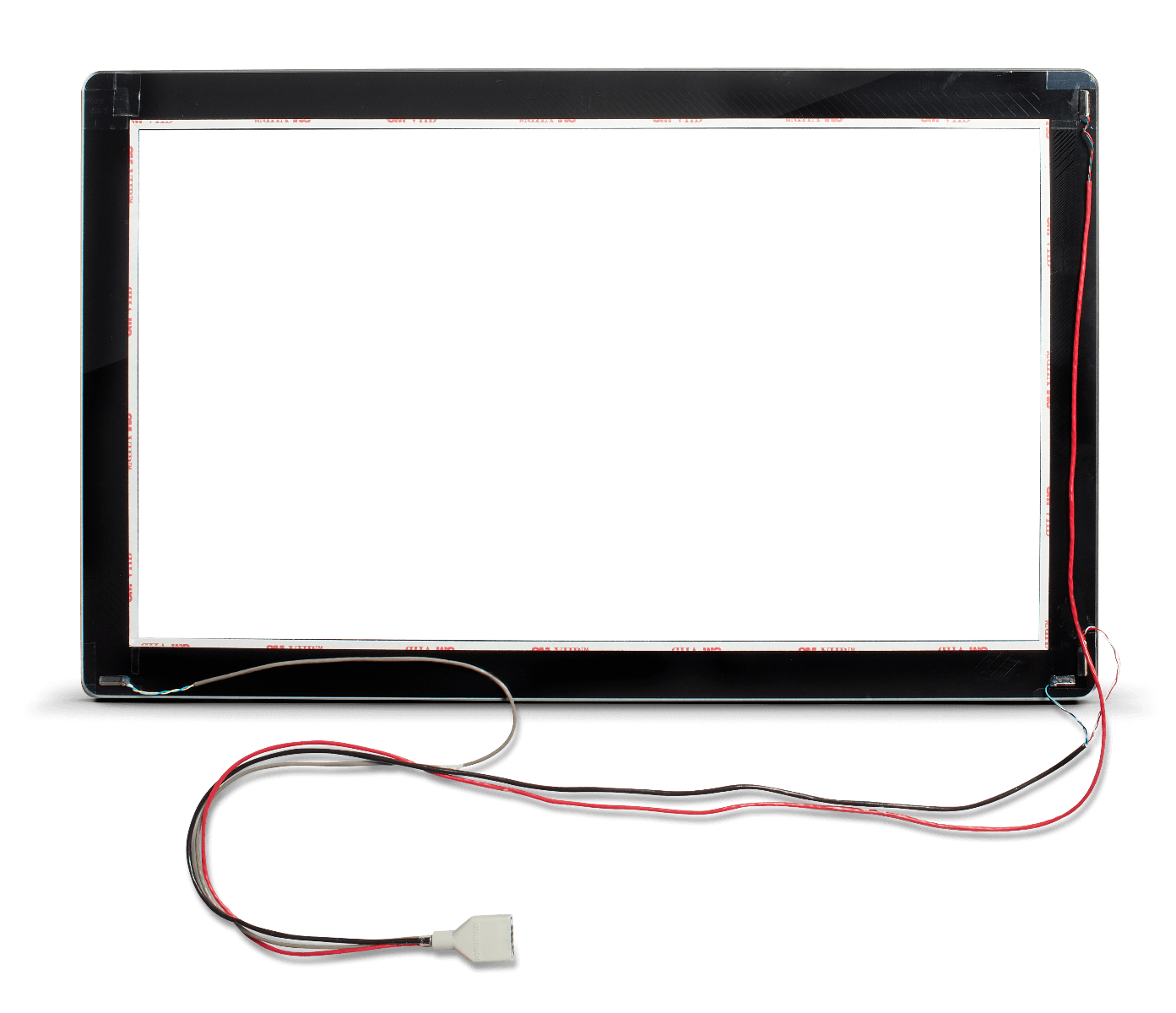

IT-Zero
Superior clarity and performance

SAW touchscreen technology delivers superior image clarity, resolution, light transmission, and reliability because it utilizes clear glass that continues to work even if scratched. There are no coatings, plastic films or moving parts to wear out or be damaged. The active area of the touchscreen is resistant to chemicals such as acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, and vinegar.
Quality is built in

The stable, drift-free operation of Surface Acoustic Wave touchscreen technology provides an accurate touch response measured on three axes using a finger, gloved hand, or passive stylus. Elo’s sensitive touch response recognizes location and amount of pressure applied. Elo has tested IntelliTouch touchscreens to more than 50 million touches in one location without failure, using a stylus simulating a finger.

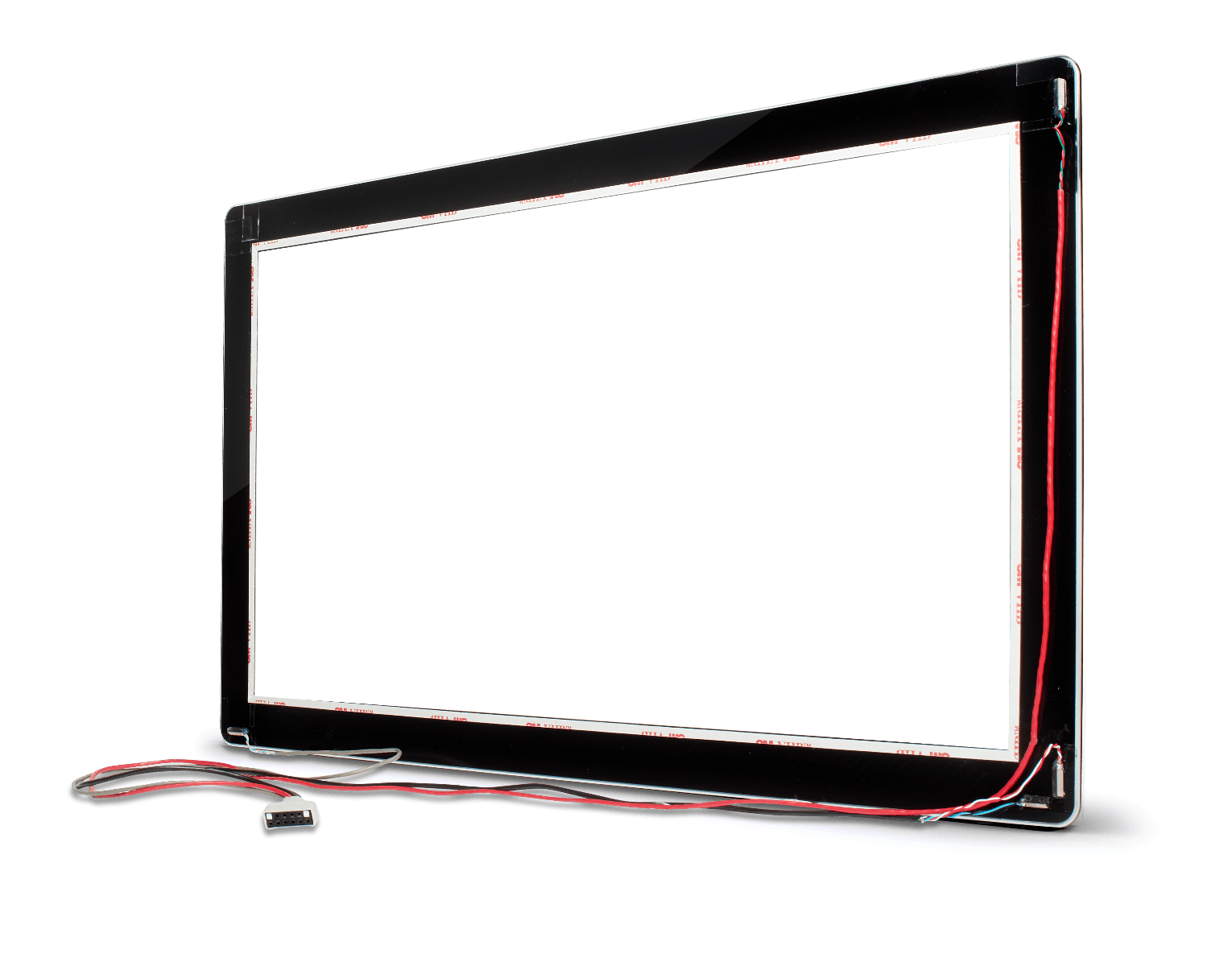

IT-Zero

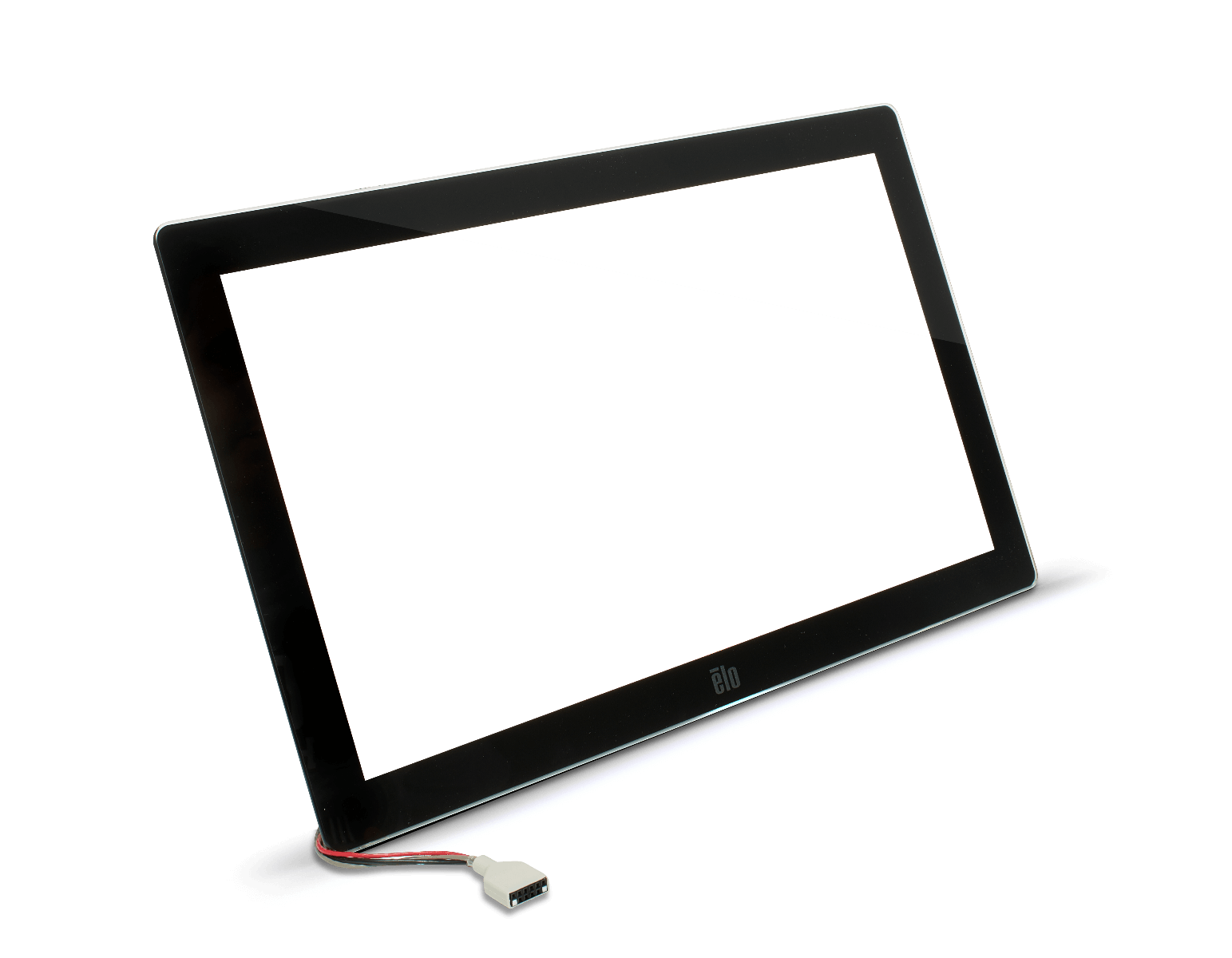

IT-Zero
Customizable

Customization capabilities include logos, clear icons, border buttons, and other enhancements can be added during the design cycle. IntelliTouch can scale across a wide range of screen sizes, without performance degradation.
Factory Video

Elo’s new state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.

Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.



Applications
  • Desktop touchmonitors and all-in-one touchcomputers
  • Point-of-sale (POS) terminals
  • Gaming and lottery terminals
  • Point-of-information kiosks
  • Self-service/Self-automation
  • Public environments such as hotel lobbies, office buildings, auto dealerships, bank branches, gaming casinos, healthcare waiting rooms, retail stores and train stations

Specifications

  • Technical

    Technology

    esaw

    Number of Touches

    2

    Input Methods

    Finger
    Gloved hand
    Passive stylus

    Dimensions

    controller dimensions in inches

    Light Transmittance

    ≥90%

    Haze

    <1%

    Overall Thickness

    2.8-10mm

    Surface Treatment

    clear

    Durability

    Surface durability is that of glass, Mohs’ hardness rating of 6.5

    Sealability

    IntelliTouch Zero-Bezel touchscreen has been successfully integrated by integrators

    Resolution

    6.19 points per mm typical (A/D sampling capability is extended by pattern recognition software)

    Positional Accuracy

    Error is not greater than 2.5mm and typically much less with calibration to display image

    Touch Activation Force

    under 1 ounce (15 grams) typical

    Operating Temperature

    -20°C to 70°C (Non Condensing)

    Storage Temperature

    -40°C to 85°C (Non Condensing)

    Humidity

    60C at 80% RH for 240 hours

    Warranty

    3-year

    Controller Cables

    Serial cable: P/N D16890-000
    USB cable: P/N D38640-000
    Dual serial/USB cable: P/N D40022-000
