15-inch I-Series for Android
with Android Open Source (2.0)
I-Series 2.0
for Android™
The I-Series 2.0 for Android is one of the most versatile product lines on the market. Available in white and black, the AiO solution offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, price-checker, wayfinding, corporate and hospitality environments.
The I-Series combines commercial-grade reliability with the powerful Qualcomm® Snapdragon™ processor. Delivering 2x the performance of its predecessor, the I-Series brings it all together with an integrated TouchPro® PCAP 10-touch display, Android 7.1 (Nougat) and optional Power-over-Ethernet (POE) – all in a compact responsive all-in-one (AiO) computer.
EloView®, the secure platform for remote content deployment and device management, makes deploying and managing the I-Series easy. Since the I-Series and EloView are designed and tested by the same manufacturer, all the features are in sync and the devices set up automatically when connected. Whether you need to push new content to a device or simply need to change the screen brightness, EloView is ready.
I-Series for Everything
The Elo I-Series 2.0 offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Interactive Point of Information for Entertainment
When looking for a solution for interactive digital signage, we wanted something super-easy to use, yet tough enough for everyday interactions by our visitors in this museum environment. The attraction’s decision to use technology to enhance the visitor experience is clearly a success. In the first year there were approximately 850,000 individual engagements that totaled over three million media plays.
Shelby Stephenson
Public Relations and Social Media Manager at Johnny Morris' Wonders of Wildlife National Museum & Aquarium
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
More Performance
-
Processor
I-Series 2.0 for Android brings the blazing fast Qualcomm Snapdragon 625 octa-core processor with 2x the performance compared to its predecessor.
-
Memory / Storage
I-Series 2.0 for Android offers a Standard Model with 3GB of RAM and 32GB of storage and a Value Model with 2GB of RAM and 16GB of storage.
-
Operating System
I-Series 2.0 for Android features Android 7.1 (Nougat) giving you the capability to use the latest Android OS features.
-
Display
Available in three different sizes - 10-inch, 15-inch and 22-inch all with TouchPro® PCAP touchscreen technology enabling multi-touch responses with up to 10-touches simultaneously.
Features to Match Your Needs

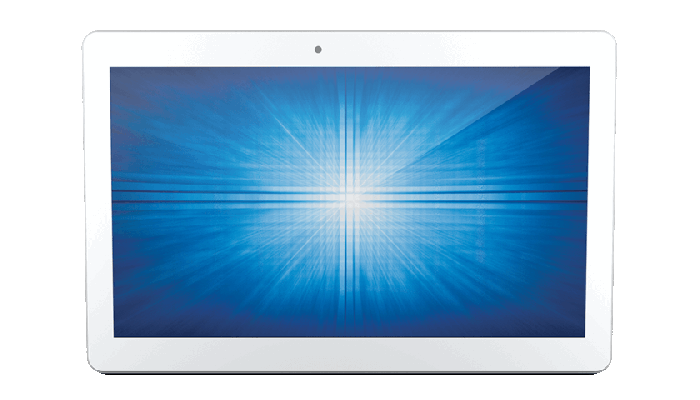

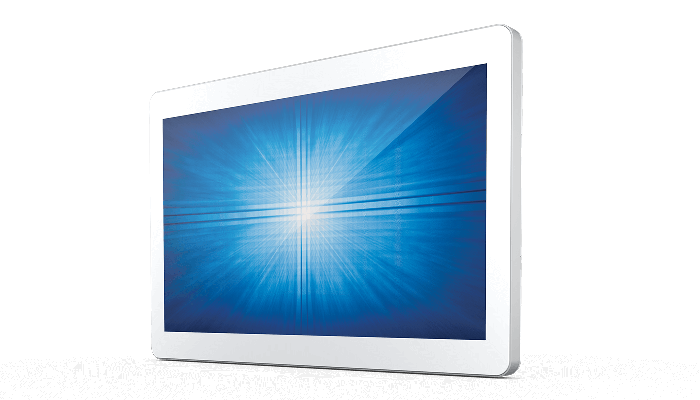

Does black or white match your design? All I-Series 2.0 models are offered in black (standard) or white (built-to-order). Do you need to connect peripherals to your device? How much memory and storage capacity do you need? Standard and Value models are offered in the 10-inch and 15-inch sizes, both providing the same performance and processor. What is the difference? The standard model offers more memory and storage, ports for peripheral mounting to the device, and a webcam.
-
Use Cases for
Standard VersionPoint of Sale
Self-Service Checkout
Kiosk (with peripherals)
Price Checker
Drivers License Scanner
Self-Check-In Kiosks -
Use cases for
Value VersionInteractive Shelf Signage
Product info display
Meeting scheduler
Kiosk (without peripherals)
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
-
Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example – adding the EasyDL plugin enables users to read government-issued identification cards in US and Canada.
-
MSR
The Magtek 3-track encryptable MSR offers remote key injection. Using the Elo peripheral test app, you decide the security level – use default security level 2 or encrypt to level 3 to read sensitive credit card data.
-
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
-
EMV
The ability to take payment is essential to complete a transaction. The I-Series offers compatible EMV cradles to securely mount an EMV Payment device directly to the stand.
Power over Ethernet
I-Series 2.0 doesn’t need a power adapter to connect.
The new Power-over-Ethernet (POE) module is an optional accessory you can pair with all I-Series 2.0 Models. All you need is a POE capable network.
Where power drops can be expensive, running low voltage network cables allows for a lower cost solution. POE represents an easy to implement solution for shelf signage and AV applications like conference room schedulers or AV control displays.
EloView®
A revolutionary interactive platform connecting hardware and software that is easy to use, quick to deploy and affordable. EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView delivers.
EloView is a software-as-a-service (SaaS) platform designed to simplify and automate the configuration and deployment of interactive displays across multiple locations. Use EloView to deliver your marketing content and create attractive, engaging, and educational public-facing interactive experiences.
Virtual GPS via EloView
Often, applications depend upon the GPS location of individual devices to understand what content to display. But GPS may not work indoors and can be expensive to add to a device that spends most of its life fixed to a specific location.
With EloView, you can set the location (latitude/ longitude) of the device remotely allowing the application to sync with the GPS coordinates and run localized content.
Built-to-Last
The I-Series AiO Touchscreen Signage displays deliver the quality and reliability Elo is known for and are backed by our 2-year standard warranty with an optional extension to 5-years. We design and build the complete solution, with touch integrated from the start.
Specifications
-
Technical
Part Number(s)
Standard Models:
PCAP Black (Worldwide) - E611296
PCAP White (Worldwide - MTO) - E614592
Value Models:
PCAP Black (Worldwide) - E611480
PCAP White (Worldwide - MTO) - E614786Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Qualcomm® Snapdragon™ APQ8053 2.0GHz Octa-Core Processor
Memory (RAM)
Standard Models: 3GB DDR3L
Value Models: 2GB DDR3LStorage
Standard Models: 32GB SSD
Value Models: 16GB SSDOS
Android 7.1 with EloView content deployment and management
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344mm x 194mm
Resolution
Full HD 1920 x 1080 @ 60Hz
Number of Colors
6-bit (262,000)
Brightness (typical)
Standard Models:
LCD Panel: 300 nits
PCAP: 258 nits
Value Models:
LCD Panel: 220 nits
PCAP: 189 nitsResponse Time-total (typical)
Standard Models: 30 msec
Value Models: 12 msecContrast Ratio
Standard Models: 800:1 / Value Models: 500:1
Viewing Angle
Standard Models - Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Value Models - Horizontal: ± 45° / Vertical: 20° and 40°I/O Ports
Standard Models:
Micro HDMI output
Micro SD slot
Ethernet 1x LAN (Gigabit)
GPIO
1x USB 3.0 support, 4x microUSB
Value Models:
Ethernet 1x LAN (Gigabit)
1x USB 3.0 support
Micro SD slot
GPIOPeripheral Mounting
Standard Models: 4x microUSB side ports available

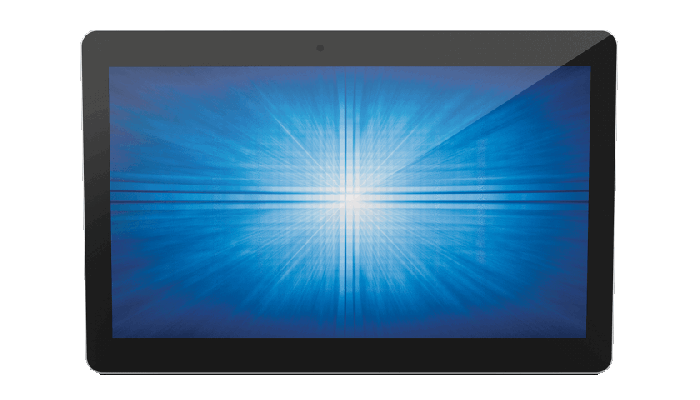

Value Models: Peripheral mounting is not availableWebcam
Standard Models Only:
Auto exposure
Auto Gain Control
Sharpness/Brightness/Contrast control
Max resolution: 1920 x 1080 30fpsWireless
802.11b/g/n/ac + Bluetooth 4.1
Audio Ports
Standard Models Only: Built-in microphone
Microphone and headphone support is available via an optional the USB adaptor (Vantech NBA-120U)Speakers
Two 2W internal speakers
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box - E514304)Power Consumption (Typical)
ON: 13W
OFF: 0.4W
SLEEP: 4.5WDimensions
15.23" x 9.77" x 1.11" / 386.74mm x 248.17mm x 28.3mm
Shipping Box Dimensions
18.50" x 11.81" x 5.9" / 470mm x 300mm x 150mm
Weight (Unpackaged)
3.5 lbs / 1.59kg
Weight (Packaged)
7.20 lbs / 3.27 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL, FCC (US)
IC (Canada)
CE (Europe)
CB (International)
CCC, SRRC, China RoHS (China),
VCCI, MIC (Japan)
RCM (Australia)
KCC (Korea)
NOM (Mexico)
BIS (India)
ANATEL (Brazil)
BSMI (Taiwan)
EAC (Russia)Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated

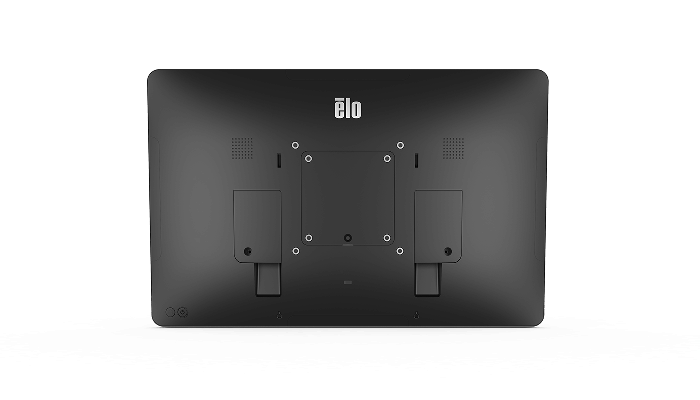

Mounting Options
VESA 75mm x 75mm
VESA 100mm x 100mmWarranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E819394
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
2 year warranty coverage + AUR - Elo P/N: E819985
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD
Power Cables
North American
EuropeanWhat's in the Box
I-Series 2.0 AiO
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
GPIO Cable - Elo P/N: E211544
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
POE Module Kit - Elo P/N: E615169
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Wall Mount Kit (low profile) – Elo P/N: E802400 (Not compatible with POE installed)

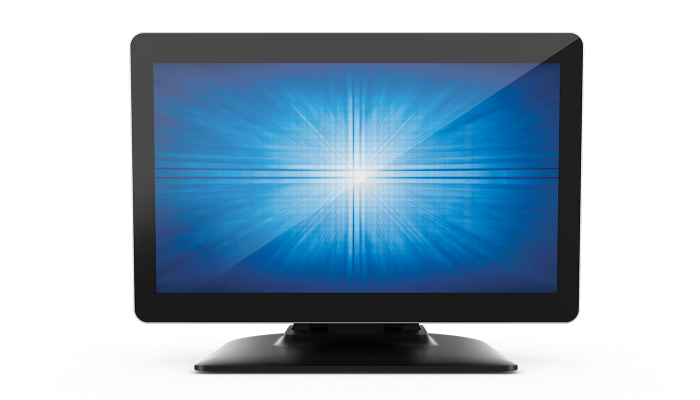

Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069

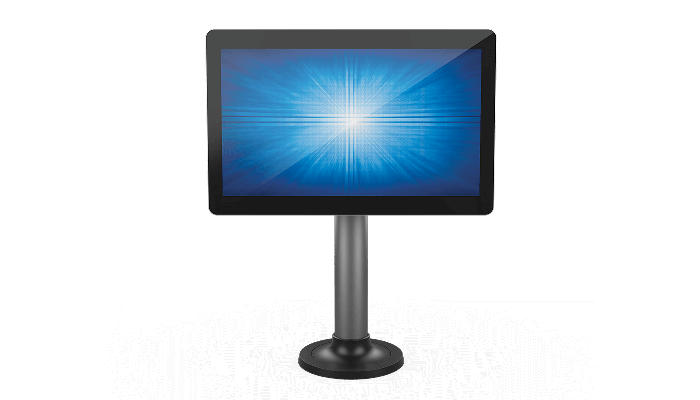

Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Expansion Module - Short Cable Kit - Mounted on the back of the I-Series - Elo P/N: E412240
Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781
Wallaby™ POS Stand (Black) - Elo P/N: E949536
Wallaby™ POS Stand (White) - Elo P/N: E353758
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
