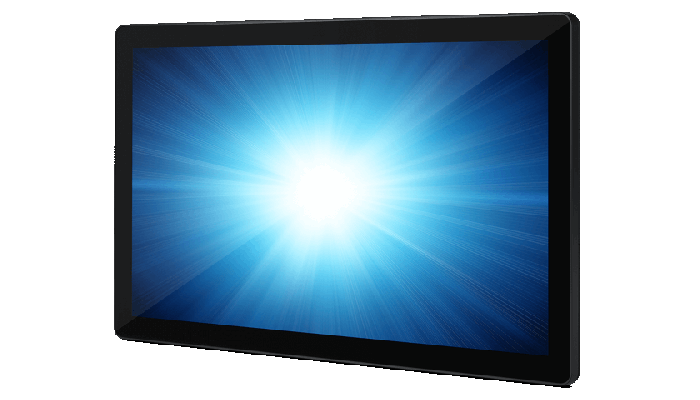

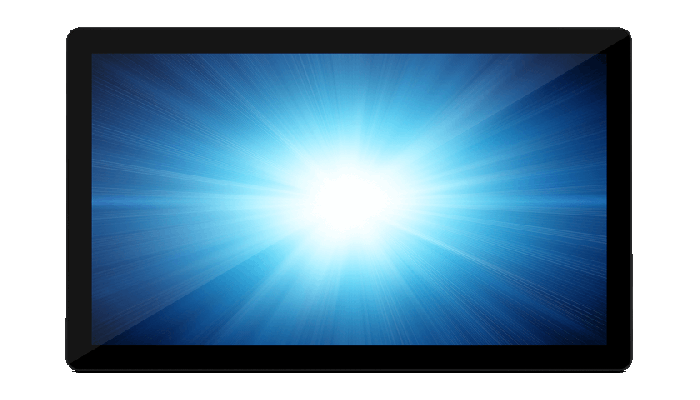

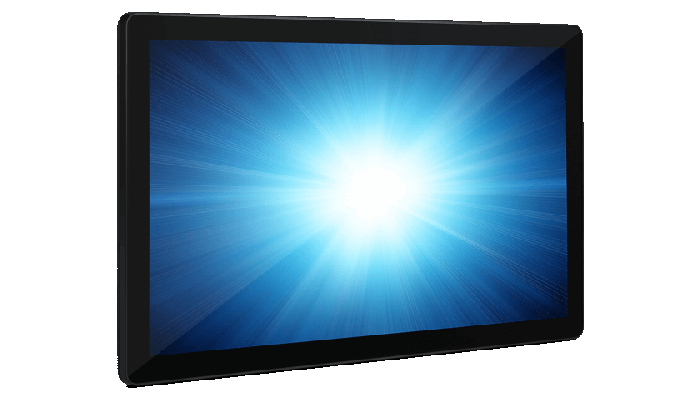

22-inch I-Series 2 with Intel®
How to Buy

I-Series 2 with Intel®

Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

I-Series with Intel

Endless Versatility

The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

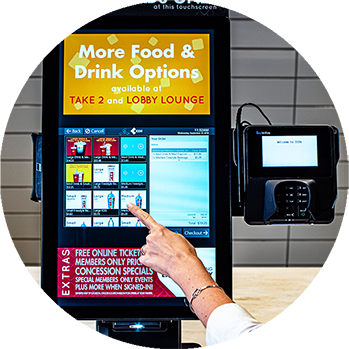

Self-Service Self-Service
Point of Sale Point of
Sale
Kitchen Display Systems Kitchen Display
Systems
Conference Room Management Conference Room
Management
Industrial Automation Industrial
Automation

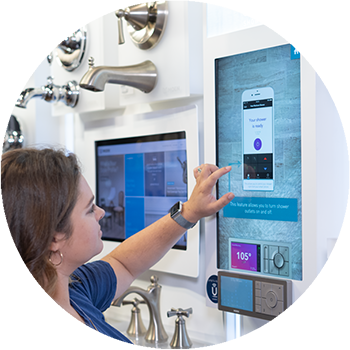

U by Moen Controller

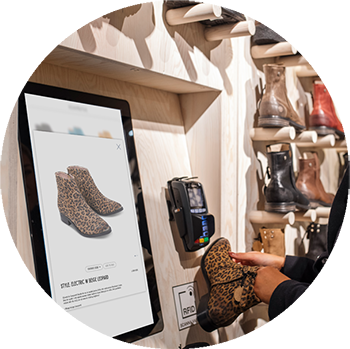

Retail
Restaurants

Feature-rich
Intel platform.

  • Display - Available in 15-inch and 22-inch screen sizes
  • OS - Windows 10, ChromeOS Flex or No OS (for use with Linux)
  • Processor - 9th generation Intel processor
  • Memory/Storage - Up to 8GB of RAM and 128GB SSD
  • Network - Wi-Fi 802.11 b/g/n/ac supporting 2.4Ghz & 5Ghz bands, ethernet & BLE5.0

Windows, ChromeOS
Flex or Linux.

Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Order now
Configure with Elo Edge Connect™

Configure with Elo Edge Connect™

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Learn more
Barcode Scanner

Barcode Scanner
Status Light

Status Light
EMV

EMV
MSR

MSR
Fingerprint Scanner

Fingerprint Scanner
Configure with Elo Edge Connect™

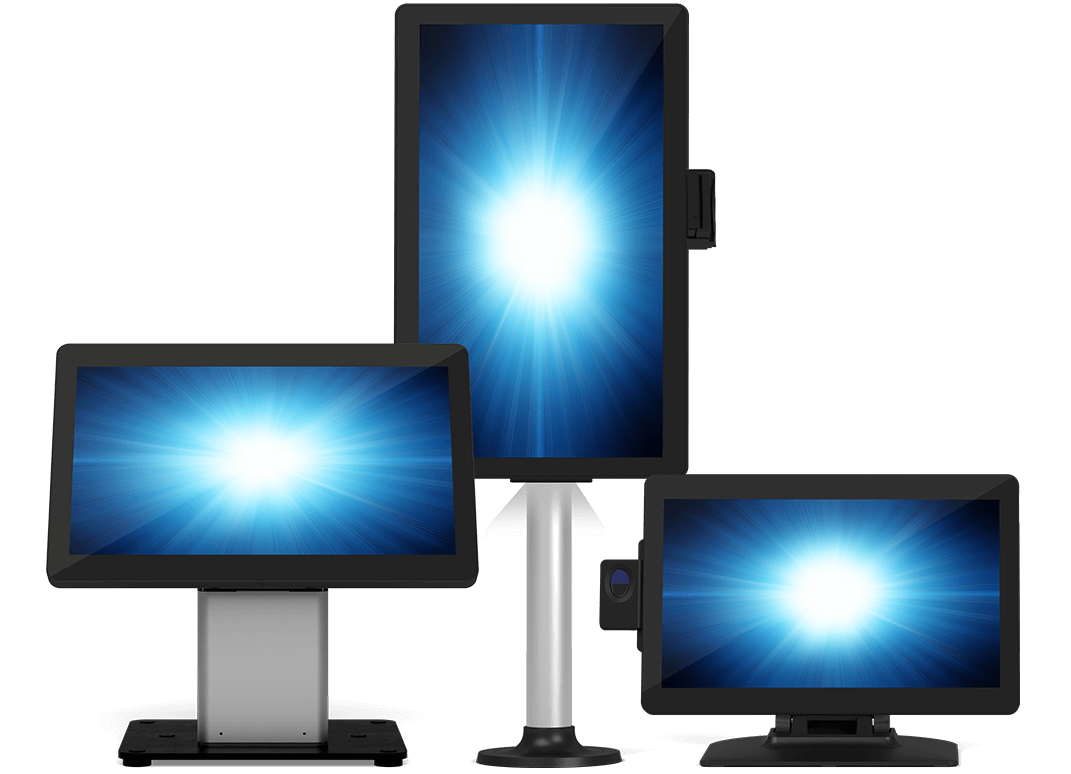

Stands & Mounts

With a standard VESA mount, we give you the flexibility to mount our products however you want.

Pole Mount Pole Mount

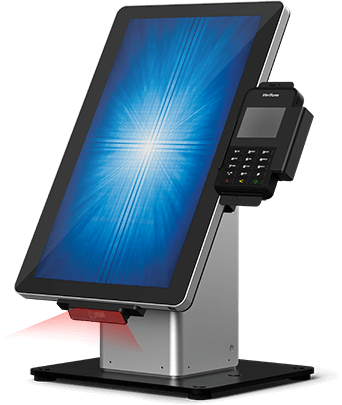

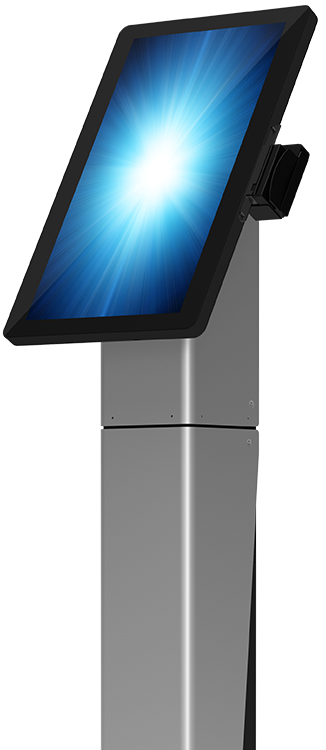

Self-Service Stand Self-Service Stand
Tabletop Stand Tabletop Stand
Wall & Shelf Mount Wall & Shelf Mount
Get Peace of Mind With EloCare℠

Get Peace of Mind With EloCare℠

EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Specifications

  • Technical

    Part Number(s)

    Celeron (J4125), Win10, 128GB SSD, 4GB RAM - E692640
    Celeron (J4125), ChromeOS Flex, 128GB SSD, 4GB RAM - E291924
    Celeron (G4900T), ChromeOS Flex, 128GB SSD, 8GB RAM - E552046
    Celeron (J4125), No OS, 128GB SSD, 4GB RAM - E692837
    i3, Win10, 128GB SSD, 8GB RAM - E850591
    i3, ChromeOS Flex, 128GB SSD, 8GB RAM - E292123
    i3, No OS, 128GB SSD, 8GB RAM - E850387
    i5, Win10, 128GB SSD, 8GB RAM - E693022
    i5, Win10, 256GB SSD, 8GB RAM - E948592
    i5, ChromeOS Flex, 128GB SSD, 8GB RAM - E292309
    i5, No OS, 128GB SSD, 8GB RAM - E693211

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Celeron: Intel Celeron Processor J4125 (4M Cache, up to 2.7 GHz) or Intel Celeron G4900T Processor (2M Cache, up to 2.9 GHz)
    i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
    i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

    Chipset

    Celeron: N/A or Intel H310 Express
    i3: Intel H310 Express
    i5: Intel Q370 Express

    Graphics

    Celeron: Intel UHD Graphics 600 or Intel UHD Graphics 610
    i3 & i5: Intel UHD Graphics 630

    BIOS

    AMI

    Memory (RAM)

    Celeron: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum on 2 slots)

    NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

    i3 & i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

    NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    128GB M.2 SATA SSD 72 TBW

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    TPM

    2.0

    Active Management Technology (AMT)

    Celeron: N/A
    i3 & i5: Active Management Technology (Intel AMT 11.0) Support

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    18.74" x 10.54" / 476.0 mm x 267.8 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    TouchPro PCAP: 225 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    USB Ports

    1 x USB 3.0
    4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

    Bluetooth

    Bluetooth 5.0

    Audio Ports

    1 x 3.5mm line out

    Speakers

    2 x 2W internal speakers

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit
    Optional - Windows 10 Professional English 64-bit
    ChromeOS Flex

    Languages

    Windows 10 - 36 Language groups

    Power Supply

    External USB-C power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 100W

    Power Consumption (Typical)

    Celeron: 39 W
    i3: 77 W
    i5: 83 W
    Sleep: < 5W
    Off: < 0.5W

    Dimensions

    20.7" x 12.57" x 2.07" / 525.9 mm x 319.2 mm x 52.6 mm

    Shipping Box Dimensions

    24.61" x 7.72" x 17.2" / 625 mm x 196 mm x 437 mm

    Weight (Unpackaged)

    11.5 lbs / 5.2 kg

    Weight (Packaged)

    15.4 lbs / 7 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95% (38.7°C max wet bulb temperature)

    Regulatory approvals and declarations

    UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, RCM/R-NZ, VCCI, Argentina S-Mark, CCC
    Korea KCC for i5 Models only
    India BIS for i2 Models only

    Real-Time Clock

    CR2032 lithium metal battery

    MTBF

    50,000 hours demonstrated

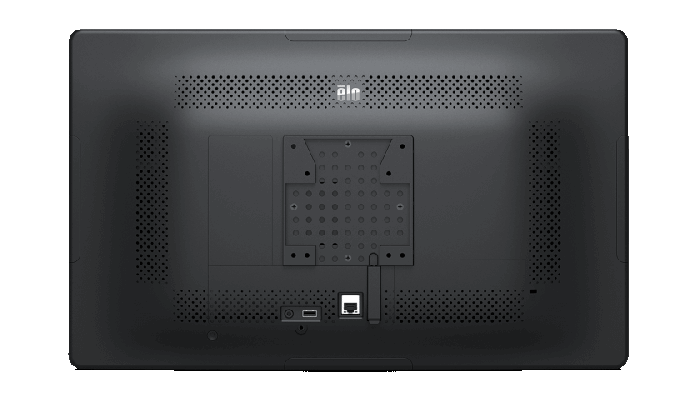

    Mounting Options

    75mm or 100mm VESA mount

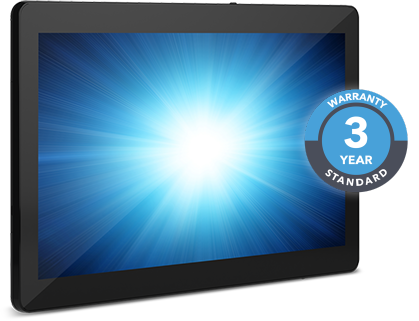

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    Sealability

    Touchscreen sealed to sub-bezel
    Touchscreen sealed to LCD

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components
    Kensington lock

    What's in the Box

    I-Series 2.0 for Windows Touchcomputer
    North America Power Cord
    European Power Cord
    Power Adapter - 100W
    Cable cover locking screw
    Quick Install Guide

    Upgrade Options

    4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186
    8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375
    16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989
    M.2 SATA 128GB SSD – Elo P/N: E206352
    M.2 SATA 256GB SSD – Elo P/N: E206556
    Note: Celeron SKUs only support 4GB DDR4 per slot

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    3D Camera - Elo P/N: E134699
    Webcam - Elo P/N: E201494
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
    100W USB-C power supply - Elo P/N: E369922
    USB Hub and mounting bracket - Elo P/N: E350807
    Right angle RJ LAN cable adaptor kit - Elo P/N: E350616
    EloPOS Expansion Module (with a 6-ft USB-C cable) – Elo P/N: E263603
    100mm Adaptor Kit – Elo P/N: E388675
    Right angle 6ft USB-C cable kit – Elo P/N: E667197
    USB-C Hub & Bracket kit – Elo P/N: E350996
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
    Wallaby™ Pro countertop stand – Elo P/N: E989127
    Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512
    Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705
    Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079
    RJ45 to DB9 cable kit - Elo P/N: E641484
