1002L 10" Touchscreen Monitor
How to Buy

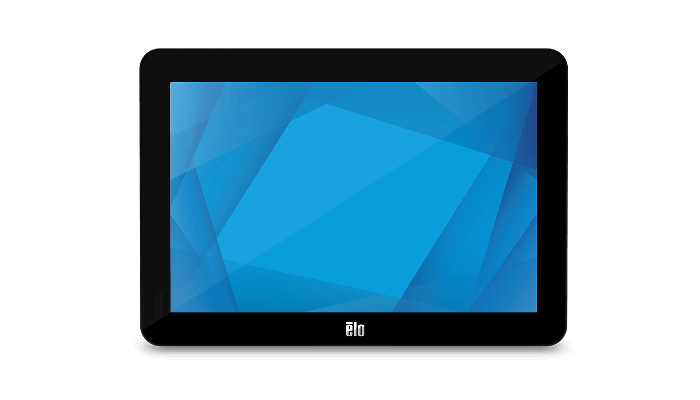

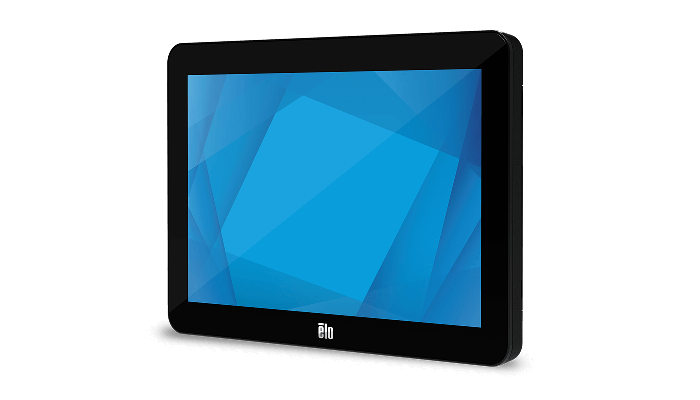

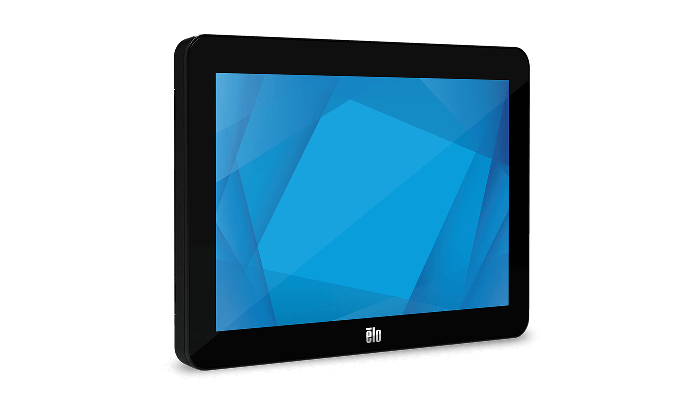

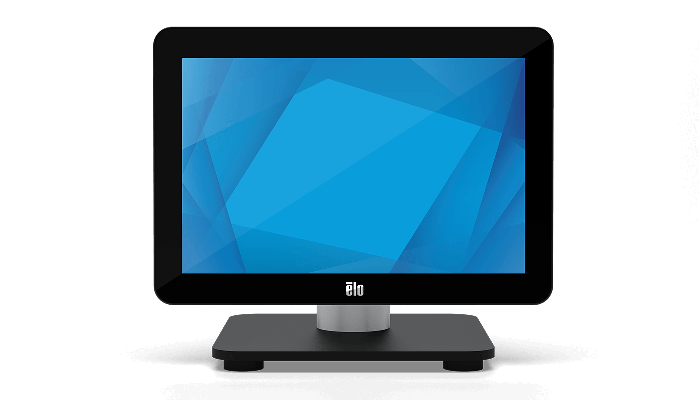

Elo’s 1002L Touchscreen Monitor

Elo’s 1002L
Touchscreen Monitor

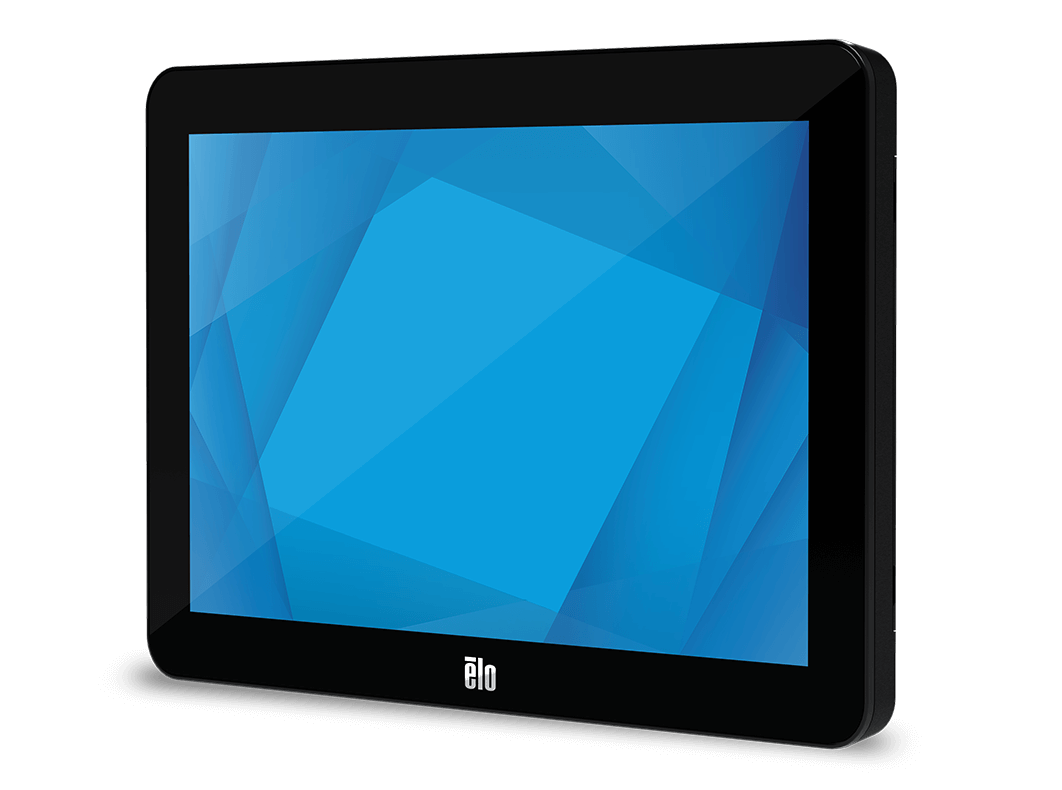

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

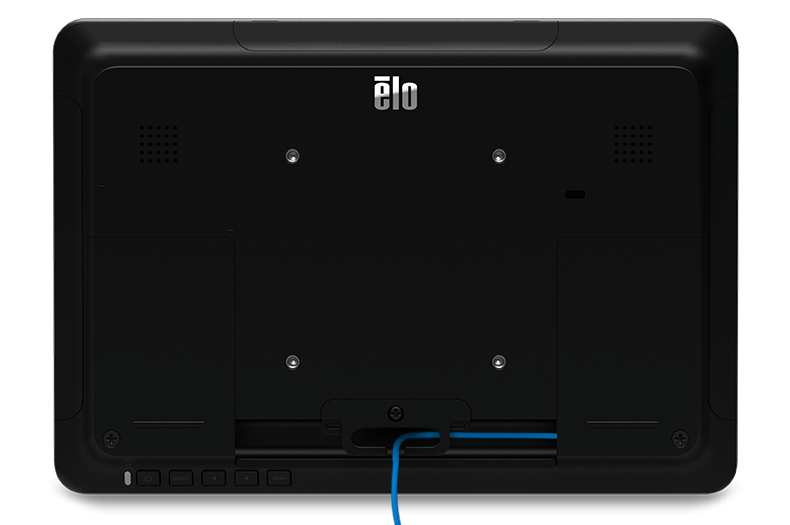

Single Cable Connection

Single Cable Connection

The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

1002L

One for You.
One for Your Customers.

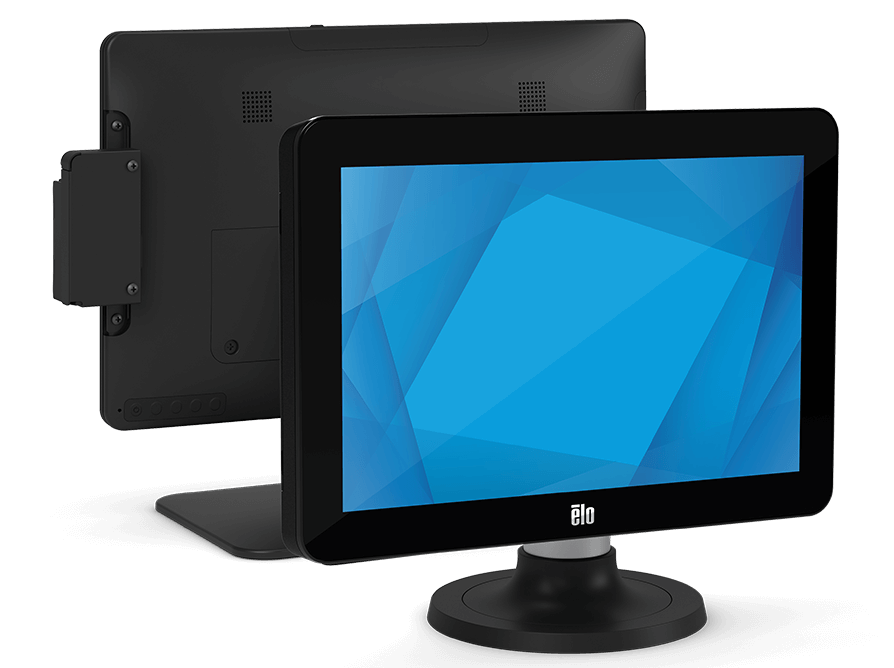

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

  • Retail

    Retail

  • Hospitality

    Hospitality

  • Government

    Government

  • Restaurant

    Restaurant

  • Industrial

    Industrial

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

  • EMV

    EMV Cradles

    The ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

  • Barcode Scanner

    Barcode Scanner

    Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

  • MSR

    MSR

    Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

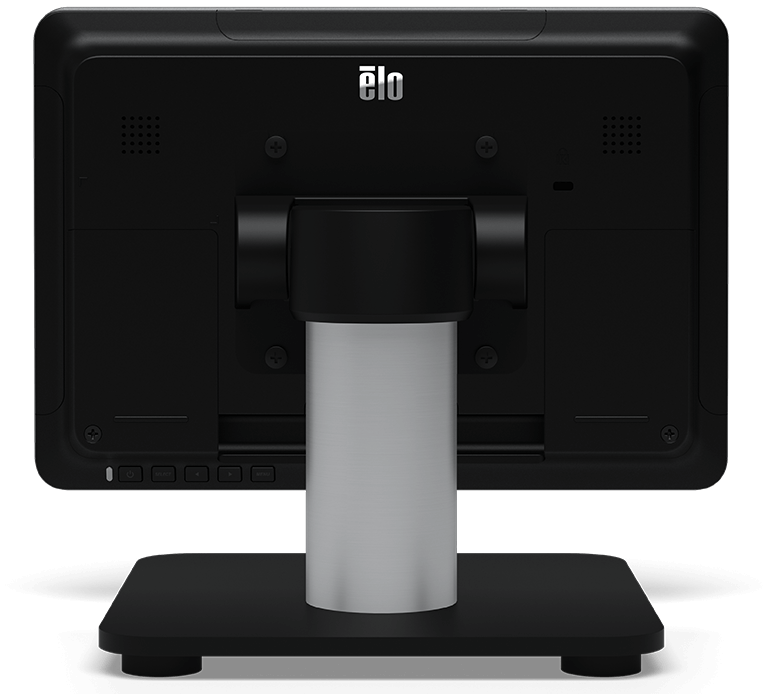

Mount with Flexibility

Mount with Flexibility

Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Brilliant Displays from 7 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Explore all touchscreen monitors

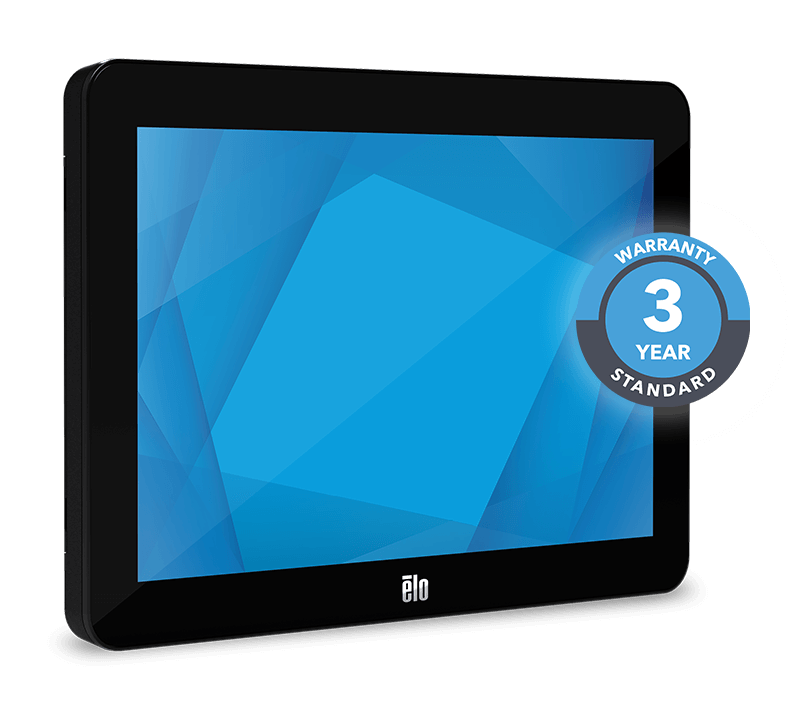

Built-to-Last

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

Specifications

  • Technical

    Part Number(s)

    PCAP (Worldwide) - E155834
    Non-Touch (Worldwide) - E324341

    Enclosure Color

    Black

    Touch Technology & Capacity

    Non-Touch
    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    10.1'' diagonal, Active matrix TFT LCD (LED)

    Monitor Thickness

    1.12" / 28.45 mm panel depth

    Aspect Ratio

    16:10

    Active Area

    8.54" x 5.34" / 216.96 mm x 135.6 mm

    Resolution

    1280 x 800

    Other Supported Resolutions

    640 x 480 @ 60Hz
    800 x 600 @ 60Hz
    1024 x 768 @ 60Hz
    1280 x 800 @ 60Hz
    1920 x 1080 @ 60Hz
    1920 x 1200 @ 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Number of Colors

    262,000

    Brightness (typical)

    LCD panel: 350 nits
    PCAP + DC Power: 315 nits
    PCAP + USB-C 5V power: 200 nits

    Response Time-total (typical)

    29 msec

    Contrast Ratio

    800:1

    Touch Interface

    USB

    Surface Treatment

    Anti-glare

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    I/O Ports

    1 x USB Type-C
    1 x Audio jack (Line-in)
    1 x VGA (Micro-HDMI female connecter)
    1 x HDMI
    1 x 12V D/C input
    3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

    Speakers

    2 x 2W internal speakers

    Video_1

    Analog VGA
    HDMI
    USB Type-C (support DP Alt mode)

    Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues

    Input Video Frequency

    Horizontal: 31.5 - 80 KHz
    Vertical: 60 Hz

    Power

    Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A

    Option 2: External DC Adapter 12V/36W in box
    Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
    Monitor input voltage range: 12VDC +/- 5%
    Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON: 7.43 W
    SLEEP: 1.26 W
    OFF: 0.2 W

    Monitor Dimensions (without Stand)

    10.03" x 6.99" x 1.14" / 254.80 mm x 177.50 mm x 29.00 mm

    Shipping Box Dimensions

    12.4" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm

    Weight (Unpackaged)

    1.95 lbs / 0.8842 kg

    Weight (Packaged)

    4.02 lbs / 1.8266 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

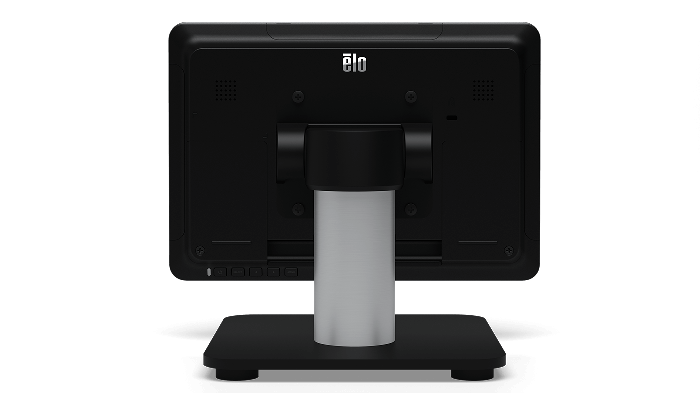

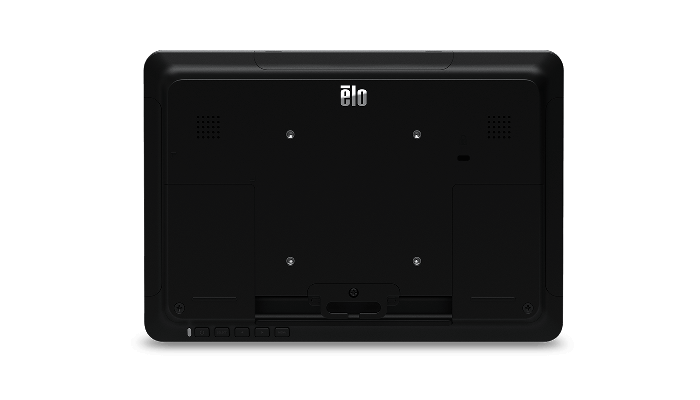

    VESA 4-hole 75mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada cUL, IC
    Europe CE
    United Kingdom UKCA
    Japan VCCI
    United States UL, FCC
    China CCC
    Korea, KCC, e-standby
    Australia RCM
    Mexico NOM
    Taiwan BSMI
    International CB
    RoHS, China RoHS, WEEE, REACH
    India BIS
    Russia EAC

    Ingress Protection

    IPX1 for front side

    Impact Protection

    IK05

    What's in the Box

    Touchmonitor
    HDMI cable
    USB Cable (USB Type-A to Type-C)
    Quick Install Guide
    EEI Label
    Power brick
    NA Power cable
    EU Power cable
    2 x cable clamps
    2 x tie wraps
    3 x screws (M3x8mm) for cable clamps
    2 x screws (M3x10mm) for cable doors

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    PCAP Stylus Pen - Elo P/N: E066148
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    Webcam - Elo P/N: E201494
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
    Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
    Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
    Wallaby™ POS Stand (Black) - Elo P/N: E949536
    USB-C to USB-C Cable Kit – Elo P/N: E710364
    VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
    DVI-D to HDMI Cable Kit – Elo P/N: E538507
    1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables - Elo P/N: E408388
    Power Brick – 36W - Elo P/N: E593458
    Elo Backpack® 4 (Value Model) - Elo P/N: E393754
    Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
    North America Power Cable C5 - Elo P/N: E793990
    Australia Power Cable C5 - Elo P/N: E794186
    Europe Power Cable C5 - Elo P/N: E794376
    Korea Power Cable C5 - Elo P/N: E794574
    China Power Cable C5 - Elo P/N: E794756
    Taiwan Power Cable C5 - Elo P/N: E794957
    Japan Power Cable C5 - Elo P/N: E795147
    Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302
    Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E763022
